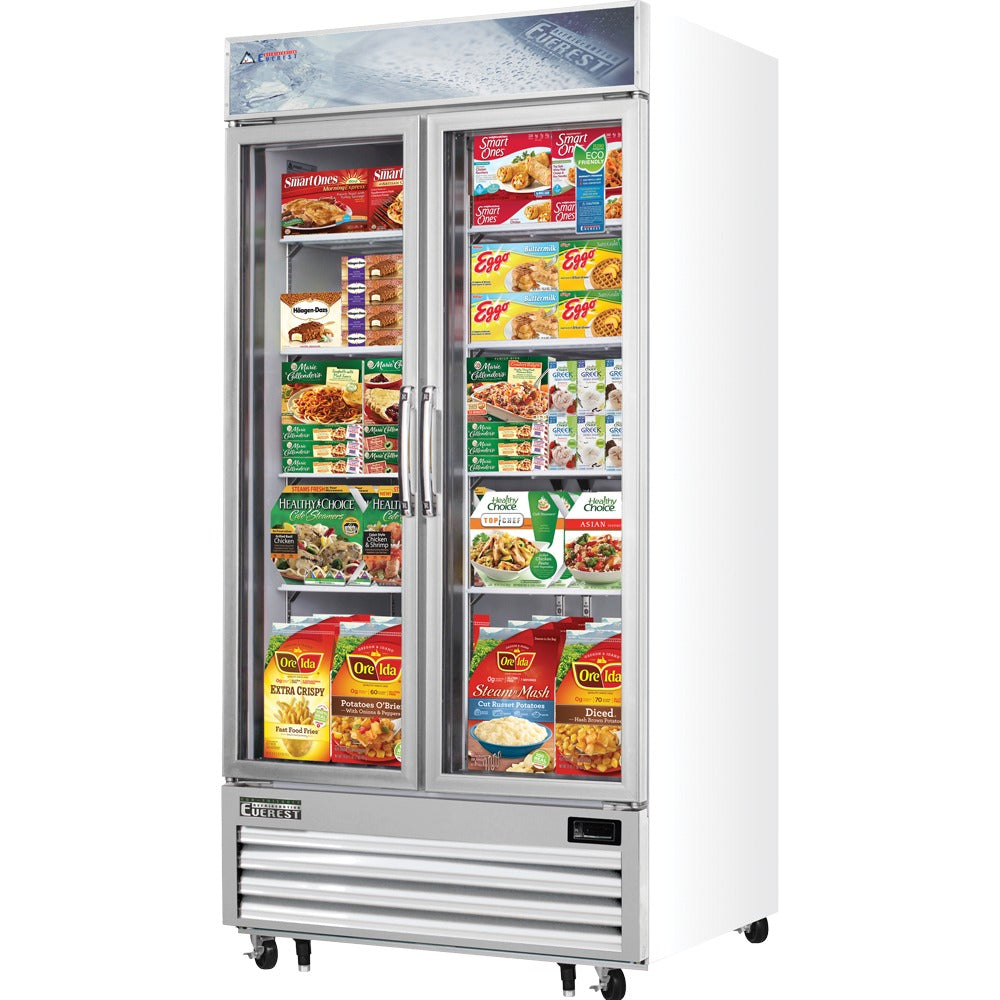

Everest EMGF36 41 In. Glass Door Merchandiser Freezer, 2 Swing Doors, 36 Cu. Ft., Bottom Mount Blizzard R290

The Everest EMGF36 is the two door midpoint of Everest's EM Series merchandiser freezers, facing 36 cubic feet of frozen product across eight lighted shelves in a 41 inch wide cabinet. A 1-1/4 HP bottom mount compressor drives 5,441 BTU per hour to keep ice cream hard at the -4°F factory preset, while each heated low-E glass swing door guards its own half of the display, so one customer's pint run does not warm the pizzas next door. Standard 5 inch casters with front locks make the cold aisle layout movable.

Bottom Mount Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing unit is a bottom mounted, self-contained Blizzard R290 cartridge with a 1 1/4 HP compressor rated at 5,441 BTU per hour, fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a freezer out of service while a refrigeration tech opens the circuit, a cartridge swap puts the display back to selling the same visit. The system runs natural, EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs, a discipline that matters at freezer temperatures. The condensate pan maintains itself with no external drain line or electric heater, which keeps the install down to a wall outlet, and a high performance auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings.

Two Heated Low-E Glass Swing Doors in Matte Aluminum Frames with Pre-Installed Locks

Frozen merchandising lives or dies on visible product, so the doors fight fog two ways: frame heaters prevent exterior moisture build up on the matte finish aluminum frames, and defroster strips keep the glass panes clear and fog free after every opening. The low emissivity double glass panes also reflect UV rays, so the compressors are not fighting radiant heat while customers browse. Each door self-closes through an adjustable torsion system for a positive seal, carries a high strength die-cast handle, and seals on a snap-in magnetic gasket that pops out for cleaning or replacement without tools. Pre-installed door locks secure the stock at close with no aftermarket hasp drilled into the frame. Because each door covers its own half of the case, one customer reaching for a pint does not pull the cold off the entire display.

36 Cu. Ft. Frozen Display Interior with Shielded LED Bar Lighting and 8 Adjustable Shelves

Inside, the 36 cubic foot compartment carries 8 epoxy coated steel wire shelves, four per section, with airflow guards, sitting on height adjustable stainless steel clips that reset in seconds when the frozen mix changes. Shielded LED bar lighting with its own on/off switch throws bright, high color light at low heat output, so packaging reads well without warming the box. A full-length air duct distributes cold air from top to bottom and an air circulation guard keeps the floor vents clear of product, so the bottom row freezes as hard as the top shelf. The white coated steel interior keeps product looking sharp, the stainless steel floor has rounded corners and a detachable drain plug for fast cleanups, 2.5 inch high density polyurethane insulation fills the walls, and the open spaced interior runs wall free between compartments.

Digital Controller Preset at -4°F with a Setting Range of -10°F to 54°F

A multi-function digital controller with an easy to read LED display ships factory preset at -4°F and adjusts across a setting range of -10°F to 54°F, deep enough to keep ice cream scoopable hard. Four 5 inch swivel casters come standard with locks on the front set, along with leg stabilizers, so the cabinet rolls into the cold aisle, locks down, and stays put. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 5 year compressor coverage, supported through its service agent network.

If the stock setup does not match your merchandising plan, Everest offers additional shelving, 3 inch swivel casters with locks, and height adjustable interchangeable legs from 3.5 to 6 inches.

Keep in mind this is a display freezer with a setting range of -10°F to 54°F, and the coated steel cabinet is merchandising equipment, not a stainless back of house reach-in. Two doors and 36 cubic feet carry a two category frozen set on a single compressor; a heavier frozen program moves to the twin compressor 48 cubic foot EMGF48, while a single novelty slot only needs the EMGF23. A fully opened door wants 50 1/2 inches of aisle to clear. Power is a 115V connection on a 9 foot cord, but the NEMA 5-20P plug requires a 20 amp receptacle rather than a standard 15 amp wall outlet.
