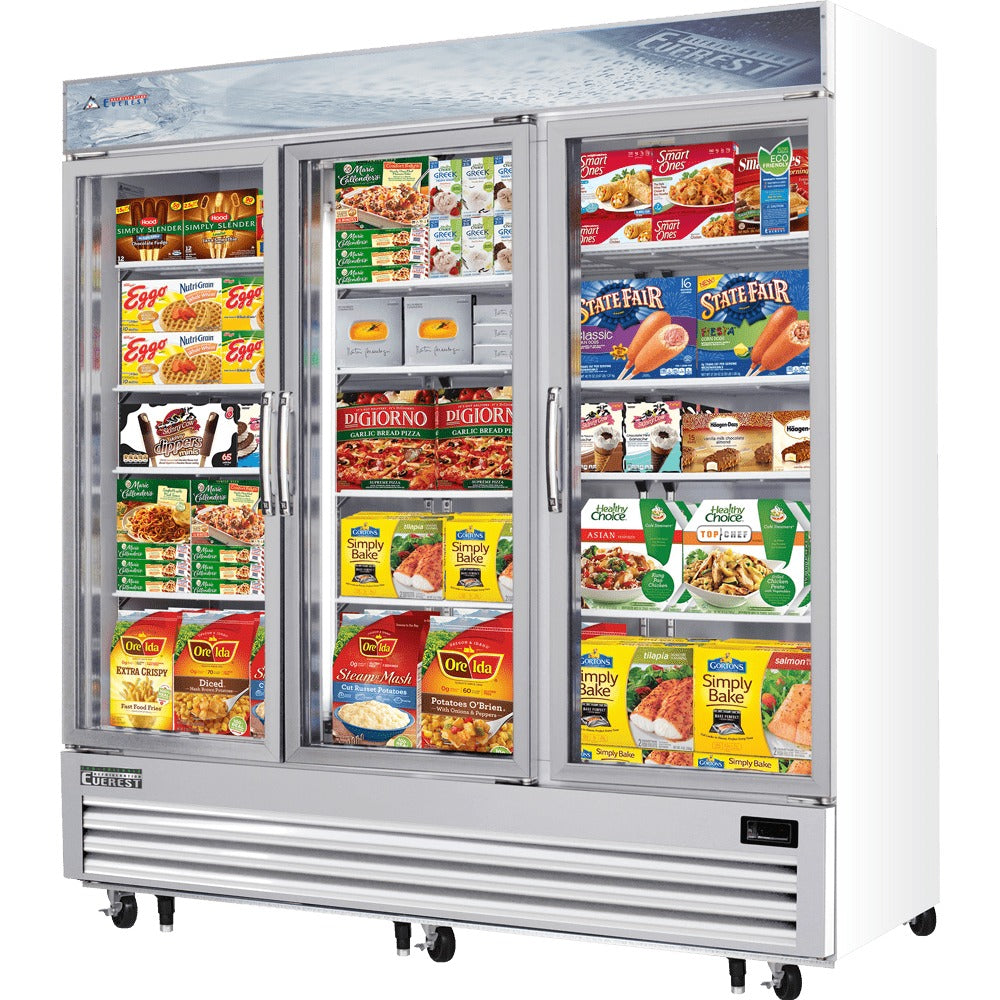

Everest EMGF69 75 In. Glass Door Merchandiser Freezer, 3 Swing Doors, 69 Cu. Ft., Bottom Mount Blizzard R290

The Everest EMGF69 is the full frozen wall of Everest's EM Series merchandiser freezers, facing 69 cubic feet across twelve lighted shelves behind three heated low-E glass swing doors. Twin 1-1/4 HP bottom mount compressors each push 5,441 BTU per hour to hold the 74 3/4 inch cabinet at its -4°F factory preset, so a supermarket frozen aisle anchors ice cream, pizza, and meals on one cord. Each door covers its own third of the case, and six standard 5 inch casters carry the weight with locks on the front set.

Bottom Mount Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing system is a bottom mounted, self-contained Blizzard R290 cartridge driven by a pair of 1 1/4 HP compressors, each rated at 5,441 BTU per hour, and the cartridge is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a freezer out of service while a refrigeration tech opens the circuit, a cartridge swap puts the display back to selling the same visit. The system runs natural, EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs, a discipline that matters at freezer temperatures. The condensate pan maintains itself with no external drain line or electric heater, which keeps the install down to a wall outlet, and a high performance auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings.

Three Heated Low-E Glass Swing Doors in Matte Aluminum Frames with Pre-Installed Locks

Frozen merchandising lives or dies on visible product, so the doors fight fog two ways: frame heaters prevent exterior moisture build up on the matte finish aluminum frames, and defroster strips keep the glass panes clear and fog free after every opening. The low emissivity double glass panes also reflect UV rays, so the compressors are not fighting radiant heat while customers browse. Each door self-closes through an adjustable torsion system for a positive seal, carries a high strength die-cast handle, and seals on a snap-in magnetic gasket that pops out for cleaning or replacement without tools. Pre-installed door locks secure the stock at close with no aftermarket hasp drilled into the frame. Because each door covers its own third of the case, one customer reaching for a pint leaves two thirds of the cold air untouched.

69 Cu. Ft. Frozen Display Interior with Shielded LED Bar Lighting and 12 Adjustable Shelves

Inside, the 69 cubic foot compartment carries 12 epoxy coated steel wire shelves, four per section, with airflow guards, sitting on height adjustable stainless steel clips that reset in seconds when the frozen mix changes. Shielded LED bar lighting with its own on/off switch throws bright, high color light at low heat output, so packaging reads well without warming the box. A full-length air duct distributes cold air from top to bottom and an air circulation guard keeps the floor vents clear of product, so the bottom row freezes as hard as the top shelf. The white coated steel interior keeps product looking sharp, the stainless steel floor has rounded corners and a detachable drain plug for fast cleanups, 2.5 inch high density polyurethane insulation fills the walls, and the open spaced interior runs wall free between compartments.

Digital Controller Preset at -4°F with a Setting Range of -10°F to 54°F

A multi-function digital controller with an easy to read LED display ships factory preset at -4°F and adjusts across a setting range of -10°F to 54°F, deep enough to keep ice cream scoopable hard. Six 5 inch swivel casters come standard with locks on the front set, along with leg stabilizers, so the cabinet rolls into the cold aisle, locks down, and stays put. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 5 year compressor coverage, supported through its service agent network.

If the stock setup does not match your merchandising plan, Everest offers additional shelving, 3 inch swivel casters with locks, and height adjustable interchangeable legs from 3.5 to 6 inches.

Keep in mind this is a display freezer with a setting range of -10°F to 54°F, and the coated steel cabinet is merchandising equipment, not a stainless back of house reach-in. Three doors and 69 cubic feet are the most frozen display this family carries; a two category program fits the EMGF48, and a fully opened door needs 55 1/8 inches of aisle to clear, so plan the frozen aisle around stocking, not just shopping. Power is a 115V connection on a 9 foot cord, but the NEMA 5-20P plug requires a 20 amp receptacle rather than a standard 15 amp wall outlet.
