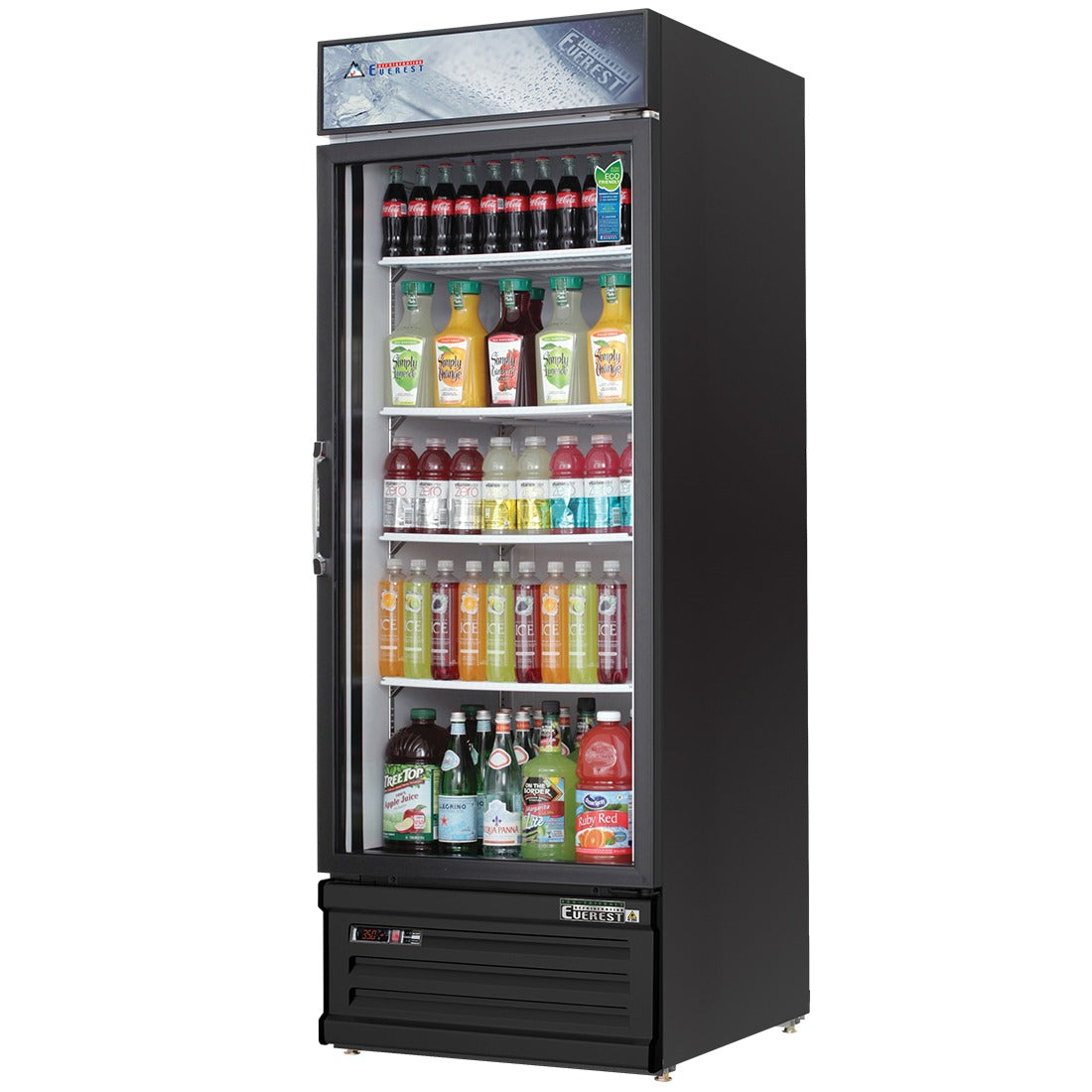

The Everest Refrigeration EMGR24B Glass Door Merchandiser Refrigerator
The Everest EMGR24B takes the widest single door cabinet in the EM Series merchandiser line and wraps it in a black coated steel exterior for dark themed stores and branded beverage walls. Behind the 28 3/8 inch low emissivity glass door, 165 twenty ounce bottle facings spread across four lighted shelves in a 25 cubic foot white display interior, so the product carries the color and the cabinet disappears. The deep 32 inch chassis holds backstock behind every facing, cutting restock trips during a rush.
Bottom Mount Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a bottom mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cooler out of service while a refrigeration tech opens the circuit, a cartridge swap puts the display back to selling the same visit. The cartridge runs natural, EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which keeps the install down to a wall outlet, and a high performance auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings.
One Low-E Double Pane Glass Swing Door in a Black PVC Frame
The door's low emissivity double glass panes reflect UV rays, so the compressor is not fighting radiant heat through the glass while customers size up the shelves, and the black PVC frame draws the eye to the product instead of the cabinet. The door self-closes through an adjustable torsion system for a positive seal after every grab, carries a high strength die-cast handle, and the snap-in magnetic gasket pops out for cleaning or replacement without tools. The door is field reversible, and a factory left hinged door is available if your traffic flow runs the other way.
25 Cu. Ft. Display Interior with Shielded LED Bar Lighting and 4 Adjustable Shelves
Inside, the 25 cubic foot compartment rated to face 165 twenty ounce bottles carries 4 epoxy coated steel wire shelves with airflow guards, sitting on height adjustable stainless steel clips that reset in seconds when the package mix changes. Shielded LED bar lighting with its own on/off switch throws bright, high color light at low heat output, so labels read well without warming the box. A full-length air duct distributes cold air from top to bottom and an air circulation guard keeps the floor vents clear of product, so the bottom row chills as hard as the top shelf. The bright white interior keeps product looking sharp, the stainless steel floor has rounded corners and a detachable drain plug so a burst bottle rinses out instead of pooling, 2.5 inch high density polyurethane insulation fills the walls, and the cabinet stands on four height adjustable screw legs.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F, covering everything from cold cans to cellar temperature craft bottles. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your merchandising plan, Everest offers additional shelving, a wine shelf, a gravity shelf and bottle organizer, 3 or 5 inch swivel casters with locks on the front set, height adjustable interchangeable legs from 3.5 to 6 inches, and a health timer lock with a remote controller key for vending compliance programs.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, and the coated steel display cabinet is merchandising equipment, not a substitute for a stainless back of house reach-in. Twenty five cubic feet is the most display one swing door in this family carries; an operation that wants split door traffic or more facings moves to the two door EMSGR33B, while tighter aisles take the 24 inch wide black cabinets. Power is a standard 115V connection on a 9 foot cord, with no dedicated high voltage circuit needed.
Features & Benefits
-
Glass door merchandiser for c-store coolers and grab-and-go beverage displays
-
Faces up to 165 twenty ounce bottles across 4 adjustable lighted shelves
-
Swaps the entire bottom mount Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Stands out with a black coated steel exterior wrapped around a bright white display interior
-
Reflects UV rays through low emissivity double pane glass for efficient cooling
-
Shows labels under shielded LED bar lighting with its own on/off switch
-
Seals every customer grab with a self-closing torsion door and snap-in magnetic gasket
-
Cuts energy draw with ECM fan motors and a self-maintaining condensate pan
-
Defrosts on a time-initiated, temperature-terminated cycle with no staff input
-
Chills the bottom row as hard as the top through a full-length air duct
-
Sounds an audible alarm before compressor or condenser overheating costs you product
-
Rinses clean over a stainless steel floor with rounded corners and a detachable drain plug
-
Reverses the door in the field to match your store's traffic flow
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
The Everest Refrigeration EMGR24B Glass Door Merchandiser Refrigerator
The Everest EMGR24B takes the widest single door cabinet in the EM Series merchandiser line and wraps it in a black coated steel exterior for dark themed stores and branded beverage walls. Behind the 28 3/8 inch low emissivity glass door, 165 twenty ounce bottle facings spread across four lighted shelves in a 25 cubic foot white display interior, so the product carries the color and the cabinet disappears. The deep 32 inch chassis holds backstock behind every facing, cutting restock trips during a rush.
Bottom Mount Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a bottom mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cooler out of service while a refrigeration tech opens the circuit, a cartridge swap puts the display back to selling the same visit. The cartridge runs natural, EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which keeps the install down to a wall outlet, and a high performance auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings.
One Low-E Double Pane Glass Swing Door in a Black PVC Frame
The door's low emissivity double glass panes reflect UV rays, so the compressor is not fighting radiant heat through the glass while customers size up the shelves, and the black PVC frame draws the eye to the product instead of the cabinet. The door self-closes through an adjustable torsion system for a positive seal after every grab, carries a high strength die-cast handle, and the snap-in magnetic gasket pops out for cleaning or replacement without tools. The door is field reversible, and a factory left hinged door is available if your traffic flow runs the other way.
25 Cu. Ft. Display Interior with Shielded LED Bar Lighting and 4 Adjustable Shelves
Inside, the 25 cubic foot compartment rated to face 165 twenty ounce bottles carries 4 epoxy coated steel wire shelves with airflow guards, sitting on height adjustable stainless steel clips that reset in seconds when the package mix changes. Shielded LED bar lighting with its own on/off switch throws bright, high color light at low heat output, so labels read well without warming the box. A full-length air duct distributes cold air from top to bottom and an air circulation guard keeps the floor vents clear of product, so the bottom row chills as hard as the top shelf. The bright white interior keeps product looking sharp, the stainless steel floor has rounded corners and a detachable drain plug so a burst bottle rinses out instead of pooling, 2.5 inch high density polyurethane insulation fills the walls, and the cabinet stands on four height adjustable screw legs.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F, covering everything from cold cans to cellar temperature craft bottles. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your merchandising plan, Everest offers additional shelving, a wine shelf, a gravity shelf and bottle organizer, 3 or 5 inch swivel casters with locks on the front set, height adjustable interchangeable legs from 3.5 to 6 inches, and a health timer lock with a remote controller key for vending compliance programs.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, and the coated steel display cabinet is merchandising equipment, not a substitute for a stainless back of house reach-in. Twenty five cubic feet is the most display one swing door in this family carries; an operation that wants split door traffic or more facings moves to the two door EMSGR33B, while tighter aisles take the 24 inch wide black cabinets. Power is a standard 115V connection on a 9 foot cord, with no dedicated high voltage circuit needed.
Features & Benefits
-
Glass door merchandiser for c-store coolers and grab-and-go beverage displays
-
Faces up to 165 twenty ounce bottles across 4 adjustable lighted shelves
-
Swaps the entire bottom mount Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Stands out with a black coated steel exterior wrapped around a bright white display interior
-
Reflects UV rays through low emissivity double pane glass for efficient cooling
-
Shows labels under shielded LED bar lighting with its own on/off switch
-
Seals every customer grab with a self-closing torsion door and snap-in magnetic gasket
-
Cuts energy draw with ECM fan motors and a self-maintaining condensate pan
-
Defrosts on a time-initiated, temperature-terminated cycle with no staff input
-
Chills the bottom row as hard as the top through a full-length air duct
-
Sounds an audible alarm before compressor or condenser overheating costs you product
-
Rinses clean over a stainless steel floor with rounded corners and a detachable drain plug
-
Reverses the door in the field to match your store's traffic flow
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 25 |
| 20 oz. Bottle Capacity | 165 |
| Door Count | 1 |
| Door Style | Swing Glass |
| Glass Type | Low Emissivity Double Pane, UV Reflective |
| Door Frame | Black PVC |
| Door Features | Self-Closing, Die-Cast Handle, Field Reversible |
| Door Gasket | Snap-In Magnetic |
| Door Width | 28 3/8" |
| Shelves | 4 Epoxy Coated Steel Wire With Airflow Guard |
| Shelf Clips | Height Adjustable Stainless Steel |
| Exterior Finish | Black Coated Steel |
| Interior | White Coated Steel, Stainless Steel Floor With Detachable Drain Plug |
| Insulation | 2.5" High Density Polyurethane |
| Lighting | Shielded LED Bar With On/Off Switch |
| Air Distribution | Full-Length Air Duct With Air Circulation Guard |
| Refrigerant | R-290 |
| Compressor HP | 1/3 |
| Compressor Location | Bottom Mount |
| Fan Motors | Electronically Commutated (ECM) |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 2.5 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Legs | Four Height Adjustable Screw Legs |
| Exterior Length | 28 3/8" |
| Exterior Depth | 32" |
| Exterior Height | 80 1/8" |
| Depth With Door Open | 59 1/8" |
| Crated Weight | 334 Lbs. |
| Optional Accessories | Additional Shelving, Wine Shelf (ECS01-02), Gravity Shelf and Bottle Organizer (BO01), 3" Caster Assembly (CASA3-01), 5" Caster Assembly (CASA5-01), 3.5"-6" Interchangeable Legs (AJL03-00), Health Timer Lock (HL01-00) With Remote Key (HLK01-00), Left Hinged Door |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
