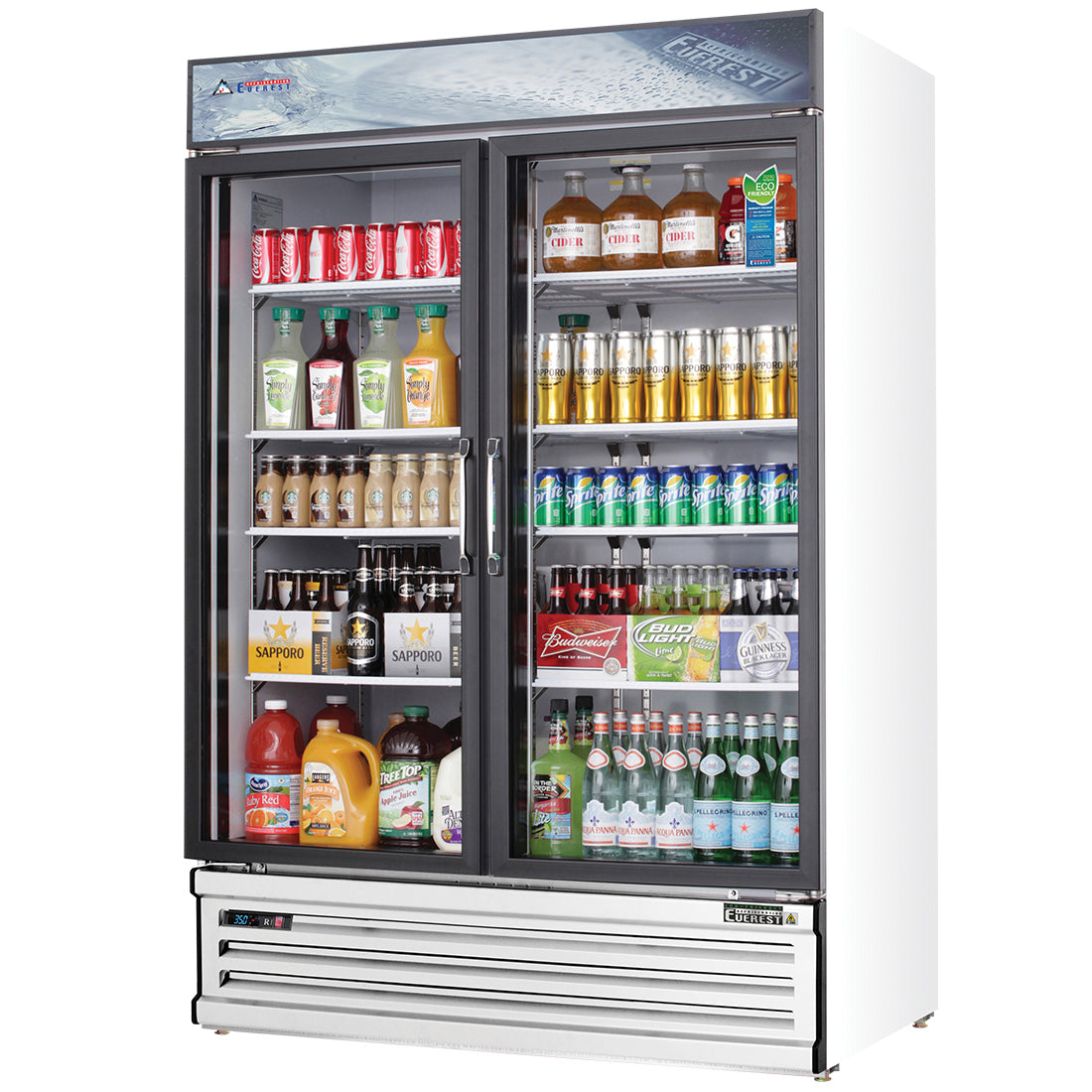

The Everest Refrigeration EMSGR48 Glass Door Merchandiser Refrigerator
The Everest EMSGR48 is the two door swing workhorse of Everest's wide body EM Series merchandisers, facing 448 twenty ounce bottles across eight lighted shelves in a 53 1/8 inch wide, 50 cubic foot cabinet. Each self-closing glass door guards its own half of the display, so the customer pulling a sports drink from the left section is not dumping the cold air off the right, and the deep 32 inch chassis keeps backstock behind every facing. It is the cabinet a c-store or grocery drink wall moves to when 39 inches of swing door display stops covering the categories, and the white coated steel body keeps the whole run bright.
Bottom Mount Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a bottom mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cooler out of service while a refrigeration tech opens the circuit, a cartridge swap puts the display back to selling the same visit. The cartridge runs natural, EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which keeps the install down to a wall outlet, and a high performance auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings.
Two Low-E Double Pane Glass Swing Doors in Black PVC Frames
Each door's low emissivity double glass panes reflect UV rays, so the compressor is not fighting radiant heat through the glass while customers size up the shelves, and the black PVC frames draw the eye to the product instead of the cabinet. All two doors self-close through adjustable torsion systems for a positive seal after every grab, carry high strength die-cast handles, and the snap-in magnetic gaskets pop out for cleaning or replacement without tools. Because each door covers its own half of the case, one customer reaching for a single shelf does not pull the cold air off the entire display.
50 Cu. Ft. Display Interior with Shielded LED Bar Lighting and 8 Adjustable Shelves
Inside, the 50 cubic foot compartment rated to face 448 twenty ounce bottles carries 8 epoxy coated steel wire shelves, four per section, with airflow guards, sitting on height adjustable stainless steel clips that reset in seconds when the package mix changes. Shielded LED bar lighting with its own on/off switch throws bright, high color light at low heat output, so labels read well without warming the box. A full-length air duct distributes cold air from top to bottom and an air circulation guard keeps the floor vents clear of product, so the bottom row chills as hard as the top shelf. The white coated steel interior keeps product looking sharp, the stainless steel floor has rounded corners and a detachable drain plug so a burst bottle rinses out instead of pooling, 2.5 inch high density polyurethane insulation fills the walls, and the cabinet stands on four height adjustable screw legs.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F, covering everything from cold cans to cellar temperature craft bottles. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your merchandising plan, Everest offers additional shelving, a gravity shelf and bottle organizer, 3 inch swivel casters with locks, height adjustable interchangeable legs from 3.5 to 6 inches, and a double door health timer lock with a remote controller key for vending compliance programs.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, and the coated steel display cabinet is merchandising equipment, not a substitute for a stainless back of house reach-in. Stocking takes room, since a fully opened door needs 59 inches of depth to clear; the sliding door EMGR48 covers the same width where that swing has nowhere to go. Two doors and 50 cubic feet carry a two category wall, and a third category belongs on the 71 cubic foot EMSGR69. Power is a standard 115V connection on a 9 foot cord, with no dedicated high voltage circuit needed.
Features & Benefits
-
Two door swing glass merchandiser for c-store beverage walls and grocery drink aisles
-
Faces up to 448 twenty ounce bottles across 8 adjustable lighted shelves
-
Swaps the entire bottom mount Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Reflects UV rays through low emissivity double pane glass for efficient cooling
-
Shows labels under shielded LED bar lighting with its own on/off switch
-
Splits the display into two self-closing doors so one grab spares the other half's cold air
-
Cuts energy draw with ECM fan motors and a self-maintaining condensate pan
-
Defrosts on a time-initiated, temperature-terminated cycle with no staff input
-
Chills the bottom row as hard as the top through a full-length air duct
-
Sounds an audible alarm before compressor or condenser overheating costs you product
-
Rinses clean over a stainless steel floor with rounded corners and a detachable drain plug
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Two door swing glass merchandiser for c-store beverage walls and grocery drink aisles
Faces up to 448 twenty ounce bottles across 8 adjustable lighted shelves
Swaps the entire bottom mount Blizzard R290 cooling cartridge in the field without on-site brazing
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
Reflects UV rays through low emissivity double pane glass for efficient cooling
The Everest Refrigeration EMSGR48 Glass Door Merchandiser Refrigerator
The Everest EMSGR48 is the two door swing workhorse of Everest's wide body EM Series merchandisers, facing 448 twenty ounce bottles across eight lighted shelves in a 53 1/8 inch wide, 50 cubic foot cabinet. Each self-closing glass door guards its own half of the display, so the customer pulling a sports drink from the left section is not dumping the cold air off the right, and the deep 32 inch chassis keeps backstock behind every facing. It is the cabinet a c-store or grocery drink wall moves to when 39 inches of swing door display stops covering the categories, and the white coated steel body keeps the whole run bright.
Bottom Mount Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a bottom mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cooler out of service while a refrigeration tech opens the circuit, a cartridge swap puts the display back to selling the same visit. The cartridge runs natural, EPA-compliant R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which keeps the install down to a wall outlet, and a high performance auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings.
Two Low-E Double Pane Glass Swing Doors in Black PVC Frames
Each door's low emissivity double glass panes reflect UV rays, so the compressor is not fighting radiant heat through the glass while customers size up the shelves, and the black PVC frames draw the eye to the product instead of the cabinet. All two doors self-close through adjustable torsion systems for a positive seal after every grab, carry high strength die-cast handles, and the snap-in magnetic gaskets pop out for cleaning or replacement without tools. Because each door covers its own half of the case, one customer reaching for a single shelf does not pull the cold air off the entire display.
50 Cu. Ft. Display Interior with Shielded LED Bar Lighting and 8 Adjustable Shelves
Inside, the 50 cubic foot compartment rated to face 448 twenty ounce bottles carries 8 epoxy coated steel wire shelves, four per section, with airflow guards, sitting on height adjustable stainless steel clips that reset in seconds when the package mix changes. Shielded LED bar lighting with its own on/off switch throws bright, high color light at low heat output, so labels read well without warming the box. A full-length air duct distributes cold air from top to bottom and an air circulation guard keeps the floor vents clear of product, so the bottom row chills as hard as the top shelf. The white coated steel interior keeps product looking sharp, the stainless steel floor has rounded corners and a detachable drain plug so a burst bottle rinses out instead of pooling, 2.5 inch high density polyurethane insulation fills the walls, and the cabinet stands on four height adjustable screw legs.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F, covering everything from cold cans to cellar temperature craft bottles. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your merchandising plan, Everest offers additional shelving, a gravity shelf and bottle organizer, 3 inch swivel casters with locks, height adjustable interchangeable legs from 3.5 to 6 inches, and a double door health timer lock with a remote controller key for vending compliance programs.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, and the coated steel display cabinet is merchandising equipment, not a substitute for a stainless back of house reach-in. Stocking takes room, since a fully opened door needs 59 inches of depth to clear; the sliding door EMGR48 covers the same width where that swing has nowhere to go. Two doors and 50 cubic feet carry a two category wall, and a third category belongs on the 71 cubic foot EMSGR69. Power is a standard 115V connection on a 9 foot cord, with no dedicated high voltage circuit needed.
Features & Benefits
-
Two door swing glass merchandiser for c-store beverage walls and grocery drink aisles
-
Faces up to 448 twenty ounce bottles across 8 adjustable lighted shelves
-
Swaps the entire bottom mount Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Reflects UV rays through low emissivity double pane glass for efficient cooling
-
Shows labels under shielded LED bar lighting with its own on/off switch
-
Splits the display into two self-closing doors so one grab spares the other half's cold air
-
Cuts energy draw with ECM fan motors and a self-maintaining condensate pan
-
Defrosts on a time-initiated, temperature-terminated cycle with no staff input
-
Chills the bottom row as hard as the top through a full-length air duct
-
Sounds an audible alarm before compressor or condenser overheating costs you product
-
Rinses clean over a stainless steel floor with rounded corners and a detachable drain plug
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 50 |
| 20 oz. Bottle Capacity | 448 |
| Door Count | 2 |
| Door Style | Swing Glass |
| Glass Type | Low Emissivity Double Pane, UV Reflective |
| Door Frame | Black PVC |
| Door Features | Self-Closing Adjustable Torsion, Die-Cast Handles |
| Door Gasket | Snap-In Magnetic |
| Door Width | 26 1/4" Each |
| Shelves | 8 Epoxy Coated Steel Wire With Airflow Guard |
| Shelf Clips | Height Adjustable Stainless Steel |
| Exterior Finish | White Coated Steel |
| Interior | White Coated Steel, Stainless Steel Floor With Detachable Drain Plug |
| Insulation | 2.5" High Density Polyurethane |
| Lighting | Shielded LED Bar With On/Off Switch |
| Air Distribution | Full-Length Air Duct With Air Circulation Guard |
| Refrigerant | R-290 |
| Compressor HP | 1/2 |
| Compressor Location | Bottom Mount |
| Fan Motors | Electronically Commutated (ECM) |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 6 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Legs | Four Height Adjustable Screw Legs |
| Exterior Length | 53 1/8" |
| Exterior Depth | 32" |
| Exterior Height | 80 1/8" |
| Depth With Door Open | 59" |
| Crated Weight | 522 Lbs. |
| Optional Accessories | Additional Shelving, Gravity Shelf and Bottle Organizer (BO03), 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00), Double Door Health Timer Lock (HL02-00) With Remote Key (HLK01-00) |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
