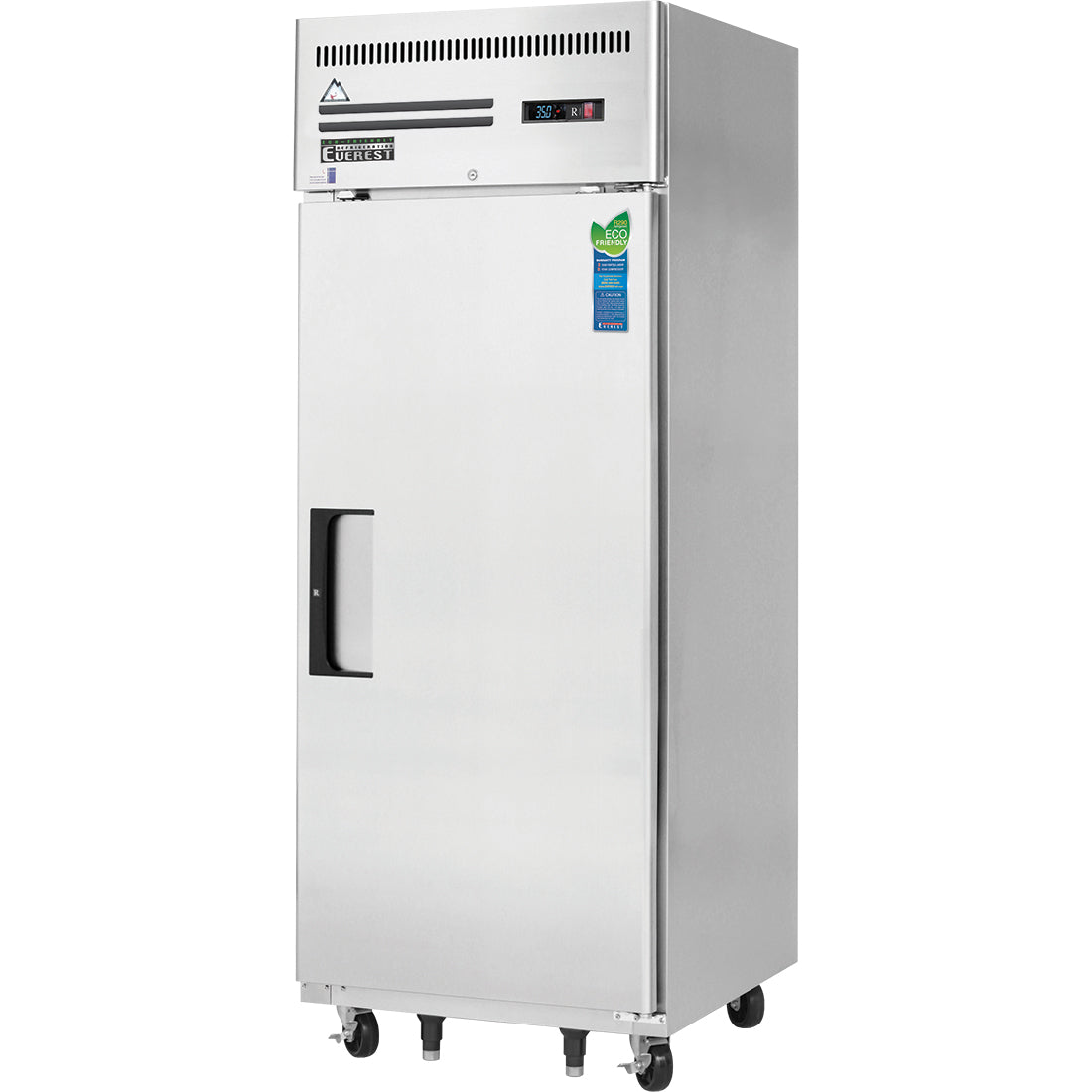

The Everest Refrigeration ESR1 Reach-In Refrigerator
The Everest ESR1 is the single door entry point to Everest's ES Series top mount reach-in family, a 29 1/4 inch wide upright refrigerator for kitchens that need full height cold storage where a two door box will not fit. Its solid stainless steel door opens to a 23 cubic foot interior with no walls between compartments, so full sheet pans and bulk containers go wherever there is shelf space rather than where a divider allows. Three adjustable wire shelves keep ingredients staged for back-of-house prep, and at under 32 inches deep the cabinet sits flush in a tight prep corridor without crowding the walkway.
Slide-Out Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a top mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a refrigeration tech opens the circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which is one less floor penetration in your install. An auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Door with a Self-Closing Torsion Hinge and Pre-Installed Lock
The door is heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls, so the swing side of the box insulates as well as the rest of it. It self-closes through an adjustable torsion system for a positive seal, carries a high strength recessed handle that will not catch passing carts, and comes with a pre-installed lock so stock stays put overnight. Frame heaters prevent exterior moisture build up on humid days, the snap-in magnetic gasket pops out for cleaning or replacement without tools, and the door is field reversible if your traffic flow runs the other way.
23 Cu. Ft. Open Interior Built in Heavy Duty Stainless Steel
Inside there are no dividing walls, just one open compartment with three epoxy coated steel wire shelves on height adjustable stainless steel clips. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. A full-length air duct and airflow guard keep cold air moving through the whole cavity, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on four 5 inch swivel casters with locks on the front set, and leg stabilizers come standard.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock configuration does not match your line, Everest offers additional shelving, 3 inch locking swivel casters in place of the standard 5 inch set, height adjustable interchangeable legs from 3.5 to 6 inches, and a left hinged door option.
Keep in mind this is a refrigerator only, holding 33°F to 54°F; the ES Series includes freezer and dual temperature versions if you need frozen storage. One door and 23 cubic feet suit a single station or a moderate prep load, while a kitchen staging product for several lines at once is better matched to the wider two and three door cabinets in the same series. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
Features & Benefits
-
Upright workhorse for prep lines and tight kitchens needing storage in a 29 1/4 in. footprint
-
Stores 23 cu. ft. behind a single solid door with no interior section walls
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Cuts energy draw with ECM fan motors and low-heat, shatter-proof LED lighting
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals every swing with a self-closing door, adjustable torsion, and a snap-in magnetic gasket
-
Locks overnight with a pre-installed door lock to keep stock secure
-
Adjusts three epoxy coated wire shelves on stainless steel height-adjustable clips
-
Prevents exterior moisture build up with standard door frame heaters
-
Reverses the door in the field to match your kitchen traffic flow
-
Rolls on four 5 in. locking swivel casters with leg stabilizers standard
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Upright workhorse for prep lines and tight kitchens needing storage in a 29 1/4 in. footprint
Stores 23 cu. ft. behind a single solid door with no interior section walls
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
Cuts energy draw with ECM fan motors and low-heat, shatter-proof LED lighting
The Everest Refrigeration ESR1 Reach-In Refrigerator
The Everest ESR1 is the single door entry point to Everest's ES Series top mount reach-in family, a 29 1/4 inch wide upright refrigerator for kitchens that need full height cold storage where a two door box will not fit. Its solid stainless steel door opens to a 23 cubic foot interior with no walls between compartments, so full sheet pans and bulk containers go wherever there is shelf space rather than where a divider allows. Three adjustable wire shelves keep ingredients staged for back-of-house prep, and at under 32 inches deep the cabinet sits flush in a tight prep corridor without crowding the walkway.
Slide-Out Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a top mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a refrigeration tech opens the circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which is one less floor penetration in your install. An auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Door with a Self-Closing Torsion Hinge and Pre-Installed Lock
The door is heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls, so the swing side of the box insulates as well as the rest of it. It self-closes through an adjustable torsion system for a positive seal, carries a high strength recessed handle that will not catch passing carts, and comes with a pre-installed lock so stock stays put overnight. Frame heaters prevent exterior moisture build up on humid days, the snap-in magnetic gasket pops out for cleaning or replacement without tools, and the door is field reversible if your traffic flow runs the other way.
23 Cu. Ft. Open Interior Built in Heavy Duty Stainless Steel
Inside there are no dividing walls, just one open compartment with three epoxy coated steel wire shelves on height adjustable stainless steel clips. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. A full-length air duct and airflow guard keep cold air moving through the whole cavity, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on four 5 inch swivel casters with locks on the front set, and leg stabilizers come standard.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock configuration does not match your line, Everest offers additional shelving, 3 inch locking swivel casters in place of the standard 5 inch set, height adjustable interchangeable legs from 3.5 to 6 inches, and a left hinged door option.
Keep in mind this is a refrigerator only, holding 33°F to 54°F; the ES Series includes freezer and dual temperature versions if you need frozen storage. One door and 23 cubic feet suit a single station or a moderate prep load, while a kitchen staging product for several lines at once is better matched to the wider two and three door cabinets in the same series. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
Features & Benefits
-
Upright workhorse for prep lines and tight kitchens needing storage in a 29 1/4 in. footprint
-
Stores 23 cu. ft. behind a single solid door with no interior section walls
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Cuts energy draw with ECM fan motors and low-heat, shatter-proof LED lighting
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals every swing with a self-closing door, adjustable torsion, and a snap-in magnetic gasket
-
Locks overnight with a pre-installed door lock to keep stock secure
-
Adjusts three epoxy coated wire shelves on stainless steel height-adjustable clips
-
Prevents exterior moisture build up with standard door frame heaters
-
Reverses the door in the field to match your kitchen traffic flow
-
Rolls on four 5 in. locking swivel casters with leg stabilizers standard
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 23 |
| Door Count | 1 |
| Door Style | Swing Solid |
| Door Material | Stainless Steel Interior/Exterior |
| Door Width | 28 1/8" |
| Door Features | Self-Closing, Field Reversible, Recessed Handle, Pre-Installed Lock |
| Door Gaskets | Snap-In Magnetic |
| Frame Heaters | Standard |
| Shelves | 3 Epoxy Coated Steel Wire |
| Shelf Clips | Height Adjustable Stainless Steel |
| Interior / Exterior Finish | Heavy Duty Stainless Steel, Rounded Corners |
| Top, Bottom and Rear | Galvanized Steel |
| Insulation | 2.5" High Density Polyurethane (Cabinet and Doors) |
| Lighting | Silicone Coated, Shatter-Proof LED |
| Refrigerant | R-290 |
| Compressor HP | 1/4+ |
| Compressor Location | Top Mount |
| BTU/Hr | 1,926 |
| Fan Motors | Electronically Commutated (ECM) |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Pressure Relief Devices | Standard, For Rapid Cabinet Re-Entry |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 3.3 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Casters | Four 5" Swivel, Locks on Front Set |
| Leg Stabilizers | Standard |
| Exterior Length | 29 1/4" |
| Exterior Depth | 31 5/8" |
| Depth With Door Open | 58 5/8" |
| Exterior Height | 74 1/4" |
| Overall Height (With 5" Casters) | 79 1/4" |
| Crated Weight | 296 Lbs. |
| Optional Accessories | Additional Shelving, 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00), Left Hinged Door |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
