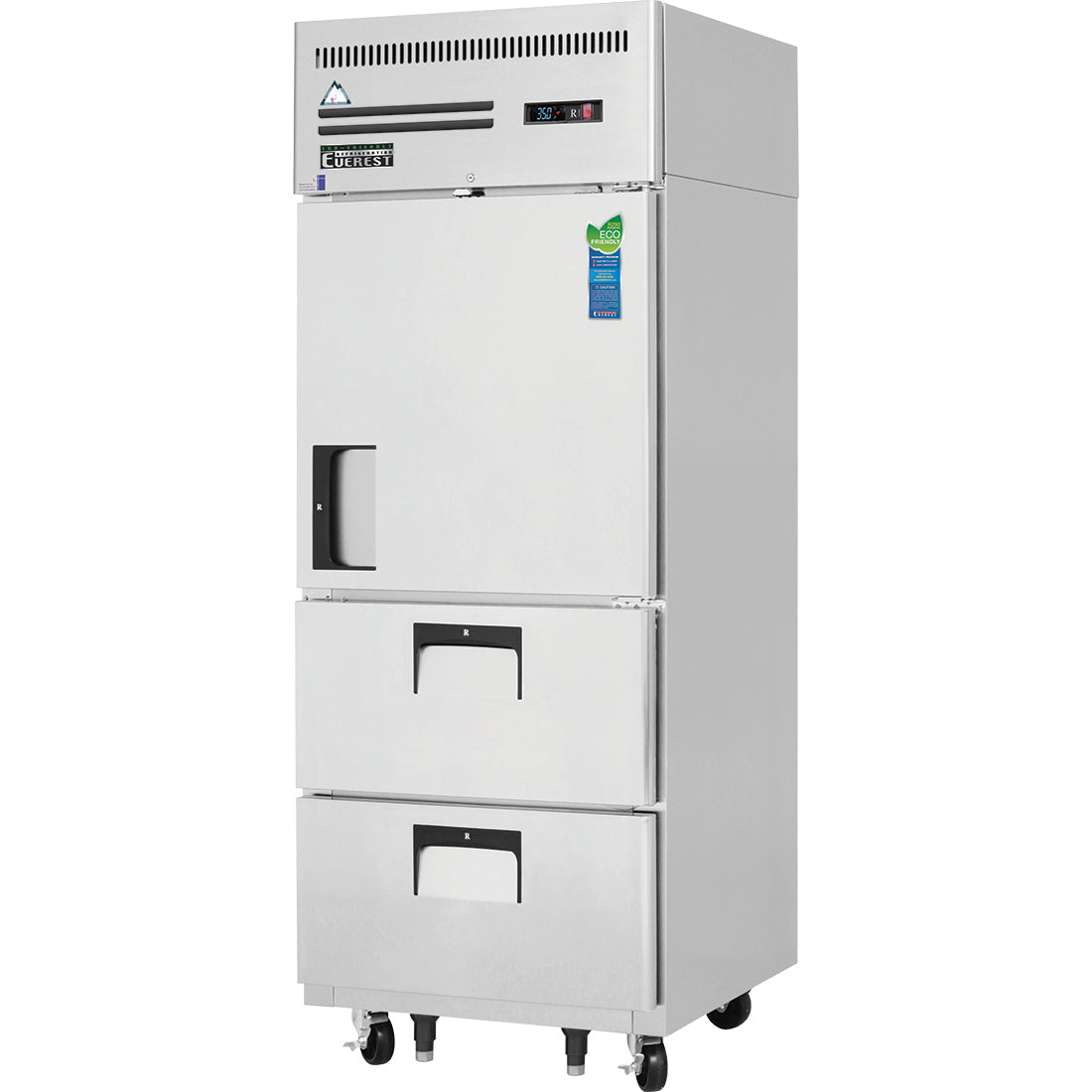

The Everest Refrigeration ESR1D2 Reach-In Refrigerator
The Everest ESR1D2 is the door and drawer configuration of Everest's ES Series single section reach-in family, built for line-side kitchens that want shelf storage up top and pull-out drawer access below without giving up more than 29 1/4 inches of wall. A solid half door covers two adjustable wire shelves at eye level, while two stainless steel drawers underneath slide product straight out to the cook instead of making them crouch and dig behind a swing door in the middle of service. All three openings share one open 23 cubic foot interior, and at under 32 inches deep the cabinet holds the same wall line as your worktables.
Slide-Out Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a top mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a refrigeration tech opens the circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which is one less floor penetration in your install. An auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Half Door over Two Ball-Bearing Drawers with a Pre-Installed Door Lock
The half door is heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls, self-closes through an adjustable torsion system for a positive seal, and carries a high strength recessed handle plus a pre-installed lock so shelved stock stays put overnight; the lock applies to the door only, not the drawers. Below it, both drawers ride in thick gauge stainless steel frames on low-friction ball bearings, so a loaded drawer rolls out with one hand instead of fighting the cook mid-rush. Snap-in magnetic gaskets on the door and both drawers pop out for cleaning or replacement without tools, and frame heaters prevent exterior moisture build up on humid days.
23 Cu. Ft. Open Interior Built in Heavy Duty Stainless Steel
Inside there are no dividing walls, just one open compartment serving the door and drawer levels, with two epoxy coated steel wire shelves on height adjustable stainless steel clips behind the half door. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. A full-length air duct and airflow guard keep cold air moving through the whole cavity, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on four 5 inch swivel casters with locks on the front set, and leg stabilizers come standard.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock configuration does not match your line, Everest offers additional shelving, 3 inch locking swivel casters in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F; the ES Series includes freezer and dual temperature versions if you need frozen storage. The drawer layout earns its keep where cooks pull product at station height all day, while a kitchen loading tall or bulky stock through a full-height opening is better matched to the all-door 29 1/4 inch cabinet in the same series. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
Features & Benefits
-
Door and drawer combo for line-side kitchens grabbing product at station height through service
-
Stores 23 cu. ft. behind one solid half door and two pull-out drawers
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Slides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
-
Cuts energy draw with ECM fan motors and low-heat, shatter-proof LED lighting
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals the half door with self-closing adjustable torsion hinges for a positive seal
-
Cleans door and drawer gaskets fast with tool-free, snap-in magnetic design
-
Locks the half door overnight with a pre-installed lock to keep shelved stock secure
-
Adjusts two epoxy coated wire shelves on stainless steel height-adjustable clips
-
Prevents exterior moisture build up with standard door frame heaters
-
Rolls on four 5 in. swivel casters with front locks and standard leg stabilizers
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Door and drawer combo for line-side kitchens grabbing product at station height through service
Stores 23 cu. ft. behind one solid half door and two pull-out drawers
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
Slides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
The Everest Refrigeration ESR1D2 Reach-In Refrigerator
The Everest ESR1D2 is the door and drawer configuration of Everest's ES Series single section reach-in family, built for line-side kitchens that want shelf storage up top and pull-out drawer access below without giving up more than 29 1/4 inches of wall. A solid half door covers two adjustable wire shelves at eye level, while two stainless steel drawers underneath slide product straight out to the cook instead of making them crouch and dig behind a swing door in the middle of service. All three openings share one open 23 cubic foot interior, and at under 32 inches deep the cabinet holds the same wall line as your worktables.
Slide-Out Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a top mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a refrigeration tech opens the circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three.
Electronically commutated fan motors pull the cabinet to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. The condensate pan maintains itself with no external drain line or electric heater, which is one less floor penetration in your install. An auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean between cleanings, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Half Door over Two Ball-Bearing Drawers with a Pre-Installed Door Lock
The half door is heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls, self-closes through an adjustable torsion system for a positive seal, and carries a high strength recessed handle plus a pre-installed lock so shelved stock stays put overnight; the lock applies to the door only, not the drawers. Below it, both drawers ride in thick gauge stainless steel frames on low-friction ball bearings, so a loaded drawer rolls out with one hand instead of fighting the cook mid-rush. Snap-in magnetic gaskets on the door and both drawers pop out for cleaning or replacement without tools, and frame heaters prevent exterior moisture build up on humid days.
23 Cu. Ft. Open Interior Built in Heavy Duty Stainless Steel
Inside there are no dividing walls, just one open compartment serving the door and drawer levels, with two epoxy coated steel wire shelves on height adjustable stainless steel clips behind the half door. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. A full-length air duct and airflow guard keep cold air moving through the whole cavity, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on four 5 inch swivel casters with locks on the front set, and leg stabilizers come standard.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock configuration does not match your line, Everest offers additional shelving, 3 inch locking swivel casters in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F; the ES Series includes freezer and dual temperature versions if you need frozen storage. The drawer layout earns its keep where cooks pull product at station height all day, while a kitchen loading tall or bulky stock through a full-height opening is better matched to the all-door 29 1/4 inch cabinet in the same series. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
Features & Benefits
-
Door and drawer combo for line-side kitchens grabbing product at station height through service
-
Stores 23 cu. ft. behind one solid half door and two pull-out drawers
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Slides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
-
Cuts energy draw with ECM fan motors and low-heat, shatter-proof LED lighting
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals the half door with self-closing adjustable torsion hinges for a positive seal
-
Cleans door and drawer gaskets fast with tool-free, snap-in magnetic design
-
Locks the half door overnight with a pre-installed lock to keep shelved stock secure
-
Adjusts two epoxy coated wire shelves on stainless steel height-adjustable clips
-
Prevents exterior moisture build up with standard door frame heaters
-
Rolls on four 5 in. swivel casters with front locks and standard leg stabilizers
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 23 |
| Door Count | 1 Half Door, 2 Drawers |
| Door Style | Swing Solid + Drawer |
| Door Material | Stainless Steel Interior/Exterior |
| Door Width | 28 1/8" |
| Door Features | Self-Closing, Recessed Handle, Pre-Installed Lock (Door Only) |
| Drawer Frames | Thick Gauge Stainless Steel, Low-Friction Ball Bearings |
| Door and Drawer Gaskets | Snap-In Magnetic |
| Frame Heaters | Standard |
| Shelves | 2 Epoxy Coated Steel Wire |
| Shelf Clips | Height Adjustable Stainless Steel |
| Interior / Exterior Finish | Heavy Duty Stainless Steel, Rounded Corners |
| Top, Bottom and Rear | Galvanized Steel |
| Insulation | 2.5" High Density Polyurethane (Cabinet and Door) |
| Lighting | Silicone Coated, Shatter-Proof LED |
| Refrigerant | R-290 |
| Compressor HP | 1/4+ |
| Compressor Location | Top Mount |
| BTU/Hr | 1,926 |
| Fan Motors | Electronically Commutated (ECM) |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Pressure Relief Devices | Standard, For Rapid Cabinet Re-Entry |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 3.3 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Casters | Four 5" Swivel, Locks on Front Set |
| Leg Stabilizers | Standard |
| Exterior Length | 29 1/4" |
| Exterior Depth | 31 5/8" |
| Depth With Door Open | 58 5/8" |
| Exterior Height | 74 1/4" |
| Overall Height (With 5" Casters) | 79 1/4" |
| Crated Weight | 340 Lbs. |
| Optional Accessories | Additional Shelving, 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00) |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
