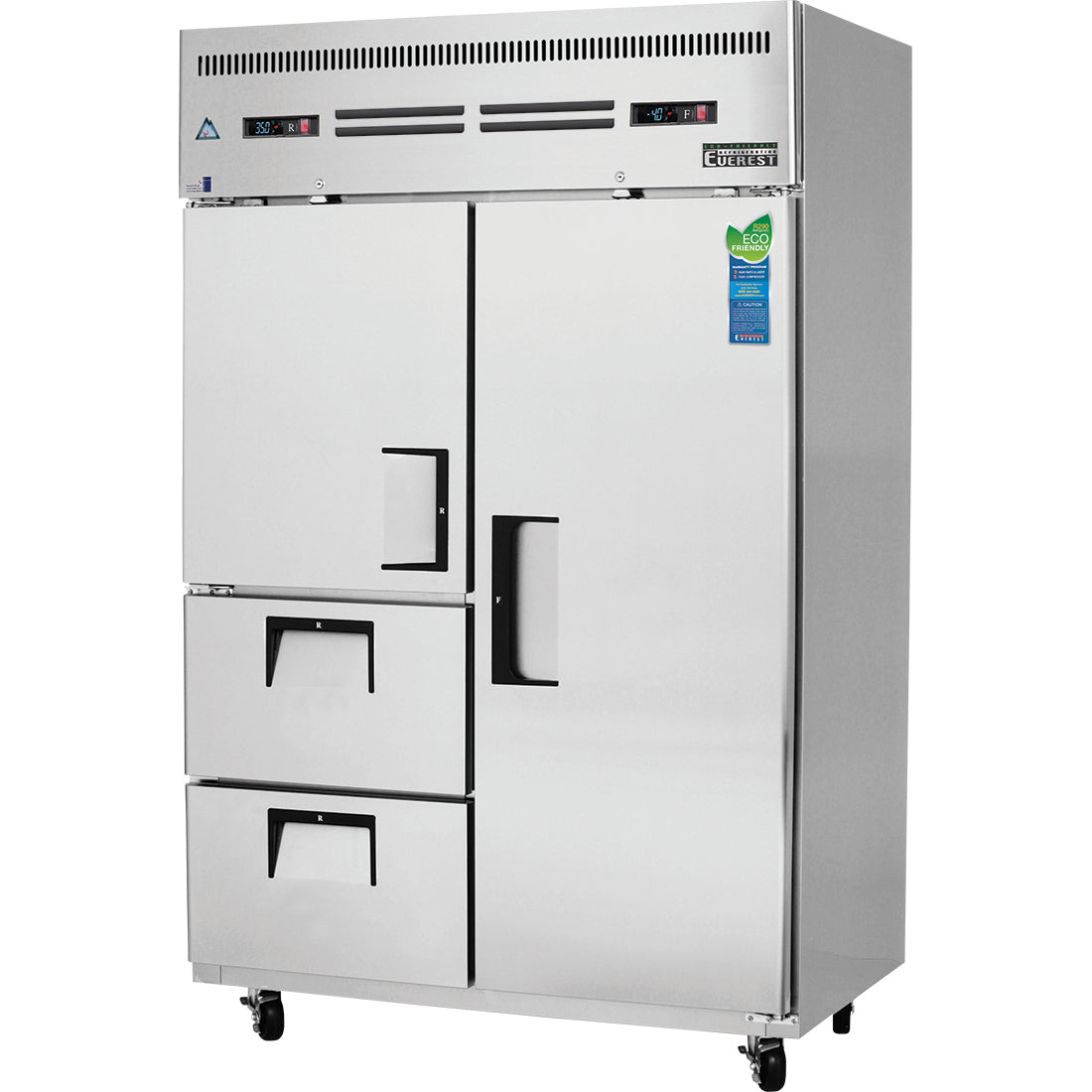

Everest ESRF2D2 50 In. Reach-In Dual Temp Refrigerator Freezer, 1 Half Door and 2 Drawers Chilled, 1 Full Door Frozen, 22 + 22 Cu. Ft.

The Everest ESRF2D2 packs a drawered refrigerator station and a full size freezer into one 49 5/8 inch wide upright, the door and drawer dual temp in Everest's ES Series top mount reach-in family for kitchens that want chilled product at hand height and frozen backup without buying and plugging in two separate boxes. The left section keeps 22 cubic feet refrigerated behind a half door and two pull-out drawers, so the line grabs prep at station height all shift, while the right section's full door opens onto a 22 cubic foot freezer for the deep reserve. At under 32 inches deep it fits where two boxes never would.

Slide-Out Blizzard R290 Cartridge that Swaps without On-Site Brazing

Each zone runs its own top mounted, self-contained Blizzard R290 cartridge, fully detachable and replaceable in the field with no on-site brazing: a 1/4+ HP unit rated 1,926 BTU per hour on the refrigerator side and a 1/2 HP unit rated 1,670 BTU per hour on the freezer side. Unlike a conventional sealed system repair that can park a cabinet out of service while a refrigeration tech opens the circuit, a cartridge swap gets the box back to work the same visit, and a problem in one zone never takes down the other. Both cartridges run natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull both compartments to temperature quickly while drawing less power, and the auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coils need. The condensate pan maintains itself with no external drain line or electric heater, which is one less floor penetration in your install. Auto-reverse condenser fans support compressor ventilation and help keep the coils clean between cleanings, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.

One Solid Freezer Door Beside a Half Door over Two Refrigerated Ball-Bearing Drawers

Both doors are heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls, so pulling chilled product never spills the freezer's air and vice versa. Each self-closes through an adjustable torsion system for a positive seal, carries a high strength recessed handle that will not catch passing carts, and comes with a pre-installed lock; the locks cover the doors only, not the drawers. The two refrigerated drawers ride in thick gauge stainless steel frames on low-friction ball bearings, so a loaded drawer rolls out with one hand instead of fighting the cook mid-rush. Snap-in magnetic gaskets on the doors and drawers pop out for cleaning or replacement without tools, and frame heaters prevent exterior moisture build up on humid days.

22 Cu. Ft. Refrigerator Beside a 22 Cu. Ft. Freezer Split by an Insulated Interior Wall

An insulated interior wall separates the two compartments, so the freezer holds deep frozen temperatures without dragging the refrigerator below its setpoint, unlike a single-cavity cabinet asked to do two jobs. Five epoxy coated steel wire shelves on height adjustable stainless steel clips split between the half door section and the freezer. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. A full-length air duct and airflow guard keep cold air moving through each compartment, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on four 5 inch swivel casters with locks on the front set.

Independent Digital Controls that Hold 33°F to 54°F Chilled and -10°F to 54°F Frozen

Each compartment runs on its own multi-function digital control with an easy to read LED display, the refrigerator factory preset at 35°F and adjustable from 33°F to 54°F, the freezer preset at -4°F and adjustable from -10°F to 54°F. Dial one zone without touching the other as your menu shifts. An audible overheat alarm watches the compressors and condenser coils and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.

If the stock configuration does not match your line, Everest offers additional shelving, 3 inch locking swivel casters in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.

The dual temp drawer combo earns its keep where one cook pulls chilled product at the station while the freezer holds reserve; one footprint and one cord cover both jobs. If you want both zones on shelving instead of drawers, the two full door dual temp in the same series carries the same 22 plus 22 split, and an operation running everything at a single temperature gets more usable room from the straight two section refrigerator or freezer. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
