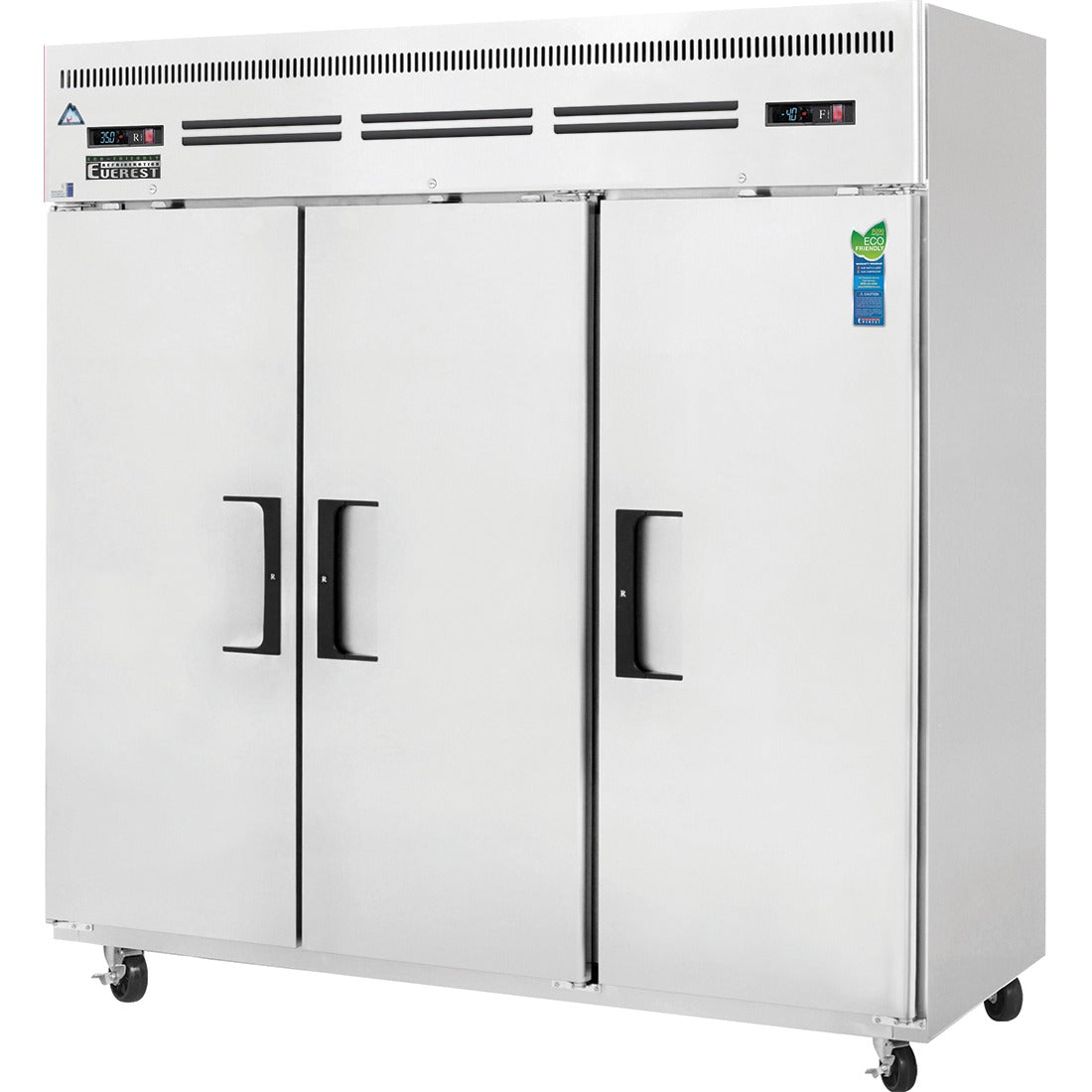

Everest ESRF3 75 In. Reach-In Dual Temp Refrigerator Freezer, 3 Solid Doors, 46 + 22 Cu. Ft., Top Mount Blizzard R290

The Everest ESRF3 is the capacity flagship of Everest's ES Series dual temp line, a 74 3/4 inch wide three door upright that gives two thirds of its volume to refrigeration and one third to freezing for full operations that prep cold in bulk and keep a serious frozen reserve. The two left doors open onto a 46 cubic foot refrigerator and the right door onto a 22 cubic foot freezer, with nine adjustable wire shelves across the three sections, so one cabinet and one cord replace a separate refrigerator and freezer on the line. At under 32 inches deep it packs that volume along the wall instead of into the corridor.

Slide-Out Blizzard R290 Cartridge that Swaps without On-Site Brazing

Each zone runs its own top mounted, self-contained Blizzard R290 cartridge, fully detachable and replaceable in the field with no on-site brazing: a 1/4+ HP unit rated 1,926 BTU per hour on the refrigerator side and a 1/2 HP unit rated 1,670 BTU per hour on the freezer side. Unlike a conventional sealed system repair that can park a cabinet out of service while a refrigeration tech opens the circuit, a cartridge swap gets the box back to work the same visit, and a problem in one zone never takes down the other. Both cartridges run natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three.

Electronically commutated fan motors pull all three sections to temperature quickly while drawing less power, and each zone defrosts the way its temperature demands: the freezer clears frost with a heater that starts on a timer and ends on temperature, while the refrigerator side uses air defrost with no heater at all. The condensate pan maintains itself with no external drain line or electric heater, auto-reverse condenser fans support compressor ventilation and help keep the coils clean between cleanings, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.

Three Solid Stainless Steel Doors with Self-Closing Torsion Hinges and Pre-Installed Locks

Each 24 inch door is heavy duty stainless steel inside and out with the same 2.5 inch high density polyurethane insulation as the cabinet walls. The freezer sits behind its own door on the right, so a frozen grab never exposes the chilled sections, and a cook working one refrigerated door leaves the other two thirds of the cabinet sealed. All three doors self-close through adjustable torsion systems for a positive seal, carry high strength recessed handles that will not catch passing carts, and come with pre-installed locks so stock stays put overnight. Frame heaters prevent exterior moisture build up around the openings, the snap-in magnetic gaskets pop out for cleaning or replacement without tools, and the doors are field reversible if your traffic flow runs the other way.

46 Cu. Ft. Refrigerator Beside a 22 Cu. Ft. Freezer Split by an Insulated Interior Wall

An insulated interior wall separates the freezer third from the refrigerated two thirds, so the frozen section holds deep frozen temperatures without dragging the chilled side below its setpoint, unlike a single-cavity cabinet asked to do two jobs. Nine epoxy coated steel wire shelves ride on height adjustable stainless steel clips, three behind each door. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the top, bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. A full-length air duct and airflow guard keep cold air moving through each compartment, and silicone coated, shatter-proof LED lighting gives bright, high color illumination with low heat output. The cabinet rolls on four 5 inch swivel casters with locks on the front set.

Independent Digital Controls that Hold 33°F to 54°F Chilled and -10°F to 54°F Frozen

Each compartment runs on its own multi-function digital control with an easy to read LED display, the refrigerator factory preset at 35°F and adjustable from 33°F to 54°F, the freezer preset at -4°F and adjustable from -10°F to 54°F. Dial one zone without touching the other as your menu shifts. An audible overheat alarm watches the compressors and condenser coils and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.

If the stock configuration does not match your line, Everest offers additional shelving, 3 inch locking swivel casters in place of the standard 5 inch set, height adjustable interchangeable legs from 3.5 to 6 inches, and a left hinged door option.

The dual temp configuration is the answer to buying two separate boxes; one footprint and one cord cover a full chilled program and a real frozen reserve. If you need equal volume at both temperatures, the half and half two door dual temps in the same series fit better, and an operation running everything at one temperature is better matched by the straight three door refrigerator or freezer. Power is a standard 115V connection on a 9 foot cord, with no dedicated high-voltage circuit needed.
