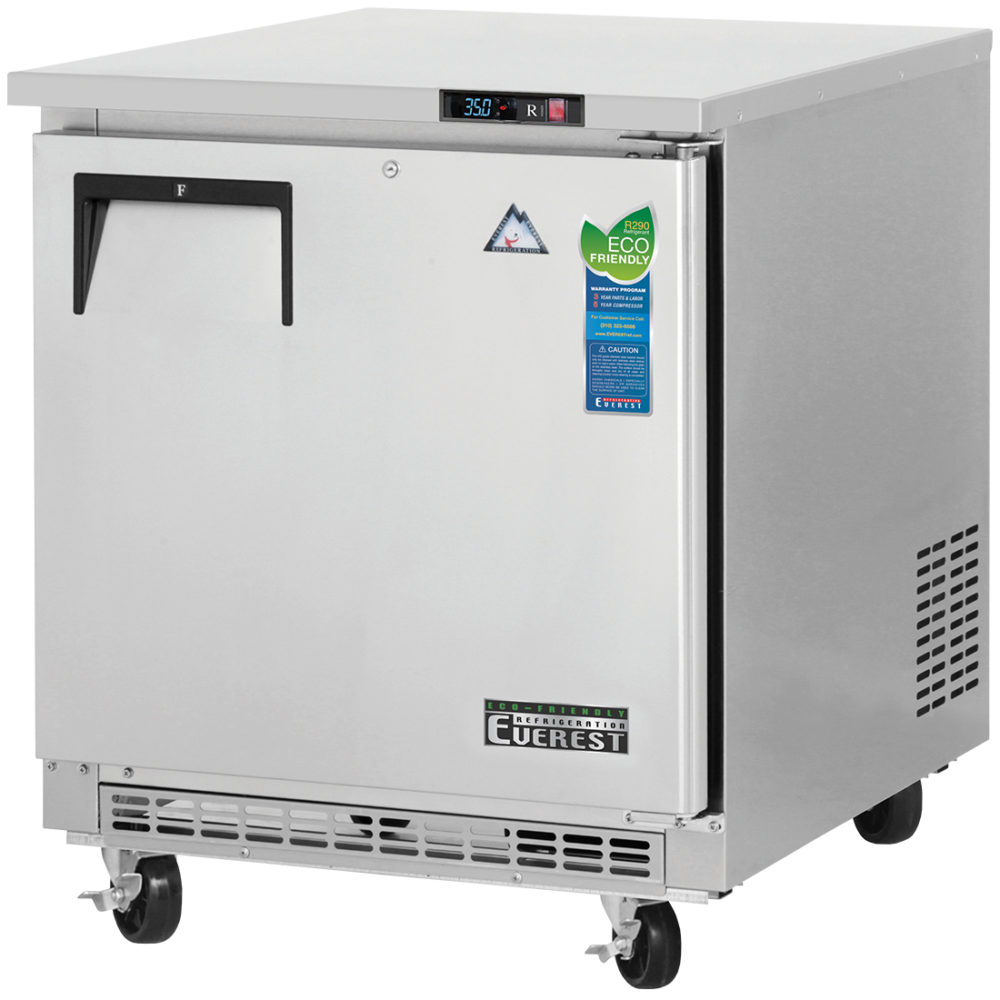

The Everest Refrigeration ETBR1 Undercounter Refrigerator
The Everest ETBR1 is the single door starting point in Everest's ETB Series of back mount undercounter refrigerators, sized for line stations and tight back-of-house corners that need 7.5 cubic feet of cold storage right where staff work. Instead of sending a cook across the kitchen to a reach-in mid-rush, this 28-inch undercounter refrigerator tucks beneath the counter or stands on its own as a tabletop workspace, with a 16 gauge stainless steel worktop up top that takes daily use. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Door with a Pre-Installed Lock
The single 26 1/2 inch wide door is heavy duty stainless steel inside and out, filled with the same 2.5 inch high density polyurethane insulation as the cabinet walls. It self-closes through an adjustable torsion system for a positive seal, and the snap-in magnetic gasket pops out for cleaning or replacement without tools. Frame heaters stop exterior moisture build up in humid kitchens, the recessed handle stays out of the walkway, and the pre-installed lock keeps stock secure overnight.
7.5 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Inside is one open compartment with two epoxy coated steel wire shelves riding on height adjustable stainless steel clips, so shelf spacing follows your containers rather than the other way around. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the walls. The cabinet body stands 30 1/4 inches tall, or 35 1/4 inches on its four 5 inch swivel casters with locks on the front set, so it rolls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your station, Everest offers additional shelving, a 4 inch high stainless steel backsplash (27 1/2 inches long) for worktop applications, a double overshelf that adds two raised 27 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, height adjustable interchangeable legs from 3.5 to 6 inches, and a left hinged door option.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product. The ETBR1 is also the narrowest cabinet in the ETB refrigerator lineup; wider two and three door siblings in the same series add sections at the same depth when one door of storage is not enough. On its standard casters the unit stands 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 2.5 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Point-of-use cold storage for line stations, tucked under the counter or standing as a worktop
-
Stores 7.5 cu. ft. of stock behind one solid stainless steel door at hand height
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals each swing with a self-closing door, adjustable torsion, and a snap-in magnetic gasket
-
Locks overnight stock down with a pre-installed door lock and a recessed handle
-
Adjusts two epoxy coated wire shelves on height adjustable stainless steel clips
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Point-of-use cold storage for line stations, tucked under the counter or standing as a worktop
Stores 7.5 cu. ft. of stock behind one solid stainless steel door at hand height
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
Breathes from the front so the cabinet sits flush against walls and under counters
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
The Everest Refrigeration ETBR1 Undercounter Refrigerator
The Everest ETBR1 is the single door starting point in Everest's ETB Series of back mount undercounter refrigerators, sized for line stations and tight back-of-house corners that need 7.5 cubic feet of cold storage right where staff work. Instead of sending a cook across the kitchen to a reach-in mid-rush, this 28-inch undercounter refrigerator tucks beneath the counter or stands on its own as a tabletop workspace, with a 16 gauge stainless steel worktop up top that takes daily use. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Door with a Pre-Installed Lock
The single 26 1/2 inch wide door is heavy duty stainless steel inside and out, filled with the same 2.5 inch high density polyurethane insulation as the cabinet walls. It self-closes through an adjustable torsion system for a positive seal, and the snap-in magnetic gasket pops out for cleaning or replacement without tools. Frame heaters stop exterior moisture build up in humid kitchens, the recessed handle stays out of the walkway, and the pre-installed lock keeps stock secure overnight.
7.5 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Inside is one open compartment with two epoxy coated steel wire shelves riding on height adjustable stainless steel clips, so shelf spacing follows your containers rather than the other way around. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the walls. The cabinet body stands 30 1/4 inches tall, or 35 1/4 inches on its four 5 inch swivel casters with locks on the front set, so it rolls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your station, Everest offers additional shelving, a 4 inch high stainless steel backsplash (27 1/2 inches long) for worktop applications, a double overshelf that adds two raised 27 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, height adjustable interchangeable legs from 3.5 to 6 inches, and a left hinged door option.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product. The ETBR1 is also the narrowest cabinet in the ETB refrigerator lineup; wider two and three door siblings in the same series add sections at the same depth when one door of storage is not enough. On its standard casters the unit stands 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 2.5 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Point-of-use cold storage for line stations, tucked under the counter or standing as a worktop
-
Stores 7.5 cu. ft. of stock behind one solid stainless steel door at hand height
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals each swing with a self-closing door, adjustable torsion, and a snap-in magnetic gasket
-
Locks overnight stock down with a pre-installed door lock and a recessed handle
-
Adjusts two epoxy coated wire shelves on height adjustable stainless steel clips
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 7.5 |
| Door Count | 1 |
| Door Style | Swing Solid |
| Door Width | 26 1/2" |
| Door Features | Self-Closing, Recessed Handle, Pre-Installed Lock |
| Door Gaskets | Snap-In Magnetic |
| Frame Heaters | Standard |
| Shelves | 2 Epoxy Coated Steel Wire |
| Shelf Clips | Height Adjustable Stainless Steel |
| Worktop | 16 Gauge Stainless Steel |
| Interior / Exterior Finish | Heavy Duty Stainless Steel, Rounded Corners |
| Bottom and Rear | Galvanized Steel |
| Insulation | 2.5" High Density Polyurethane (Cabinet and Door) |
| Interior Layout | Open Spaced, No Walls Between Compartments |
| Air Intake | Front Breathing |
| Refrigerant | R-290 |
| Compressor HP | 1/5 |
| Compressor Location | Back Mount |
| BTU/Hr | 1,655 |
| Fan Motors | Electronically Commutated (ECM) |
| Air Circulation | Full-Length Air Duct |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Pressure Relief Devices | Standard, For Rapid Cabinet Re-Entry |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 2.5 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Casters | Four 5" Swivel, Locks on Front Set |
| Exterior Length | 27 3/4" |
| Exterior Depth | 31 1/2" |
| Depth With Door Open | 56 1/2" |
| Exterior Height | 30 1/4" |
| Overall Height (With 5" Casters) | 35 1/4" |
| Crated Weight | 184 Lbs. |
| Optional Accessories | Additional Shelving, 4" Stainless Steel Backsplash (BKSPL05-00), Double Overshelf (OS20-00), 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00), Left Hinged Door |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
