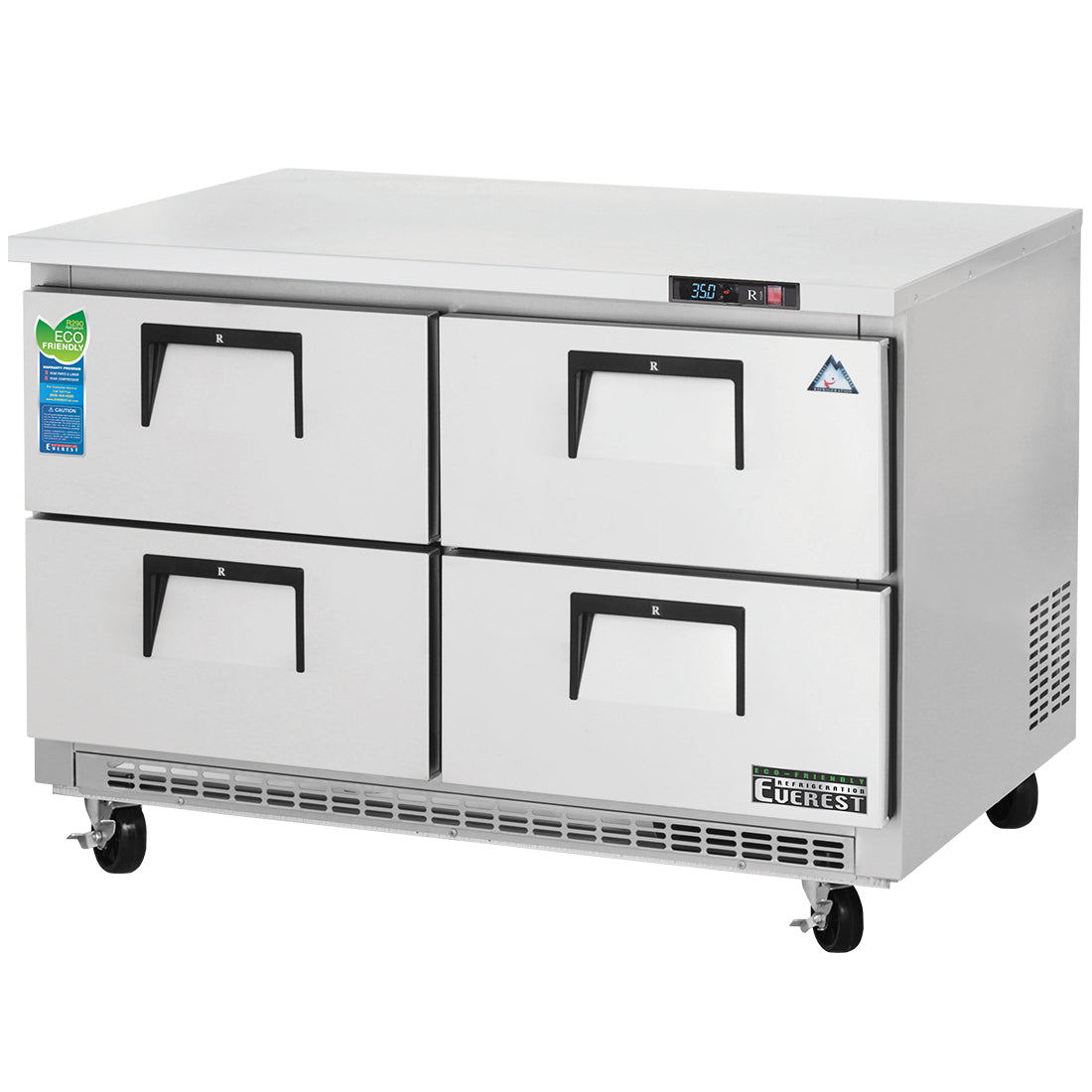

The Everest Refrigeration ETBR2-D4 Undercounter Refrigerator
The Everest ETBR2-D4 is the two section workhorse of the drawered side of Everest's ETB Series back mount undercounter line, giving two stations their own stack of refrigerated drawers in one 47 1/2 inch cabinet. Four drawers split 14 cubic feet of cold storage into per-cook pulls, so each side of the line grabs its own pans without reaching across a neighbor, and the 16 gauge stainless steel worktop doubles the footprint as a tabletop workspace. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed drawer instead of waiting out the vacuum.
Four Ball-Bearing Stainless Steel Drawers that Hold Up to Twelve Pans
The four 22 3/4 inch drawer fronts, stacked two per section, are heavy duty stainless steel inside and out with 2.5 inch high density polyurethane insulation, and each drawer rides on a thick gauge stainless steel frame with low-friction ball bearings, so a loaded drawer glides out with one hand during a rush. Together the drawers accommodate four half size, four third size, two quarter size, and two sixth size drawer pans (pans are not included), enough to portion two stations' mise at once. Snap-in magnetic gaskets pop out for cleaning, and high strength recessed handles stay out of the walkway.
14 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
The cabinet wraps 14 cubic feet of drawer storage in heavy duty stainless steel inside and out, with rounded corners that will not snag knuckles or towels, a galvanized steel bottom and rear, and 2.5 inch high density polyurethane insulation in the walls. The 16 gauge stainless steel worktop takes cutting boards and countertop equipment across its full four foot run, and the body stands 30 1/8 inches tall before casters, about 35 1/4 inches rolling on its four 5 inch swivel casters with locks on the front set, so it pulls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your line, Everest offers a 4 inch high stainless steel backsplash (47 1/2 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 47 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product, and drawer pans are not included. Drawers trade shelf flexibility for pan access; the same width ETBR2 door model carries wire shelves for boxed stock, the single section two drawer models save floor space, and the 59 1/2 inch four drawer sibling stretches each drawer wider. On its standard casters the unit stands about 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 2.6 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Per-station drawer access for two-cook lines that pull pans without a swing door
-
Fits up to twelve pans, from half to sixth size, across four drawers, pans not included
-
Glides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
-
Splits 14 cu. ft. into two drawer stacks so each cook owns a section
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Cleans up fast with snap-in magnetic drawer gaskets and recessed handles
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Per-station drawer access for two-cook lines that pull pans without a swing door
Fits up to twelve pans, from half to sixth size, across four drawers, pans not included
Glides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
Splits 14 cu. ft. into two drawer stacks so each cook owns a section
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
The Everest Refrigeration ETBR2-D4 Undercounter Refrigerator
The Everest ETBR2-D4 is the two section workhorse of the drawered side of Everest's ETB Series back mount undercounter line, giving two stations their own stack of refrigerated drawers in one 47 1/2 inch cabinet. Four drawers split 14 cubic feet of cold storage into per-cook pulls, so each side of the line grabs its own pans without reaching across a neighbor, and the 16 gauge stainless steel worktop doubles the footprint as a tabletop workspace. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed drawer instead of waiting out the vacuum.
Four Ball-Bearing Stainless Steel Drawers that Hold Up to Twelve Pans
The four 22 3/4 inch drawer fronts, stacked two per section, are heavy duty stainless steel inside and out with 2.5 inch high density polyurethane insulation, and each drawer rides on a thick gauge stainless steel frame with low-friction ball bearings, so a loaded drawer glides out with one hand during a rush. Together the drawers accommodate four half size, four third size, two quarter size, and two sixth size drawer pans (pans are not included), enough to portion two stations' mise at once. Snap-in magnetic gaskets pop out for cleaning, and high strength recessed handles stay out of the walkway.
14 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
The cabinet wraps 14 cubic feet of drawer storage in heavy duty stainless steel inside and out, with rounded corners that will not snag knuckles or towels, a galvanized steel bottom and rear, and 2.5 inch high density polyurethane insulation in the walls. The 16 gauge stainless steel worktop takes cutting boards and countertop equipment across its full four foot run, and the body stands 30 1/8 inches tall before casters, about 35 1/4 inches rolling on its four 5 inch swivel casters with locks on the front set, so it pulls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your line, Everest offers a 4 inch high stainless steel backsplash (47 1/2 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 47 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product, and drawer pans are not included. Drawers trade shelf flexibility for pan access; the same width ETBR2 door model carries wire shelves for boxed stock, the single section two drawer models save floor space, and the 59 1/2 inch four drawer sibling stretches each drawer wider. On its standard casters the unit stands about 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 2.6 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Per-station drawer access for two-cook lines that pull pans without a swing door
-
Fits up to twelve pans, from half to sixth size, across four drawers, pans not included
-
Glides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
-
Splits 14 cu. ft. into two drawer stacks so each cook owns a section
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Cleans up fast with snap-in magnetic drawer gaskets and recessed handles
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 14 |
| Door Style | Drawer |
| Drawer Count | 4 (2 Per Section) |
| Drawer Front Width | 22 3/4" Each |
| Drawer Pan Capacity | Four 1/2 Size, Four 1/3 Size, Two 1/4 Size, Two 1/6 Size (Pans Not Included) |
| Drawer Frames | Thick Gauge Stainless Steel, Low-Friction Ball Bearings |
| Drawer Construction | Heavy Duty Stainless Steel Interior/Exterior, 2.5" Insulation |
| Drawer Gaskets | Snap-In Magnetic |
| Drawer Handles | High Strength, Recessed |
| Worktop | 16 Gauge Stainless Steel |
| Interior / Exterior Finish | Heavy Duty Stainless Steel, Rounded Corners |
| Bottom and Rear | Galvanized Steel |
| Insulation | 2.5" High Density Polyurethane (Cabinet and Drawers) |
| Interior Layout | Open Spaced, No Walls Between Compartments |
| Air Intake | Front Breathing |
| Refrigerant | R-290 |
| Compressor HP | 1/5 |
| Compressor Location | Back Mount |
| BTU/Hr | 1,655 |
| Fan Motors | Electronically Commutated (ECM) |
| Air Circulation | Full-Length Air Duct |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Pressure Relief Devices | Standard, For Rapid Cabinet Re-Entry |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 2.6 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Casters | Four 5" Swivel, Locks on Front Set |
| Exterior Length | 47 1/2" |
| Exterior Depth | 31 1/2" |
| Depth With Drawer Open | 52" |
| Exterior Height | 30 1/8" |
| Overall Height (With 5" Casters) | 35 1/4" |
| Crated Weight | 299 Lbs. |
| Optional Accessories | 4" Stainless Steel Backsplash (BKSPL02-00), Double Overshelf (OS22-00), 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00) |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
