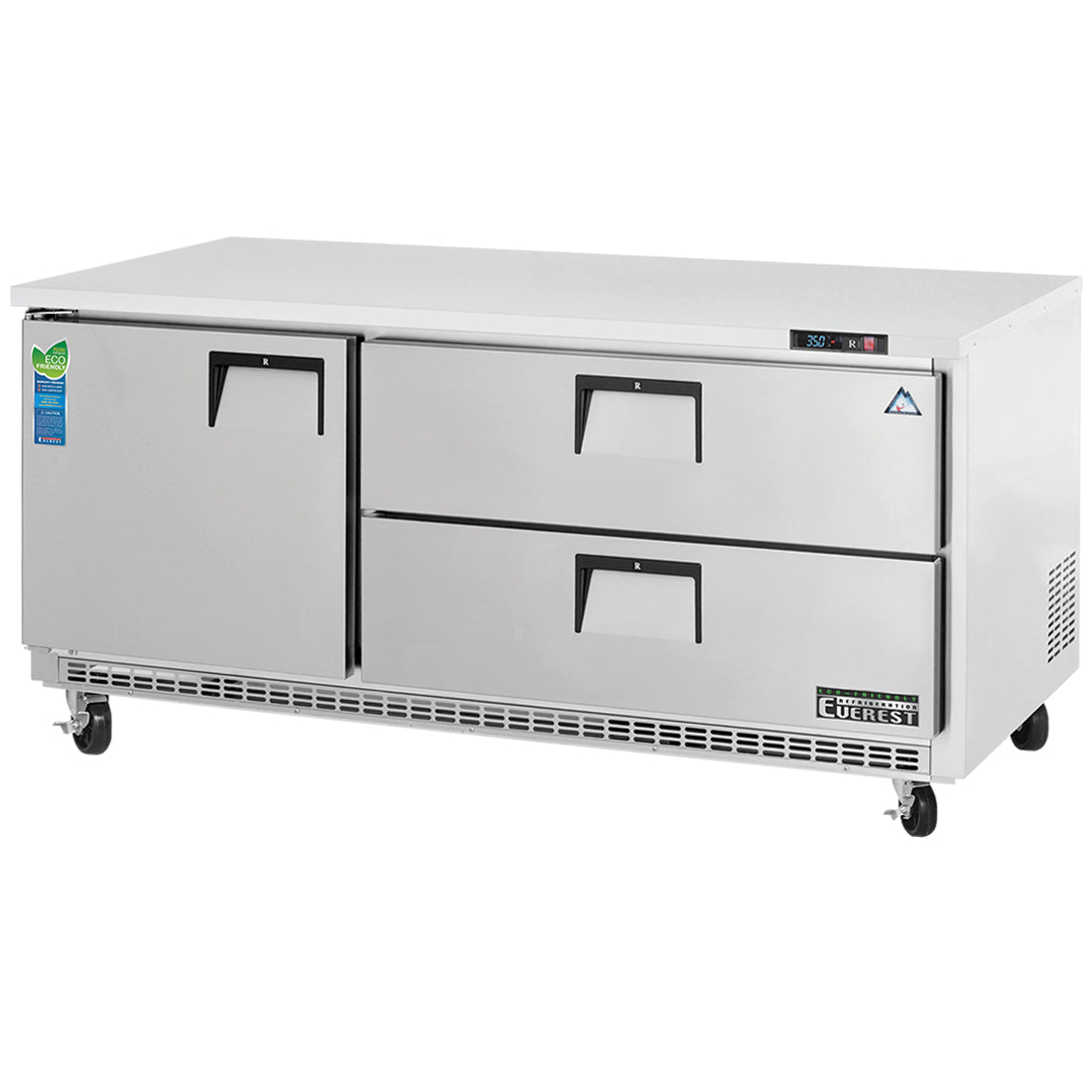

The Everest Refrigeration ETBR3-D2 Undercounter Refrigerator
The Everest ETBR3-D2 is the door and drawer combo of Everest's ETB Series back mount undercounter line, splitting a 71 1/8 inch cabinet between a shelved door section and a stack of two wide refrigerated drawers. Lines that keep boxed backup stock and ready-to-pull pans in the same station get both in one box: 22 cubic feet of cold storage, drawer pans at hand height, shelves behind the door, and a 16 gauge stainless steel worktop running nearly six feet as a tabletop workspace. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The 1/3 HP cartridge moves 2,311 BTU per hour to keep the long cavity covered, and it runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three. The unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door or drawer instead of waiting out the vacuum.
One Solid Stainless Steel Door Beside Two Wide Ball-Bearing Drawers
The 26 1/2 inch door and both 41 1/8 inch drawer fronts are heavy duty stainless steel inside and out with 2.5 inch high density polyurethane insulation. Each drawer rides on a thick gauge stainless steel frame with low-friction ball bearings, so a loaded drawer glides out with one hand during a rush, and together the drawers accommodate two half size, eight third size, one quarter size, and four sixth size drawer pans (pans are not included). Snap-in magnetic gaskets on the door and drawers pop out for cleaning, and high strength recessed handles stay out of the walkway.
22 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Behind the door, two epoxy coated steel wire shelves ride on height adjustable stainless steel clips for boxed and odd-shaped stock that drawers handle poorly. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the walls. The body stands 30 1/8 inches tall before casters, about 35 1/4 inches rolling on its four 5 inch swivel casters with locks on the front set, so it pulls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your line, Everest offers additional shelving, a 4 inch high stainless steel backsplash (71 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 71 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product, and drawer pans are not included. A 71 1/8 inch cabinet wants a long, straight run; if your station needs only one access style, the all-door ETBR3 carries six shelves at the same width, and the shorter all-drawer models trim the footprint. On its standard casters the unit stands about 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 3.7 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Door and drawer combo for lines keeping boxed backup and pull-ready pans in one station
-
Fits up to fifteen pans, from half to sixth size, across two wide drawers, pans not included
-
Glides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
-
Shelves boxed stock behind a 26 1/2 in. solid door on two adjustable wire shelves
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Covers the long cavity with a 1/3 HP cartridge moving 2,311 BTU per hour
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Cleans up fast with snap-in magnetic door and drawer gaskets and recessed handles
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Door and drawer combo for lines keeping boxed backup and pull-ready pans in one station
Fits up to fifteen pans, from half to sixth size, across two wide drawers, pans not included
Glides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
Shelves boxed stock behind a 26 1/2 in. solid door on two adjustable wire shelves
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
The Everest Refrigeration ETBR3-D2 Undercounter Refrigerator
The Everest ETBR3-D2 is the door and drawer combo of Everest's ETB Series back mount undercounter line, splitting a 71 1/8 inch cabinet between a shelved door section and a stack of two wide refrigerated drawers. Lines that keep boxed backup stock and ready-to-pull pans in the same station get both in one box: 22 cubic feet of cold storage, drawer pans at hand height, shelves behind the door, and a 16 gauge stainless steel worktop running nearly six feet as a tabletop workspace. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The 1/3 HP cartridge moves 2,311 BTU per hour to keep the long cavity covered, and it runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three. The unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door or drawer instead of waiting out the vacuum.
One Solid Stainless Steel Door Beside Two Wide Ball-Bearing Drawers
The 26 1/2 inch door and both 41 1/8 inch drawer fronts are heavy duty stainless steel inside and out with 2.5 inch high density polyurethane insulation. Each drawer rides on a thick gauge stainless steel frame with low-friction ball bearings, so a loaded drawer glides out with one hand during a rush, and together the drawers accommodate two half size, eight third size, one quarter size, and four sixth size drawer pans (pans are not included). Snap-in magnetic gaskets on the door and drawers pop out for cleaning, and high strength recessed handles stay out of the walkway.
22 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Behind the door, two epoxy coated steel wire shelves ride on height adjustable stainless steel clips for boxed and odd-shaped stock that drawers handle poorly. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the walls. The body stands 30 1/8 inches tall before casters, about 35 1/4 inches rolling on its four 5 inch swivel casters with locks on the front set, so it pulls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your line, Everest offers additional shelving, a 4 inch high stainless steel backsplash (71 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 71 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product, and drawer pans are not included. A 71 1/8 inch cabinet wants a long, straight run; if your station needs only one access style, the all-door ETBR3 carries six shelves at the same width, and the shorter all-drawer models trim the footprint. On its standard casters the unit stands about 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 3.7 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Door and drawer combo for lines keeping boxed backup and pull-ready pans in one station
-
Fits up to fifteen pans, from half to sixth size, across two wide drawers, pans not included
-
Glides loaded drawers on thick gauge stainless steel frames with low-friction ball bearings
-
Shelves boxed stock behind a 26 1/2 in. solid door on two adjustable wire shelves
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Covers the long cavity with a 1/3 HP cartridge moving 2,311 BTU per hour
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Cleans up fast with snap-in magnetic door and drawer gaskets and recessed handles
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 22 |
| Door Style | Swing Solid + Drawer |
| Door Count | 1 |
| Drawer Count | 2 |
| Door Width | 26 1/2" |
| Drawer Front Width | 41 1/8" Each |
| Drawer Pan Capacity | Two 1/2 Size, Eight 1/3 Size, One 1/4 Size, Four 1/6 Size (Pans Not Included) |
| Drawer Frames | Thick Gauge Stainless Steel, Low-Friction Ball Bearings |
| Door and Drawer Construction | Heavy Duty Stainless Steel Interior/Exterior, 2.5" Insulation |
| Door and Drawer Gaskets | Snap-In Magnetic |
| Handles | High Strength, Recessed |
| Shelves | 2 Epoxy Coated Steel Wire (Door Section) |
| Shelf Clips | Height Adjustable Stainless Steel |
| Worktop | 16 Gauge Stainless Steel |
| Interior / Exterior Finish | Heavy Duty Stainless Steel, Rounded Corners |
| Bottom and Rear | Galvanized Steel |
| Insulation | 2.5" High Density Polyurethane |
| Interior Layout | Open Spaced, No Walls Between Compartments |
| Air Intake | Front Breathing |
| Refrigerant | R-290 |
| Compressor HP | 1/3 |
| Compressor Location | Back Mount |
| BTU/Hr | 2,311 |
| Fan Motors | Electronically Commutated (ECM) |
| Air Circulation | Full-Length Air Duct |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Pressure Relief Devices | Standard, For Rapid Cabinet Re-Entry |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 3.7 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Casters | Four 5" Swivel, Locks on Front Set |
| Exterior Length | 71 1/8" |
| Exterior Depth | 31 1/2" |
| Depth With Door Open | 56 5/8" |
| Depth With Drawer Open | 52" |
| Exterior Height | 30 1/8" |
| Overall Height (With 5" Casters) | 35 1/4" |
| Crated Weight | 374 Lbs. |
| Optional Accessories | Additional Shelving, 4" Stainless Steel Backsplash (BKSPL04-00), Double Overshelf (OS24-00), 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00) |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
