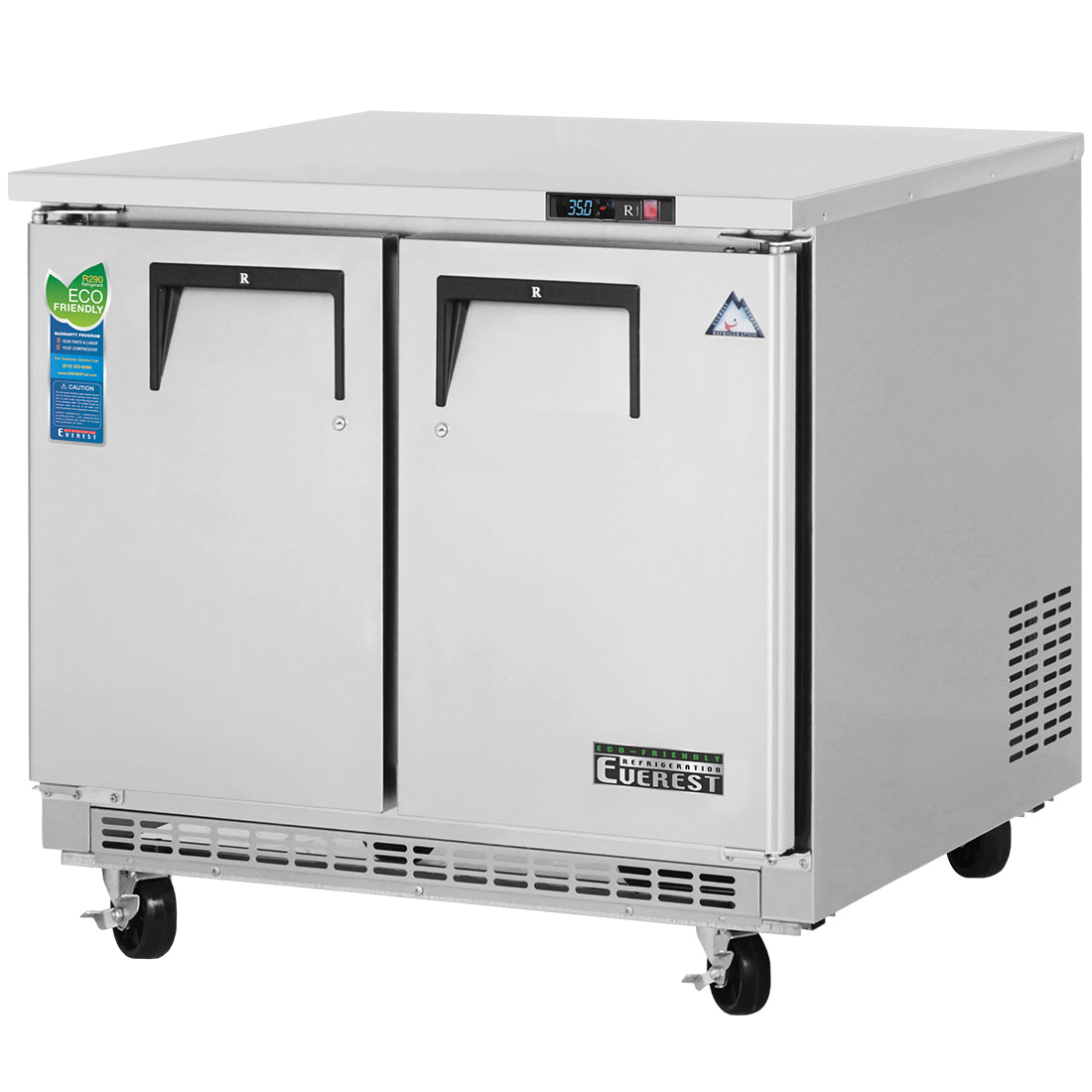

The Everest Refrigeration ETBSR2 Undercounter Refrigerator
The Everest ETBSR2 is the most compact two door model in Everest's ETB Series of back mount undercounter refrigerators, built for line stations that want split door access to 10 cubic feet of cold storage in just 35 5/8 inches of width. Two cooks can each work out of their own 17 inch door without crossing reach, and the 16 gauge stainless steel worktop up top means the cabinet earns its footprint twice, as storage below and as a tabletop workspace above. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
Two Solid Stainless Steel Doors with Pre-Installed Locks
Each 17 inch wide door is heavy duty stainless steel inside and out, filled with the same 2.5 inch high density polyurethane insulation as the cabinet walls. The narrow leaves swing short, so the cabinet needs only 47 inches of depth with a door open, compared to 56 1/2 inches for the wide single door model in this series. Both doors self-close through an adjustable torsion system for a positive seal, the snap-in magnetic gaskets pop out for cleaning or replacement without tools, frame heaters stop exterior moisture build up, and recessed handles and pre-installed locks keep the aisle clear and the stock secure.
10 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Behind both doors is one open compartment with no wall between sections, so wide containers can bridge the middle, with four epoxy coated steel wire shelves, two per section, riding on height adjustable stainless steel clips. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the walls. The cabinet body stands 30 1/4 inches tall, or 35 1/4 inches on its four 5 inch swivel casters with locks on the front set, so it rolls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your station, Everest offers additional shelving, a 4 inch high stainless steel backsplash (35 1/2 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 35 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product. The two 17 inch doors favor split access over wide loading; the 27 3/4 inch single door sibling offers a wider single opening, and the 47 1/2 inch and larger two and three door models in the series carry more capacity per section. On its standard casters the unit stands 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 2.6 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Split door cold storage for line stations, tucked under the counter or standing as a worktop
-
Stores 10 cu. ft. behind two slim 17 in. doors so two cooks work without crossing reach
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Clears tight aisles with short door swings needing just 47 in. of open-door depth
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals each swing with self-closing doors, adjustable torsion, and snap-in magnetic gaskets
-
Locks overnight stock down with pre-installed door locks and recessed handles
-
Adjusts four epoxy coated wire shelves on height adjustable stainless steel clips
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Split door cold storage for line stations, tucked under the counter or standing as a worktop
Stores 10 cu. ft. behind two slim 17 in. doors so two cooks work without crossing reach
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
Breathes from the front so the cabinet sits flush against walls and under counters
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
The Everest Refrigeration ETBSR2 Undercounter Refrigerator
The Everest ETBSR2 is the most compact two door model in Everest's ETB Series of back mount undercounter refrigerators, built for line stations that want split door access to 10 cubic feet of cold storage in just 35 5/8 inches of width. Two cooks can each work out of their own 17 inch door without crossing reach, and the 16 gauge stainless steel worktop up top means the cabinet earns its footprint twice, as storage below and as a tabletop workspace above. Because the condensing unit breathes from the front, the cabinet sits flush against walls and under counters without starving the compressor for air.
Back Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The condensing unit is a back mounted, self-contained Blizzard R290 cartridge that is fully detachable and replaceable in the field with no on-site brazing. Unlike a conventional sealed system repair that can park a cabinet out of service while a tech opens the refrigerant circuit, a cartridge swap gets the box back to work the same visit. The cartridge runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature quickly while drawing less power, and a full-length air duct keeps cold air circulating through the whole cavity. The auto defrost cycle starts on a timer and ends on temperature, so it runs only as long as the coil needs. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
Two Solid Stainless Steel Doors with Pre-Installed Locks
Each 17 inch wide door is heavy duty stainless steel inside and out, filled with the same 2.5 inch high density polyurethane insulation as the cabinet walls. The narrow leaves swing short, so the cabinet needs only 47 inches of depth with a door open, compared to 56 1/2 inches for the wide single door model in this series. Both doors self-close through an adjustable torsion system for a positive seal, the snap-in magnetic gaskets pop out for cleaning or replacement without tools, frame heaters stop exterior moisture build up, and recessed handles and pre-installed locks keep the aisle clear and the stock secure.
10 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Behind both doors is one open compartment with no wall between sections, so wide containers can bridge the middle, with four epoxy coated steel wire shelves, two per section, riding on height adjustable stainless steel clips. The interior and exterior are heavy duty stainless steel with rounded corners that will not snag knuckles or towels, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the walls. The cabinet body stands 30 1/4 inches tall, or 35 1/4 inches on its four 5 inch swivel casters with locks on the front set, so it rolls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships factory preset at 35°F and adjusts anywhere from 33°F to 54°F. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your station, Everest offers additional shelving, a 4 inch high stainless steel backsplash (35 1/2 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 35 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind this is a refrigerator only, holding 33°F to 54°F, so it will not carry frozen product. The two 17 inch doors favor split access over wide loading; the 27 3/4 inch single door sibling offers a wider single opening, and the 47 1/2 inch and larger two and three door models in the series carry more capacity per section. On its standard casters the unit stands 35 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 2.6 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Split door cold storage for line stations, tucked under the counter or standing as a worktop
-
Stores 10 cu. ft. behind two slim 17 in. doors so two cooks work without crossing reach
-
Swaps the entire Blizzard R290 cooling cartridge in the field without on-site brazing
-
Breathes from the front so the cabinet sits flush against walls and under counters
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Holds product anywhere from 33°F to 54°F on a digital controller preset at 35°F
-
Clears tight aisles with short door swings needing just 47 in. of open-door depth
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts on a time-initiated, temperature-terminated cycle with no operator input
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals each swing with self-closing doors, adjustable torsion, and snap-in magnetic gaskets
-
Locks overnight stock down with pre-installed door locks and recessed handles
-
Adjusts four epoxy coated wire shelves on height adjustable stainless steel clips
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset Temperature | 35°F |
| Net Capacity (Cu. Ft.) | 10 |
| Door Count | 2 |
| Door Style | Swing Solid |
| Door Width | 17" Each |
| Door Features | Self-Closing, Recessed Handles, Pre-Installed Locks |
| Door Gaskets | Snap-In Magnetic |
| Frame Heaters | Standard |
| Shelves | 4 Epoxy Coated Steel Wire (2 Per Section) |
| Shelf Clips | Height Adjustable Stainless Steel |
| Worktop | 16 Gauge Stainless Steel |
| Interior / Exterior Finish | Heavy Duty Stainless Steel, Rounded Corners |
| Bottom and Rear | Galvanized Steel |
| Insulation | 2.5" High Density Polyurethane (Cabinet and Doors) |
| Interior Layout | Open Spaced, No Walls Between Compartments |
| Air Intake | Front Breathing |
| Refrigerant | R-290 |
| Compressor HP | 1/5 |
| Compressor Location | Back Mount |
| BTU/Hr | 1,655 |
| Fan Motors | Electronically Commutated (ECM) |
| Air Circulation | Full-Length Air Duct |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Pressure Relief Devices | Standard, For Rapid Cabinet Re-Entry |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 2.6 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Casters | Four 5" Swivel, Locks on Front Set |
| Exterior Length | 35 5/8" |
| Exterior Depth | 31 1/2" |
| Depth With Doors Open | 47" |
| Exterior Height | 30 1/4" |
| Overall Height (With 5" Casters) | 35 1/4" |
| Crated Weight | 216 Lbs. |
| Optional Accessories | Additional Shelving, 4" Stainless Steel Backsplash (BKSPL01-00), Double Overshelf (OS21-00), 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00) |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
NSF Approved
-
ETL US & Canada
-
ETL Sanitation
