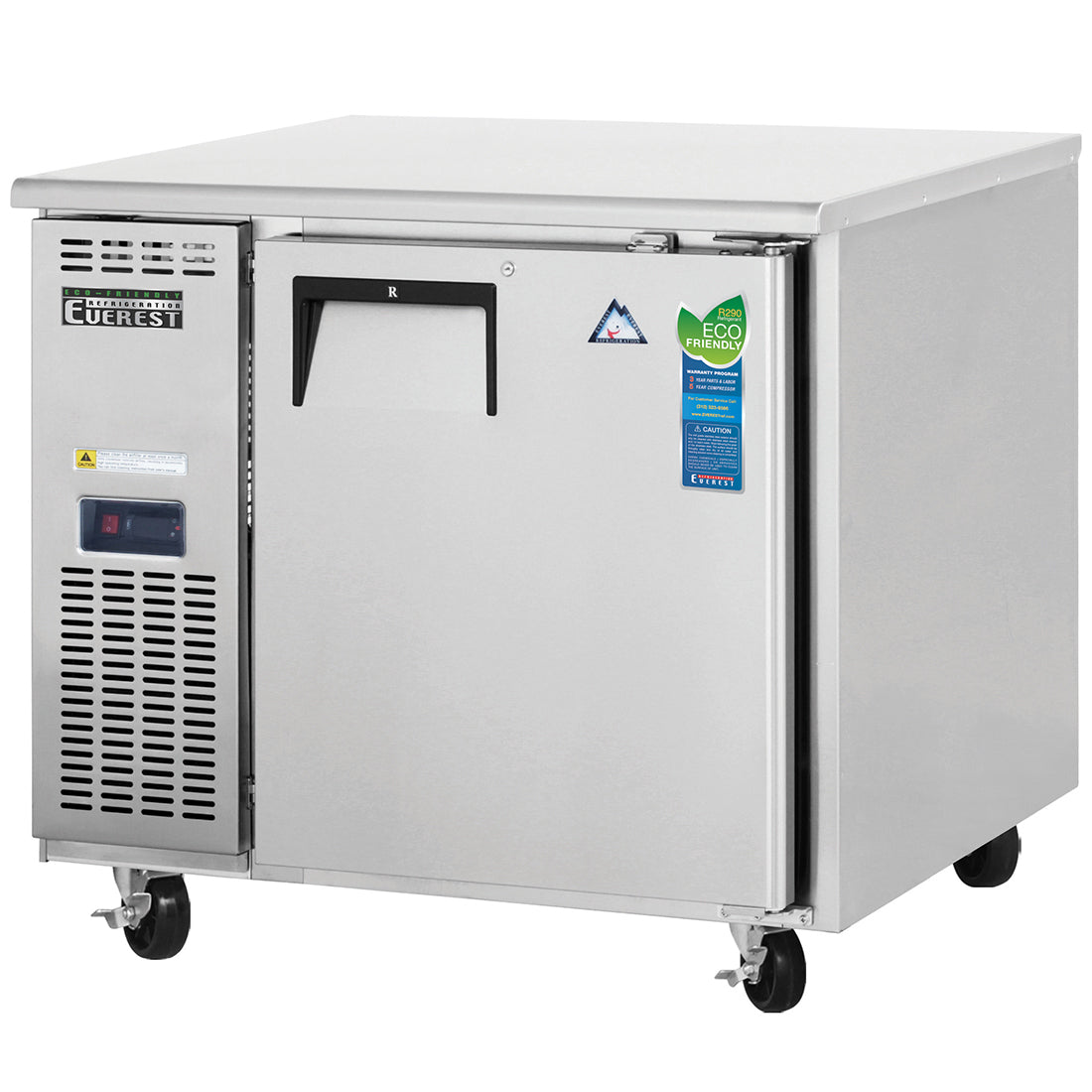

The Everest Refrigeration ETR1 Undercounter Refrigerator
The Everest ETR1 is the single door entry point to the ET Series of side mount undercounter refrigerators, putting 9 cubic feet of chilled storage and a 16 gauge stainless steel worktop into one 35 5/8 inch cabinet that works as counter space and cold storage at the same time. Park it at a line station and the cook preps on top while the shift's backup stock waits behind the locking door below. The condensing unit rides in a housing at the left end and breathes through the front grille, so the cabinet backs flush against a wall or tucks under a counter in the standard 31 1/2 inch deep undercounter line.
Side Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The cooling system is a side mounted, self-contained and fully detachable Blizzard R290 condensing unit, and because the whole cartridge slides out, a service tech can replace the entire sealed system without on-site brazing instead of parking the box for days over a compressor problem. The 1/4+ horsepower compressor is rated at 1,926 BTU per hour and runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature while drawing less power, and a full-length air duct keeps cold air circulating evenly instead of pooling near the evaporator. Defrost runs automatically on a time-initiated, temperature-terminated cycle, the self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Door with a Pre-Installed Lock
The 22 3/4 inch door is heavy duty stainless steel inside and out with 2.5 inch high density polyurethane insulation, so it shrugs off cart strikes the way lighter panels cannot. It self-closes through an adjustable torsion system for a positive seal, the snap-in magnetic gasket pops out for cleaning or replacement without tools, and frame heaters stop exterior moisture build up around the opening. The high strength recessed handle stays out of the walkway, and the pre-installed lock keeps stock secure after close.
9 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Behind the door is an open spaced interior with no walls between compartments, so pans and bins of prepped product slide in without fighting dividers. Two epoxy coated steel wire shelves sit on height adjustable stainless steel clips, and silicone coated, shatter-proof LED lighting throws bright, high color light through the cavity while adding almost no heat. The interior and exterior are heavy duty stainless steel with rounded corners, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. The body stands 29 1/4 inches tall, or 34 1/4 inches on its four 5 inch swivel casters with locks on the front set, so it rolls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships preset at 35°F and adjusts anywhere from 33°F to 54°F, covering everything from delicate produce to backup dairy. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your station, Everest offers additional shelving, a 4 inch high stainless steel backsplash (35 1/2 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 33 by 13.5 inch shelves above the worktop, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind the ETR1 holds refrigerated temperatures only, with a floor of 33°F, so frozen product belongs in the matching ETF1 freezer instead. This is the narrowest cabinet in the side mount line; the two door ETR2 and ETWR2 and the three door ETR3 add capacity for bigger stations, while the ETR1-24 carries the same single door layout in a shallower 24 inch depth class for aisles that cannot give up a full depth cabinet. On its standard casters the unit stands 34 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 3.5 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Chilled point-of-use storage for line stations, prep corners, and under-counter installs
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Swaps the entire side mounted Blizzard R290 cartridge without on-site brazing
-
Holds 9 cu. ft. of stock behind one locking solid stainless steel door
-
Tunes from 33°F to 54°F on a digital controller with an audible overheat alarm
-
Backs flush against walls with a front breathing condensing unit at the left end
-
Lights the cavity with silicone coated, shatter-proof LED strips with low heat output
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts automatically on a time-initiated, temperature-terminated cycle without interrupting service
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals each swing with a self-closing door, adjustable torsion, and a snap-in magnetic gasket
-
Adjusts two epoxy coated wire shelves on height adjustable stainless steel clips
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Chilled point-of-use storage for line stations, prep corners, and under-counter installs
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
Swaps the entire side mounted Blizzard R290 cartridge without on-site brazing
Holds 9 cu. ft. of stock behind one locking solid stainless steel door
Tunes from 33°F to 54°F on a digital controller with an audible overheat alarm
The Everest Refrigeration ETR1 Undercounter Refrigerator
The Everest ETR1 is the single door entry point to the ET Series of side mount undercounter refrigerators, putting 9 cubic feet of chilled storage and a 16 gauge stainless steel worktop into one 35 5/8 inch cabinet that works as counter space and cold storage at the same time. Park it at a line station and the cook preps on top while the shift's backup stock waits behind the locking door below. The condensing unit rides in a housing at the left end and breathes through the front grille, so the cabinet backs flush against a wall or tucks under a counter in the standard 31 1/2 inch deep undercounter line.
Side Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing
The cooling system is a side mounted, self-contained and fully detachable Blizzard R290 condensing unit, and because the whole cartridge slides out, a service tech can replace the entire sealed system without on-site brazing instead of parking the box for days over a compressor problem. The 1/4+ horsepower compressor is rated at 1,926 BTU per hour and runs natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.
Electronically commutated fan motors pull the cabinet down to temperature while drawing less power, and a full-length air duct keeps cold air circulating evenly instead of pooling near the evaporator. Defrost runs automatically on a time-initiated, temperature-terminated cycle, the self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.
One Solid Stainless Steel Door with a Pre-Installed Lock
The 22 3/4 inch door is heavy duty stainless steel inside and out with 2.5 inch high density polyurethane insulation, so it shrugs off cart strikes the way lighter panels cannot. It self-closes through an adjustable torsion system for a positive seal, the snap-in magnetic gasket pops out for cleaning or replacement without tools, and frame heaters stop exterior moisture build up around the opening. The high strength recessed handle stays out of the walkway, and the pre-installed lock keeps stock secure after close.
9 Cu. Ft. Open Interior Under a 16 Gauge Stainless Steel Worktop
Behind the door is an open spaced interior with no walls between compartments, so pans and bins of prepped product slide in without fighting dividers. Two epoxy coated steel wire shelves sit on height adjustable stainless steel clips, and silicone coated, shatter-proof LED lighting throws bright, high color light through the cavity while adding almost no heat. The interior and exterior are heavy duty stainless steel with rounded corners, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the cabinet walls. The body stands 29 1/4 inches tall, or 34 1/4 inches on its four 5 inch swivel casters with locks on the front set, so it rolls out for cleaning and locks in place during service.
Digital Controller that Holds 33°F to 54°F with an Overheat Alarm
A multi-function digital controller with an easy to read LED display ships preset at 35°F and adjusts anywhere from 33°F to 54°F, covering everything from delicate produce to backup dairy. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.
If the stock setup does not match your station, Everest offers additional shelving, a 4 inch high stainless steel backsplash (35 1/2 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 33 by 13.5 inch shelves above the worktop, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.
Keep in mind the ETR1 holds refrigerated temperatures only, with a floor of 33°F, so frozen product belongs in the matching ETF1 freezer instead. This is the narrowest cabinet in the side mount line; the two door ETR2 and ETWR2 and the three door ETR3 add capacity for bigger stations, while the ETR1-24 carries the same single door layout in a shallower 24 inch depth class for aisles that cannot give up a full depth cabinet. On its standard casters the unit stands 34 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 3.5 amps on a 9 foot cord, with no dedicated circuit needed.
Features & Benefits
-
Chilled point-of-use storage for line stations, prep corners, and under-counter installs
-
Doubles as a tabletop workspace with a 16 gauge high quality stainless steel worktop
-
Swaps the entire side mounted Blizzard R290 cartridge without on-site brazing
-
Holds 9 cu. ft. of stock behind one locking solid stainless steel door
-
Tunes from 33°F to 54°F on a digital controller with an audible overheat alarm
-
Backs flush against walls with a front breathing condensing unit at the left end
-
Lights the cavity with silicone coated, shatter-proof LED strips with low heat output
-
Cuts energy draw with ECM fan motors and a full-length cold air duct
-
Defrosts automatically on a time-initiated, temperature-terminated cycle without interrupting service
-
Drains condensate into a self-maintaining pan with no external drain or electric heater
-
Seals each swing with a self-closing door, adjustable torsion, and a snap-in magnetic gasket
-
Adjusts two epoxy coated wire shelves on height adjustable stainless steel clips
-
Rolls on four 5 in. swivel casters with locks on the front set
-
Plugs in pre-wired and ready to run on a 9 ft cord, no electrician needed
Resources & Downloads
Specifications
| Temp Type | Refrigerator |
| Temperature Range | 33°F to 54°F |
| Factory Preset | 35°F |
| Cu. Ft. Capacity | 9 |
| Interior Layout | Open Spaced, No Walls Between Compartments |
| Door Count | 1 |
| Door Style | Swing Solid |
| Door Width | 22 3/4" |
| Door Features | Self-Closing, Recessed Handle, Pre-Installed Lock |
| Door Gaskets | Snap-In Magnetic |
| Frame Heaters | Standard |
| Shelves | 2 Epoxy Coated Steel Wire |
| Shelf Clips | Height Adjustable Stainless Steel |
| Lighting | Silicone Coated, Shatter-Proof LED |
| Worktop | 16 Gauge Stainless Steel |
| Interior / Exterior Finish | Heavy Duty Stainless Steel, Rounded Corners |
| Bottom and Rear | Galvanized Steel |
| Insulation | 2.5" High Density Polyurethane (Cabinet and Door) |
| Refrigerant | R-290 |
| Compressor HP | 1/4+ |
| Compressor Location | Side Mount |
| BTU/Hr | 1,926 |
| Fan Motors | Electronically Commutated (ECM) |
| Air Circulation | Full-Length Air Duct |
| Condenser and Evaporator Coils | Large Capacity, Corrosion-Resistant |
| Condenser Fan | High Performance, Auto-Reverse |
| Defrost | Auto, Time-Initiated and Temperature-Terminated |
| Condensate Management | Self-Maintaining Drain Pan, No External Drain or Heater |
| Pressure Relief Devices | Standard, For Rapid Cabinet Re-Entry |
| Overheat Alarm | Audible, Compressor and Condenser Coil |
| Power (V-Hz-Ph) | 115-60-1 |
| Full Load Amps | 3.5 |
| NEMA Plug Type | NEMA 5-15P |
| Cord Length | 9 Ft. |
| Feed Wires | 3 With Ground |
| Casters | Four 5" Swivel, Locks on Front Set |
| Exterior Length | 35 5/8" |
| Exterior Depth | 31 1/2" |
| Depth With Door Open | 52 3/4" |
| Exterior Height | 29 1/4" |
| Overall Height (With 5" Casters) | 34 1/4" |
| Crated Weight | 210 Lbs. |
| Optional Accessories | Additional Shelving, 4" Stainless Steel Backsplash (BKSPL01-00), Double Overshelf (OS25-00), 3" Caster Assembly (CASA3-01), 3.5"-6" Interchangeable Legs (AJL03-00) |
Manufacturer's Warranty
-
10 Year
Compressor
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Electrical
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
