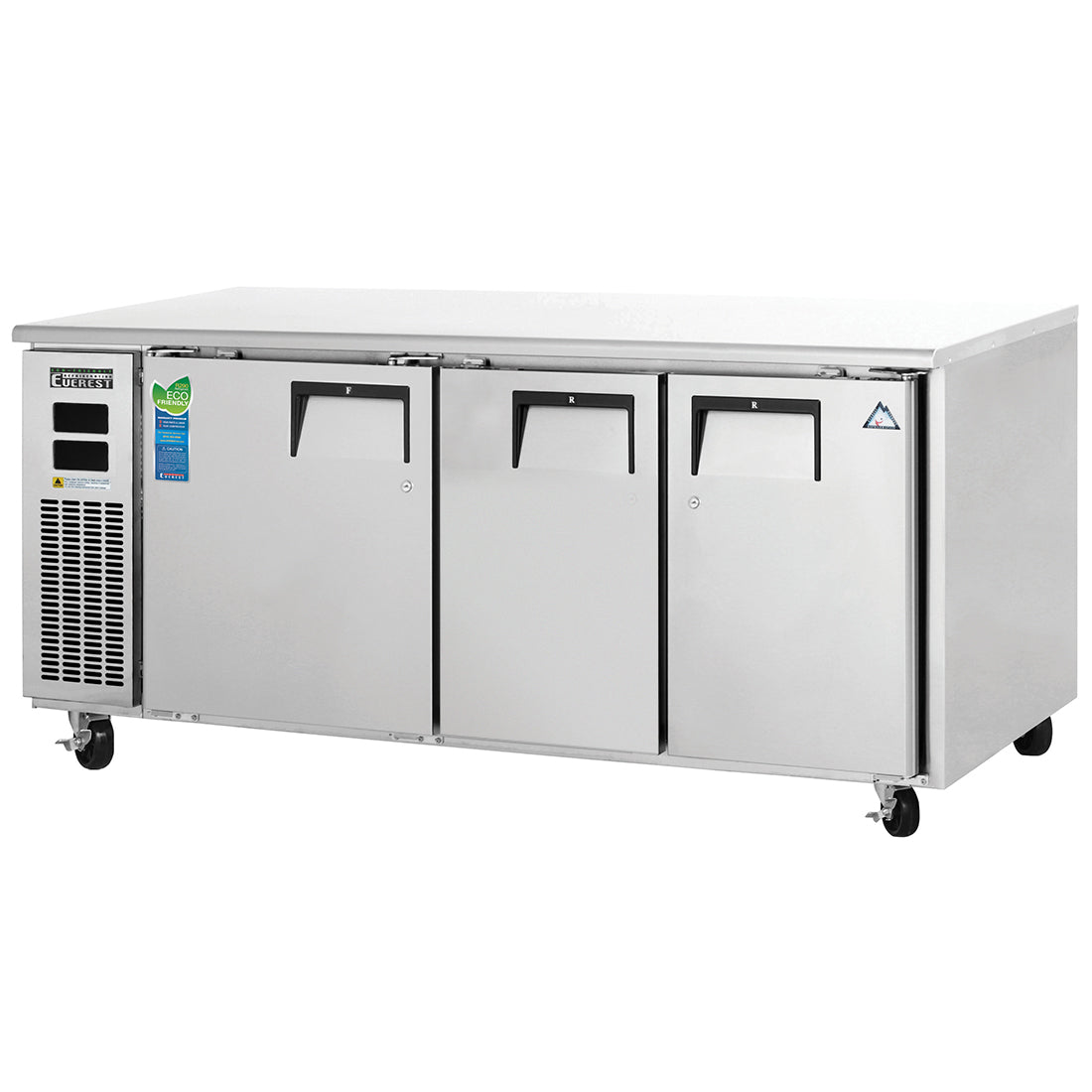

Everest ETRF3 71 In. Side Mount Undercounter Dual Temp Refrigerator Freezer, 3 Solid Doors, 14 Cu. Ft. Chilled, 9 Cu. Ft. Frozen

The Everest ETRF3 is the three door flagship of Everest's ET Series side mount undercounter dual temps, giving a long line a 14 cubic foot refrigerator behind two doors and a 9 cubic foot freezer behind a third, all in one 71 1/8 inch cabinet on one outlet. The two to one split fits operations that pull mostly chilled prep with a steady draw of frozen backup, so the station stops running a separate freezer for a few cases of stock. The 16 gauge stainless steel worktop turns nearly six feet of top into counter space, and the condensing unit is mounted at the left end where it breathes through the front grille, so the cabinet backs up flush to a wall.

Side Mounted Blizzard R290 Cartridge that Swaps without On-Site Brazing

The condensing unit is a side mounted, self-contained Blizzard R290 cartridge housed at the left end of the cabinet, and Everest's slide-out cartridge design lets a tech replace the entire cooling system without on-site brazing, so a sealed system problem does not park the box for days. One 1/2 horsepower compressor rated at 3,435 BTU per hour serves both zones, running natural R290 refrigerant with zero ozone depletion potential and a global warming potential of three, and the unit arrives pre-wired and ready to plug in on a standard 115V circuit.

Electronically commutated fan motors pull both zones down to temperature while drawing less power, and each side defrosts the way its temperature demands: the refrigerator uses air defrost while the freezer runs a time-initiated, temperature-terminated defrost heater. A self-maintaining condensate pan needs no external drain line or electric heater, the auto-reverse condenser fan supports compressor ventilation and helps keep the condenser coil clean, and pressure relief devices let staff re-open a just-closed door instead of waiting out the vacuum.

One Freezer Door Beside Two Refrigerator Doors, All with Pre-Installed Locks

The freezer sits behind the 22 3/4 inch door at the left end next to the compressor housing, and the refrigerator spans the two 17 inch doors to the right, so two cooks can work the chilled side while a third pulls frozen stock without anyone trading places. All three doors are heavy duty stainless steel inside and out with 2.5 inch high density polyurethane insulation, self-close through an adjustable torsion system, and carry snap-in magnetic gaskets that pop out for cleaning without tools. Frame heaters stop exterior moisture build up around the openings, the recessed handles stay out of the walkway, and the pre-installed locks keep stock secure overnight.

14 Cu. Ft. Refrigerator Beside a 9 Cu. Ft. Freezer Split by an Insulated Interior Wall

An insulated interior wall seals the freezer off from the two-door refrigerator cavity, and six epoxy coated steel wire shelves, two per section, ride on height adjustable stainless steel clips. Silicone coated, shatter-proof LED lighting throws bright, high color light through the compartments while adding almost no heat. The interior and exterior are heavy duty stainless steel with rounded corners, the bottom and rear are galvanized steel, and 2.5 inch high density polyurethane insulation fills the walls. The cabinet body stands 29 1/4 inches tall, or 34 1/4 inches on its four 5 inch swivel casters with locks on the front set, so it rolls out for cleaning and locks in place during service.

Independent Digital Controls that Hold 33°F to 54°F Chilled and -10°F to 54°F Frozen

Each zone runs its own multi-function digital controller with an easy to read LED display, stacked above the front grille. The refrigerator side ships preset at 35°F and adjusts from 33°F to 54°F, while the freezer side ships at -4°F and adjusts from -10°F to 54°F, so one zone can be tuned for delicate produce while the other holds ice cream hard. An audible overheat alarm watches the compressor and condenser coil and sounds before a developing problem turns into lost product. Everest backs the unit with 3 year parts and labor, 5 year electrical, and 10 year compressor coverage, supported through its service agent network.

If the stock setup does not match your station, Everest offers additional shelving, a 4 inch high stainless steel backsplash (71 inches long) for worktop applications, a stainless steel double overshelf that adds two raised 69 by 13.5 inch shelves and 31 inches of height, a 3 inch caster assembly in place of the standard 5 inch set, and height adjustable interchangeable legs from 3.5 to 6 inches.

Keep in mind the split is fixed at 14 cubic feet chilled to 9 frozen, so an operation that needs equal halves is better matched by the two door ETRF2 in the same family, and a single-temperature station gets more usable space from the straight refrigerator or freezer undercounters. At 71 1/8 inches this is the longest dual temp in the lineup, so measure the straight run before committing. On its standard casters the unit stands 34 1/4 inches overall, so verify your counter clearance and use the optional 3 inch casters or adjustable legs where the line runs lower. Power is a standard 115V connection drawing 7.77 amps on a 9 foot cord, with no dedicated circuit needed.
