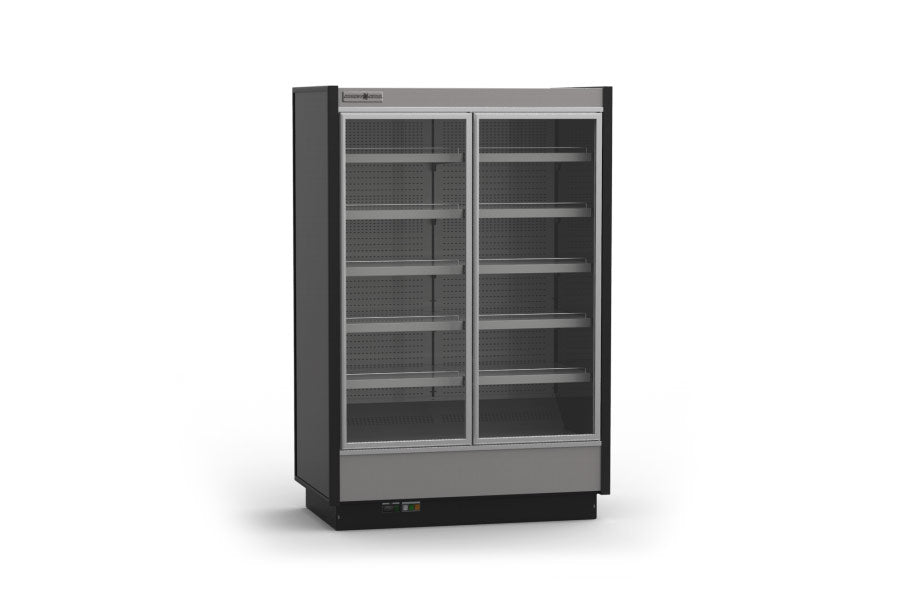

The Hydra-Kool KGV-MD-2-R Open Air Merchandiser
The Hydra-Kool KGV-MD-2-R is a two-door high volume grab-and-go merchandiser designed for remote condensing unit installation. With 37.63 cubic feet of display volume behind two 23-1/2-inch hinged glass door sections, this case handles high-traffic refrigerated self-service in grocery stores, campus dining halls, and large convenience operations. The remote configuration moves compressor heat and noise out of the sales floor, which is ideal for locations where multiple cases run side by side and cumulative heat gain from self-contained units would overload the HVAC system.
Forced Air Cooling with Hinged Glass Doors and Night Curtain
Each door section uses a hinged tempered glass door that swings open for customer self-service and swings shut to help maintain cabinet temperature between pulls. Five adjustable shelves per door section give you flexibility to set shelf heights based on product size, whether you are stocking tall beverage bottles on the bottom or short yogurt cups near the top. All shelves can be tilted to angle products forward for better visibility, and product stops on every shelf keep items from sliding to the back.
A retractable night curtain pulls down across the open face after hours, reducing cold air loss overnight and lowering energy consumption when the store is closed. Temperature and defrost cycles are managed by a digital controller, so you set your target once and the system maintains it automatically. The forced air refrigeration system circulates cold air evenly across all shelf levels, keeping products within the 33 to 40 degree Fahrenheit holding range from top to bottom.
LED Lighting and Multiplexable Construction
LED strips in the canopy and under each shelf illuminate every level of the display without adding significant heat to the cabinet. That consistent, cool lighting keeps product labels readable and colors accurate, which matters when customers are choosing between similar items at a glance. The silver PVC-coated steel front panel and foamed polystyrene black end panels give the case a clean, commercial appearance that works in grocery aisles, convenience stores, and institutional cafeterias.
The cases are built to be multiplexed, so you can line up multiple units side by side for a continuous merchandising wall. Joining kits, partitions, and product dividers are available as optional accessories. The interior is PVC-coated steel in gray for easy wipe-down cleaning, and CFC-free injected foam insulation keeps energy costs in check. Leveling feet come standard, and the cases are engineered for environments up to 75 degrees Fahrenheit and 55 percent relative humidity.
The KGV-MD-2-R measures 51-1/2 inches wide by 32-11/64 inches deep by 87-53/64 inches high. Total amperage is 1.43 with a BTU requirement of 3,345 for the remote system. The unit is hard-wired with no plug. Net weight is 555 lbs and shipping weight is 763 lbs. The crate measures 54 by 37 by 85 inches. R404a refrigerant is required, and a floor drain must be provided with an expansion valve and liquid solenoid for the pump down cycle.
About Hydra-Kool
Hydra-Kool manufactures refrigerated display cases designed for food retail and foodservice environments where product visibility and temperature control are critical. The line includes bakery, deli, seafood, and gelato cases, along with open display merchandisers and glass door wall units. Equipment is configured to support merchandising while maintaining consistent holding conditions across different product types. Cases are built with accessible components to allow for routine cleaning and service. Hydra-Kool units are used in supermarkets, specialty shops, and prepared food operations. Replacement parts support and established service channels help operators maintain performance and manage ongoing upkeep.
Features & Benefits
-
High volume grab-and-go refrigerated merchandiser for remote condensing unit
-
37.63 cu. ft. display volume
-
(2) hinged tempered glass door sections, each 23-1/2" wide
-
Holds 33°F to 40°F, forced air refrigeration, front loading
-
(5) height-adjustable shelves per section, tiltable with product stops
-
Retractable night curtain for after-hours energy savings
-
LED lighting in canopy and under each shelf
-
Temperature and defrost regulated by digital controller
-
Multiplexable cases for continuous merchandising wall
-
R404a refrigerant
-
CFC-free injected foam insulation
-
PVC-coated steel gray interior
-
Silver colored PVC-coated steel front panel
-
Black steel kick plate
-
Foamed polystyrene black end panels
-
Standard leveling feet
-
Hard-wired, no plug; floor drain required with expansion valve and liquid solenoid for pump down
-
Total amps: 1.43 A; BTU: 3,345
-
Engineered for environments not exceeding 75°F and 55% RH
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
High volume grab-and-go refrigerated merchandiser for remote condensing unit
37.63 cu. ft. display volume
(2) hinged tempered glass door sections, each 23-1/2" wide
Holds 33°F to 40°F, forced air refrigeration, front loading
(5) height-adjustable shelves per section, tiltable with product stops
The Hydra-Kool KGV-MD-2-R Open Air Merchandiser
The Hydra-Kool KGV-MD-2-R is a two-door high volume grab-and-go merchandiser designed for remote condensing unit installation. With 37.63 cubic feet of display volume behind two 23-1/2-inch hinged glass door sections, this case handles high-traffic refrigerated self-service in grocery stores, campus dining halls, and large convenience operations. The remote configuration moves compressor heat and noise out of the sales floor, which is ideal for locations where multiple cases run side by side and cumulative heat gain from self-contained units would overload the HVAC system.
Forced Air Cooling with Hinged Glass Doors and Night Curtain
Each door section uses a hinged tempered glass door that swings open for customer self-service and swings shut to help maintain cabinet temperature between pulls. Five adjustable shelves per door section give you flexibility to set shelf heights based on product size, whether you are stocking tall beverage bottles on the bottom or short yogurt cups near the top. All shelves can be tilted to angle products forward for better visibility, and product stops on every shelf keep items from sliding to the back.
A retractable night curtain pulls down across the open face after hours, reducing cold air loss overnight and lowering energy consumption when the store is closed. Temperature and defrost cycles are managed by a digital controller, so you set your target once and the system maintains it automatically. The forced air refrigeration system circulates cold air evenly across all shelf levels, keeping products within the 33 to 40 degree Fahrenheit holding range from top to bottom.
LED Lighting and Multiplexable Construction
LED strips in the canopy and under each shelf illuminate every level of the display without adding significant heat to the cabinet. That consistent, cool lighting keeps product labels readable and colors accurate, which matters when customers are choosing between similar items at a glance. The silver PVC-coated steel front panel and foamed polystyrene black end panels give the case a clean, commercial appearance that works in grocery aisles, convenience stores, and institutional cafeterias.
The cases are built to be multiplexed, so you can line up multiple units side by side for a continuous merchandising wall. Joining kits, partitions, and product dividers are available as optional accessories. The interior is PVC-coated steel in gray for easy wipe-down cleaning, and CFC-free injected foam insulation keeps energy costs in check. Leveling feet come standard, and the cases are engineered for environments up to 75 degrees Fahrenheit and 55 percent relative humidity.
The KGV-MD-2-R measures 51-1/2 inches wide by 32-11/64 inches deep by 87-53/64 inches high. Total amperage is 1.43 with a BTU requirement of 3,345 for the remote system. The unit is hard-wired with no plug. Net weight is 555 lbs and shipping weight is 763 lbs. The crate measures 54 by 37 by 85 inches. R404a refrigerant is required, and a floor drain must be provided with an expansion valve and liquid solenoid for the pump down cycle.
About Hydra-Kool
Hydra-Kool manufactures refrigerated display cases designed for food retail and foodservice environments where product visibility and temperature control are critical. The line includes bakery, deli, seafood, and gelato cases, along with open display merchandisers and glass door wall units. Equipment is configured to support merchandising while maintaining consistent holding conditions across different product types. Cases are built with accessible components to allow for routine cleaning and service. Hydra-Kool units are used in supermarkets, specialty shops, and prepared food operations. Replacement parts support and established service channels help operators maintain performance and manage ongoing upkeep.
Features & Benefits
-
High volume grab-and-go refrigerated merchandiser for remote condensing unit
-
37.63 cu. ft. display volume
-
(2) hinged tempered glass door sections, each 23-1/2" wide
-
Holds 33°F to 40°F, forced air refrigeration, front loading
-
(5) height-adjustable shelves per section, tiltable with product stops
-
Retractable night curtain for after-hours energy savings
-
LED lighting in canopy and under each shelf
-
Temperature and defrost regulated by digital controller
-
Multiplexable cases for continuous merchandising wall
-
R404a refrigerant
-
CFC-free injected foam insulation
-
PVC-coated steel gray interior
-
Silver colored PVC-coated steel front panel
-
Black steel kick plate
-
Foamed polystyrene black end panels
-
Standard leveling feet
-
Hard-wired, no plug; floor drain required with expansion valve and liquid solenoid for pump down
-
Total amps: 1.43 A; BTU: 3,345
-
Engineered for environments not exceeding 75°F and 55% RH
Resources & Downloads
See all from Hydra-Kool
Specifications
| Overall Dimensions (W x D x H) | 51-1/2" x 32-11/64" x 87-53/64" |
| Display Volume | 37.63 cu. ft. |
| Number of Doors | 2 x 23-1/2" |
| Temperature Range | 33°F to 40°F |
| Refrigeration Type | Forced Air, Remote Condensing Unit |
| Refrigerant | R404a |
| Total Amps | 1.43 A |
| BTU Requirement | 3,345 |
| Electrical Connection | Hard-Wired (No Plug) |
| Shelving | (5) Adjustable Per Section, Tiltable, With Product Stops |
| Night Curtain | Retractable |
| Lighting | LED in Canopy and Under Each Shelf |
| Temperature Control | Digital Controller |
| Insulation | CFC-Free Injected Foam |
| Interior Finish | PVC-Coated Steel, Gray |
| Front Panel | Silver Colored PVC-Coated Steel |
| Kick Plate | Black Steel |
| End Panels | Foamed Polystyrene, Black |
| Multiplexable | Yes |
| Standard Mounting | Leveling Feet |
| Operating Environment | Max 75°F, 55% RH |
| Floor Drain | Required, With Expansion Valve and Liquid Solenoid for Pump Down |
| Net Weight | 555 lbs |
| Shipping Weight | 763 lbs |
| Crate Size (L x W x H) | 54" x 37" x 85" |
Manufacturer's Warranty
-
1 Year
Labor
-
1 Year
Parts
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
