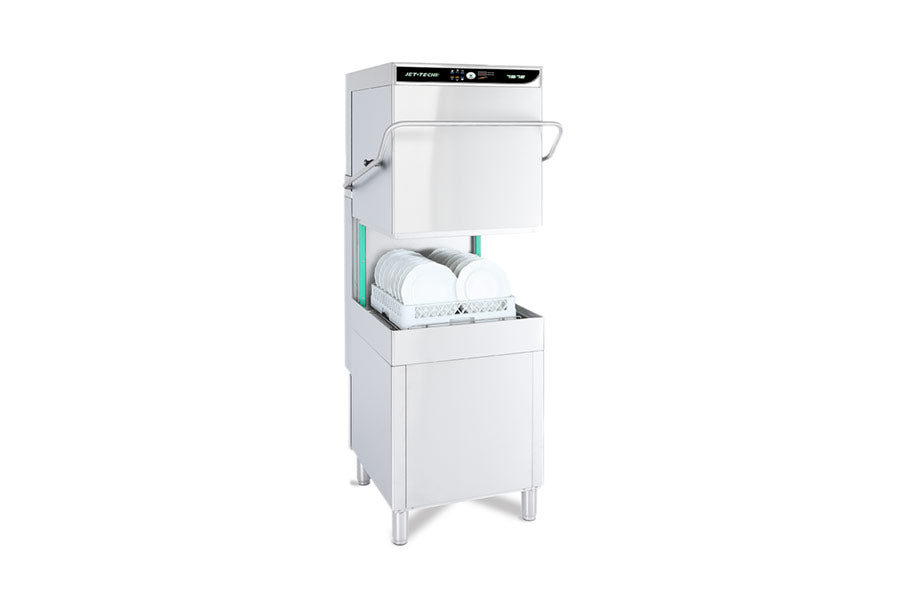

Jet-Tech 757-E 26 In. Door-Type High-Temp Dishwasher, Electronic Series, Heat Recovery, OneGO Controls, 60 Racks/Hr

The Jet-Tech 757-E is a door-type high-temperature dishwasher from the Electronic Series, designed for high-volume restaurants and institutional kitchens that process large quantities of ware throughout the day. A built-in heat recovery module captures thermal energy from each wash cycle and uses it to preheat incoming fresh water, so the booster has less work to do reaching sanitizing temperature and the unit accepts incoming water as low as 77 degrees Fahrenheit. The ThermoStop system guarantees the final rinse hits 180 degrees Fahrenheit every cycle for NSF high-temperature sanitizing, and a dedicated final rinse pressure pump (0.20 HP) delivers constant, powerful water pressure for thorough rinsing regardless of your building's water pressure fluctuations. The OneGO electronic control system with LED interface gives you four programmable wash cycles at 1, 2, 3, or 4 minutes through soft-touch buttons, producing up to 60 racks per hour on the shortest cycle. SmartSelf diagnostics provide advanced service information at your fingertips, and the EasyGO soft-start washing system ramps up gradually to protect delicate glassware and china from chippage. The 18.75-inch door clearance with ergonomic handle accepts tall stock pots, mixing bowls, and sheet pans. The unique stainless steel rack support glide system lets you switch between in-line and corner configurations without tools. Standard equipment includes one open combination rack, one peg dish rack, and fill and drain hoses.

Coved-Corner One-Piece Stamped Wash Tank in Heavy-Duty Stainless Steel

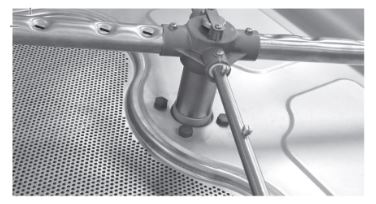

The body, external housing, wash tank, and all chassis components are brushed 304 stainless steel. The inner washing chamber features coved corners and a one-piece stamped wash tank that eliminates the seams and joints where food particles, grease, and bacteria typically collect in conventional welded tanks. That recessed, seamless design makes the wash chamber faster to clean at the end of the shift and provides the most sanitary environment possible for your ware. The wash pump is protected by double scrap filters that catch food debris before it reaches the impeller, and these filters lift out for quick cleaning. Upper and lower wash and rinse jets sit on revolving arms constructed entirely of stainless steel, delivering thorough spray coverage across the full rack, and the arms remove without tools when you need to clean the spray nozzles.

Integrated Booster Heater with Front-Mounted Electronic Controls

The integrated AISI 18/10 stainless steel booster heater brings the final rinse up to sanitizing temperature without relying on an external booster unit or your building's hot water system hitting the right temperature on its own. Independently operated heating elements alternate between the booster and wash tank, which reduces peak electrical draw at any given moment and lowers energy costs over a full shift. The front-mounted electronic control panel gives you digital temperature displays for both wash and rinse temperatures at a glance, and the slide-out panel design provides your service technician easy access to internal components without pulling the unit out from under the counter or away from the wall. A safety micro-switch on the door interrupts the wash motor-pump the moment the door is opened, and automatic fill and water level regulation keeps the tank at the correct operating level between racks.

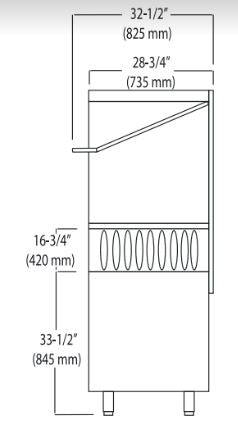

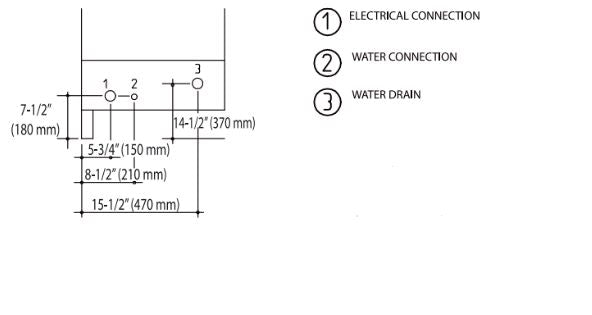

The 757-E measures 25.5 inches wide by 32.5 inches deep by 61.5 inches high. The 1.75 HP wash pump operates on 208-240V/60Hz through a single-point electrical connection, available in either single phase (50.5 amps) or three phase (29 amps) at 10.5 KW maximum power. The 5.25 gallon wash tank uses a 4.0 KW heating element, and the 2.62 gallon booster runs a 9.0 KW element. The wash temperature reaches 158 degrees Fahrenheit minimum, controlled electronically. Incoming water pressure should be between 21 and 30 psi. Water consumption is 0.74 gallons per cycle at 30 psi. The automatic start cycle begins washing the moment the hood closes. Adjustable bullet-style feet handle uneven floors. Machine weight is 330 lbs and shipping weight is 370 lbs.
