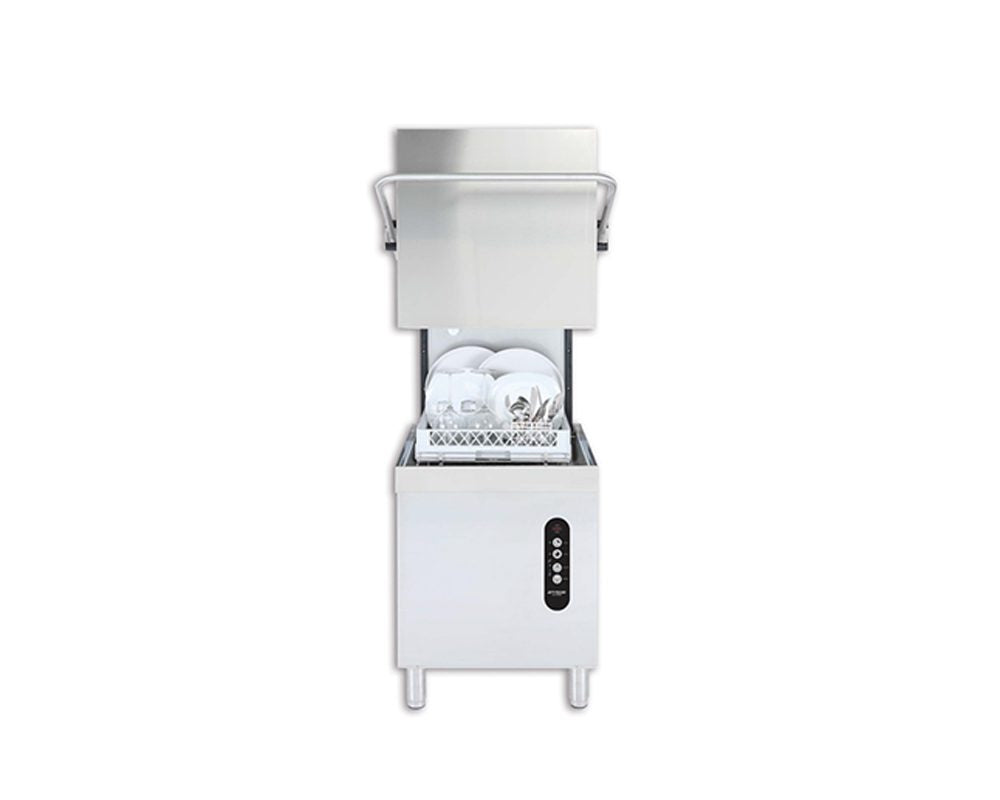

The Jet-Tech EV22 Door Type Dishwasher
Includes:
- One open combination rack
- One peg dish rack 19.75" x 19.75" (500 mm x 500 mm)
Product Features

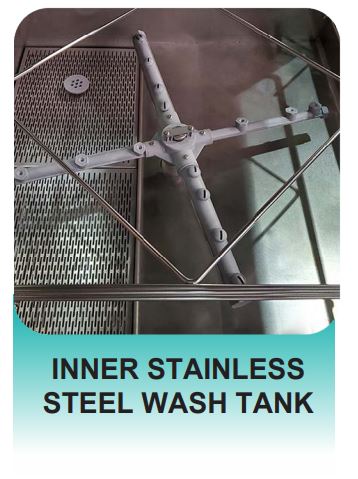

- Body, external housing, wash tank and all chassis component in brushed stainless steel - type AISI 304 16 gauge
- Upper and lower wash and rinse jets on revolving arms constructed of reinforced fiberglass; easy to remove and clean without the need for tools
- Adjustable bullet-style feet
- Safety two-way automatic micro-switch on the door controlling the operation of the wash motor-pumps
- Independently-operated heating elements alternating between booster and wash tank
- Alternating heating resistors reducing maximum absorption thereby reducing energy costs
- Door opening with overall clearance of 16.75 in. (425 mm) with ergonomic door handle

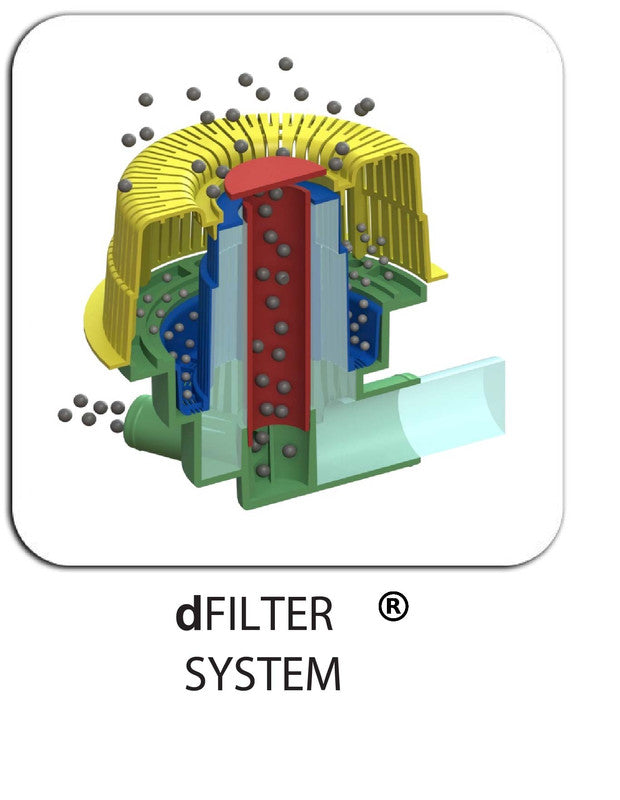

- New dFilter system®
- Automatic fill and water level regulation of the wash tank
- Wash pumps protected with double scrap filters easy to remove for quick cleaning and proper maintenance
- Machine can be installed either as an in-line or corner application with simple field modification
- Front mounted control panel with digital temperature displays
Free Shipping
Usually ships in 2 Business Days
Product Resources
Specifications
Equipment type | Dishwashers |
Brand | Jet-Tech |
Rack capacity | 19.75"" x 19.75"" (500 mm x 500 mm) |
Total cycle | Two cycles (2-3 Min) Rinse (12-15 Sec) |
Hourly production | up to 30 racks/hr |
Wash tank capacity | 5.25 U.S. gallons (21 Liters) |
Booster capacity | 2.62 U.S. gallons (10 Litres) |
Wash temperature | 150°F (65°C) minimum / controlled electronically |
Final rinse temperature | 185°F - 194°F (85°C - 90°C) minimum / controlled electronically |
Incoming water temperature | Minimum 122°F (50°C) |
Water consumption per cycle @ 30 psi | 0.85 U.S. Gallons (2.7 Liters) |
Washing pump power | 1 H.P. |
Power supply | 208-240V/60Hz (Single phase) |
Tank heating element | 4.0 KW |
Booster heating element | 4.0 KW |
Maximum power rating | 4.8 KW - 19.8 to 22.8A |

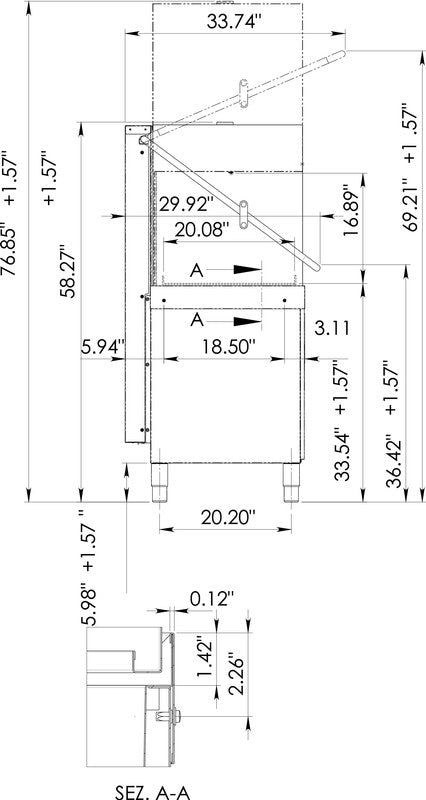

Width | 29.41" |
Height | 76.85" |
Depth | 33.74" |
Weight | 308 lbs. |
