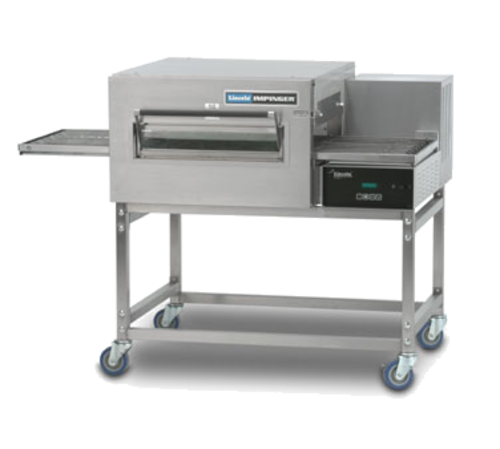

Lincoln 1180-1G Single Stack Impinger II Gas Conveyor Oven Package, easyTouch Controls, Stand with Casters

The Lincoln 1180-1G is a single-stack gas conveyor oven package that bundles one complete Impinger II oven, a matching caster stand, a take-off shelf, and an oven cleaner starter kit under a single model number, so a pizzeria, sports bar, or chain kitchen orders a complete single-deck bake line in one purchase instead of piecing together an oven, stand, and shelf. Air impingement bakes two to four times faster than a conventional oven, and at a 5-minute bake time the deck turns out 33 twelve-inch pizzas an hour; set a 3-minute time for thin crust and that climbs to 54. The 40,000 BTU/hr oven runs on a gas burner with nothing more than a 120 V cord on the electrical side, so it does not compete with the rest of the line for high-amperage circuits. This is a floor-model production package, not a countertop setup, and every oven in it is gas-fired, so a ventilation hood is required no matter how the stack is configured; a kitchen that cannot run a hood needs a ventless electric package instead, and the fuel configuration should be confirmed as natural gas or LP when ordering. Plan the install around a hood sized for 450 to 800 CFM over the single stack, a dedicated gas connection for every oven at 7 to 14 inches water column on natural gas or 11 to 14 on LP, a 120 V receptacle per deck for the NEMA 5-15 cords, 6 inches of rear clearance to combustible surfaces, and 24 inches of right-side clearance from other cooking equipment.

One Oven, Caster Stand, Take-Off Shelf, and Cleaner Kit in One Order

The package pairs a complete Impinger II gas oven, built with a glass access window, with the stand Lincoln builds for this series. The stand rolls on casters, so the whole assembly pulls away from the wall for cleaning behind the line, and a take-off shelf gives product a landing spot at the belt exit. A Lincoln oven cleaner starter kit ships in the same order, covering the first rounds of interior cleaning without a separate supply purchase.

40,000 BTU/hr Gas-Fired Air Impingement per Oven

A 40,000 BTU/hr burner in the deck feeds the impingement system, which drives hot air under pressure through small jets that strike the food directly instead of letting heat drift around the cavity. The moving air strips away the cool boundary layer that slows conventional baking, so crusts crisp and toppings cook through in a fraction of the time, and one belt handles pizza, wings, sandwiches, and cookies with a settings change rather than a second piece of equipment. Lincoln calls for a flexible connector of at least 3/4-inch NPT no longer than 6 feet on each oven and recommends a minimum 1.5-inch gas supply pipe; every oven in the stack needs its own gas connection. Because the heat comes from gas, each deck plugs in on a 120 V, 7 A cord with a NEMA 5-15 plug rather than needing a dedicated high-amperage circuit.

Radiant Finger Setup Matched to Your Menu

The air fingers that shape the impingement pattern ship in the standard radiant configuration, the setup Lincoln pairs with broad pizza and appetizer menus. They remove from the front without tools for cleaning, and Lincoln configures finger setups to your specific menu, so the airflow matches what you actually cook rather than a generic factory profile. If bake times ever become the bottleneck, the same oven platform accepts FastBake fingers that trim cook times by up to an additional 30 percent.

18 by 56 Inch Conveyor Through a 28 Inch Baking Chamber

An 18-inch-wide, 56-inch-long belt carries product through a 28-inch-wide baking chamber with a 3-inch opening, sized for anything from a 16-inch pizza to sheet-pan appetizers. A product stop keeps items from riding past the pickup point, belt direction reverses to suit either a left-to-right or right-to-left cook line, and conveyor speed adjusts anywhere from 20 seconds to 30 minutes to match the recipe. The conveyor pulls out from the front for cleaning, so you are not wrestling a 56-inch frame out of a wall alcove.

Digital Controls With Eight Preset Menu Items

The front-mounted easyTouch panel stores eight preset menu items, each pairing a set temperature with a belt speed. During a rush, whoever is closest taps the preset instead of guessing at dial positions, and the bake comes out the same at lunch as it did at breakfast. Temperature adjusts from 250 °F to 600 °F, which covers slow-baked items as well as high-heat pizza work.

Front-Loading Glass Door With Factory Start-Up Included

Stainless steel wraps the top, front, and sides of the oven, and a front-loading glass access door with a cool touch handle lets you check browning mid-bake or slide in a quick item without waiting for the full belt pass. The oven weighs 325 pounds on its own, so plan the rolling route before delivery day. Every package includes start-up and check-out by a Welbilt authorized service agent, so calibration and the warranty clock both start from a documented commissioning visit.
