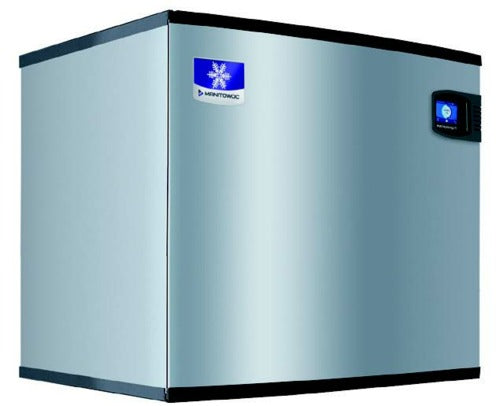

Manitowoc IDP1000AP 970 lb Indigo NXT Correctional Modular Ice Machine Head, Air-Cooled, Full-Dice Cubes, Stainless Panels

The Manitowoc IDP1000AP is the correctional package of the Indigo NXT 970 lb 30 in. wide modular head, an air-cooled full-dice ice machine head built for correctional and secure facilities that need high-capacity, tamper-resistant ice production. The correctional package removes every piece of exterior plastic and replaces it with stainless steel top, front, and side panels, stainless louvers, and tamper-proof screws, while the head still produces up to 970 lb of dice ice per 24 hours at 70°F air and 50°F water (790 lb at 90°F air and 70°F water). As a machine head with no bin attached, it pairs with a D400 or D570 storage bin sized to your facility. It shares its ratings with the standard IDP1000A, so choose this version only when the security package matters; a standard head costs less and installs identically in a commercial kitchen. Plan on a 208-230V single-phase circuit with a three-phase version available, a 3/8 in. water line, a 3/4 in. bin drain, and 8 in. of top and side clearance; the storage bin is sold separately.

Icon-Based Touch Display with Programmable Ice Production Schedules

The icon-based easyTouch display takes the guesswork out of owning an ice machine: staff pick their language in the start-up wizard, follow on-screen icons for day-to-day operation, and get automatic reminder and alert icons instead of blinking fault codes. Production is programmable by time of day, by daily volume, or with an overnight shutoff, so the head can build its reserve when electric rates drop rather than fighting for power during the dinner rush. On this correctional model the display sits protected behind the front door, out of reach of casual tampering.

R290 Natural Refrigerant with Acoustical Ice Sensing and Active Sense

The refrigeration system runs on R290 with a 15.9 oz charge, a refrigerant-grade propane that occurs naturally, depletes no ozone, and carries extremely low global warming potential. The patented acoustical ice sensing probe works with Active Sense software to deliver consistent harvests even in challenging water conditions, and the air-cooled self-contained condenser rejects 13,980 average, 16,030 peak BTU per hour while the machine holds spec from 35°F to 110°F ambient and 40°F to 90°F incoming water.

Hinged Front Door and Removable Water-System Parts with AlphaSan Protection

Cleaning is where most ice machines lose their owners, so Manitowoc made the food zone come apart without tools: the front door swings open on a hinge, and the water trough, distribution tube, curtain, water probe, and water pump all lift out for fast, thorough cleaning at the sink instead of awkward in-place scrubbing. Select components carry AlphaSan antimicrobial protection to keep the food zone cleaner between those sessions.

DuraTech Exterior and 24-Hour Diagnostics for Long Service Life

Where standard Indigo NXT heads wear a DuraTech finish, this correctional build goes further: stainless steel top and front panels, stainless side panels with stainless louvers, and no plastic anywhere on the outside of the machine. Tamper-proof screws use two different head designs, one for the front panel and one for the back cover, and both require special bits that ship in the start-up package, so panels stay closed to anyone without the right tools. Underneath, 24-hour intelligent diagnostics monitor the machine continuously and flag preventative maintenance before a small issue becomes a down day.

LuminIce II, Water Filtration, and Automated Cleaning Accessories

The optional LuminIce II growth inhibitor controls viruses and bacteria inside the food zone and reports its status through an icon on the display. The iAuCS accessory schedules and performs routine descaling or sanitizing automatically, turning a dreaded quarterly chore into a background task, and Arctic Pure Pro water filters cut sediment and chlorine contaminants down to 0.5 microns when the prefilter and primary filter run together.
