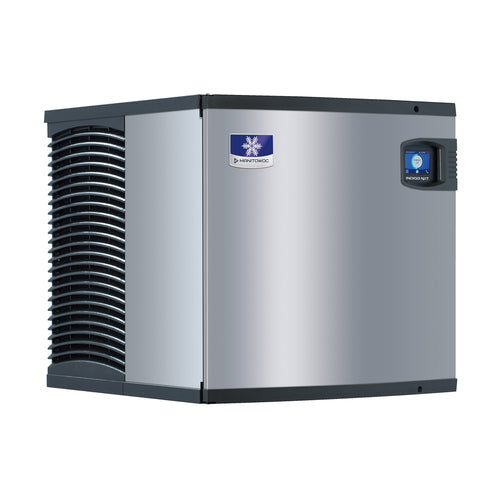

Manitowoc IDT0620W 530 lb Indigo NXT Modular Ice Machine Head, 22 in. Wide, Water-Cooled, Dice Cubes

The Manitowoc IDT0620W is the water-cooled build of the Indigo NXT high-output narrow head, delivering up to 530 lb of dice ice per 24 hours at 70°F air and 50°F water from a cabinet only 22 in. wide. Because the condenser rejects heat to building water, it still rates 450 lb at 90°F air and posts the family's low energy draw at 4.13 kWh per 100 lb of ice, a fit for hot, enclosed ice rooms where an air-cooled machine would recirculate its own heat. The condenser loop uses 140 gal per 100 lb of ice on top of 19.9 gal of potable water, so it belongs where water is cheap or a loop already exists; the air-cooled IDT0620A avoids that plumbing. It is a head only, matched natively to the D-420 storage bin, with the K00443 adapter fitting it to a D-400 bin, all sold separately. Plan on a 115V circuit with a 20 amp maximum fuse, separate 3/8 in. FPT ice-making and condenser inlets, a 1/2 in. condenser outlet and drains, and 12 in. of top and side clearance with 5 in. at the back.

Icon-Based Touch Screen with Programmable Ice Production

Every function runs through the icon-based easyTouch display, so whoever closes the kitchen can read operating status, start a cleaning mode, or check an alert without hunting for a manual; the interface offers 13 language options and keeps a date and time stamp with automatic reminder and alert icons. Programmable ice production is the money feature: schedule the machine off during peak electrical rates, cap it by daily production volume, or shift the work to night programming so the bin is full before the morning crew clocks in. One touch calls up asset information, and the controller automatically detects accessories as you add them, so upgrades register without a service visit.

Swing-Out Front Door with Removable Water-Path Components

Cleaning happens through a hinged front door that swings out of the way rather than a panel you unscrew and set aside. The water trough, distribution tube, curtain, and sensing probes all remove from the food zone, so a deep clean is a fast, complete job instead of a reach-around compromise, and selected components are made with AlphaSan antimicrobial material that works between cleanings. An optional LuminIce II inhibitor controls viruses, bacteria, mold, and yeast inside the food zone, with a sanitation icon on the display reporting its operational status. For routine care you can go hands-off entirely: the iAuCS accessory schedules and performs cleaning cycles automatically, Arctic Pure water filters strip sediment and chlorine down to 0.5 microns ahead of the machine, and an external scoop holder keeps the scoop off the bin rim.

Acoustical Ice Sensing Probe with 24 Hour Intelligent Diagnostics

Manitowoc's patented acoustical ice sensing probe reads the harvest acoustically rather than by simple contact, which keeps cycles reliable in challenging water conditions that confuse conventional sensors. Active Sense software works in conjunction with that probe, adjusting so every harvest lands consistently as room temperature and water quality drift across the day, anywhere in the machine's 40°F to 110°F ambient and 40°F to 90°F water operating limits. Intelligent diagnostics watch the machine around the clock and surface preventative maintenance and diagnostic feedback right on the display, so a service tech arrives already knowing what the machine has reported instead of starting the diagnosis from zero.

DuraTech Clear-Coat Exterior with Corrosion Resistance Beyond Stainless Steel

The cabinet wears Manitowoc's DuraTech exterior, a finish rated for corrosion resistance above stainless steel, with an innovative clear-coat that resists fingerprints and dirt so the machine stays presentable in an open sightline instead of polishing into your closing checklist. Unlike painted panels that chip at the corners, the clear-coated surface holds its look through years of cart traffic and scoop-in-hand contact. The refrigeration system runs R410A refrigerant, a CFC-free formulation that lowers global warming potential by 48 percent, and rejects 5 on a 115V connection with 11.6 amps at 115V, 5.6 amps at 208-230V of minimum circuit ampacity. Keep the listed clearance open and the self-contained system holds rated production without a remote condenser or added refrigerant lines.
