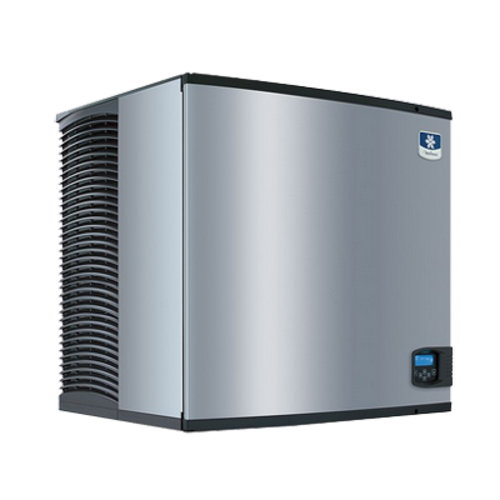

Manitowoc IDT1200W 1078 lb Indigo NXT Modular Ice Machine Head, 30 in. Wide, Water-Cooled, Dice Cubes

The Manitowoc IDT1200W is the water-cooled 30 in. head in the Indigo NXT modular line's four-figure tier, built for hotels, banquet operations, and healthcare kitchens that need more than a thousand pounds of dice ice a day from a standard-width cabinet. It produces up to 1,078 lb per 24 hours at 70°F air and 50°F water and, because the condenser rejects heat to building water instead of the room, still delivers 900 lb when the ice room hits 90°F while drawing just 4.16 kWh per 100 lb; this generation also averages 5 percent lower energy consumption and a 22 percent reduction in condenser water usage over the machines it replaced. The trade is a condenser loop that consumes 140 gal of water per 100 lb of ice, so it belongs where water is inexpensive or a cooling loop already exists, and kitchens that cannot plumb one are better matched to an air-cooled Indigo NXT head. It is a head only, sized to a D-570 storage bin sold separately, and it can top the larger D-970 bin with the K00470 adapter. Plan the install around a 208-230V single-phase circuit, separate 3/8 in. FPT ice-making and condenser water inlets, 1/2 in. drains, and 8 in. of top and side clearance with 5 in. at the back.

Icon-Based Touch Screen with Programmable Ice Production

Every function runs through the icon-based easyTouch display, so whoever closes the kitchen can read operating status, start a cleaning mode, or check an alert without hunting for a manual; the interface offers 13 language options and keeps a date and time stamp with automatic reminder and alert icons. Programmable ice production is the money feature: schedule the machine off during peak electrical rates, cap it by daily production volume, or shift the work to night programming so the bin is full before the morning crew clocks in. One touch calls up asset information, and the controller automatically detects accessories as you add them, so upgrades register without a service visit.

Swing-Out Front Door with Removable Water-Path Components

Cleaning happens through a hinged front door that swings out of the way rather than a panel you unscrew and set aside. The water trough, distribution tube, curtain, water probe, and water pump all remove from the food zone, so a deep clean is a fast, complete job instead of a reach-around compromise, and selected components are made with AlphaSan antimicrobial material that works between cleanings. An optional LuminIce II growth inhibitor controls viruses, bacteria, mold, and yeast inside the food zone, with a sanitation icon on the display reporting its operational status. For routine care you can go hands-off entirely: the iAuCS accessory schedules and performs cleaning cycles automatically, Arctic Pure Plus water filters strip sediment and chlorine down to 0.5 microns ahead of the machine, and an external scoop holder keeps the scoop off the bin rim.

Acoustical Ice Sensing Probe with 24 Hour Intelligent Diagnostics

Manitowoc's patented acoustical ice sensing probe reads the harvest acoustically rather than by simple contact, which keeps cycles reliable in challenging water conditions that confuse conventional sensors. Active Sense software works in conjunction with that probe, adjusting so every harvest lands consistently as room temperature and water quality drift across the day, anywhere in the machine's 40°F to 110°F ambient and 40°F to 90°F water operating limits. Intelligent diagnostics watch the machine around the clock and surface preventative maintenance and diagnostic feedback right on the display, so a service tech arrives already knowing what the machine has reported instead of starting the diagnosis from zero.

DuraTech Clear-Coat Exterior with Corrosion Resistance Beyond Stainless Steel

The cabinet wears Manitowoc's DuraTech exterior, a finish rated for corrosion resistance above stainless steel, with an innovative clear-coat that resists fingerprints and dirt so the machine stays presentable in an open sightline instead of polishing into your closing checklist. Unlike painted panels that chip at the corners, the clear-coated surface holds its look through years of cart traffic and scoop-in-hand contact. The refrigeration system runs R410A refrigerant, a CFC-free formulation that lowers global warming potential by 48 percent, moving 16,200 BTU/hr of average heat rejection (19,100 BTU/hr at peak) on a 208-230V connection with minimum circuit ampacity of 13.4 amps. Keep the listed clearance open and the system holds rated production day after day.
