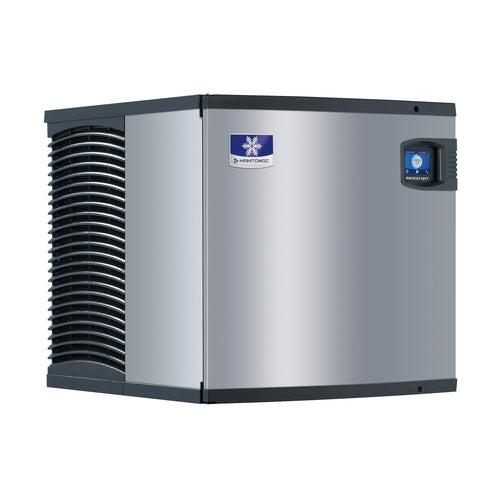

Manitowoc IRP0620A 493 lb Indigo NXT Modular Ice Machine Head, Air-Cooled, Regular Cubes, 22 In. Wide

The Manitowoc IRP0620A is the narrow-footprint regular-cube head in the Indigo NXT iP line, built for equipment lineups where every inch counts: it packs nearly the output of a 30 in. machine into a cabinet just 22 in. wide. It produces up to 493 lb of regular ice per 24 hours at 70°F air and 50°F water (371 lb at 90°F air and 70°F water), and the 1 1/8 in. regular cube fills glassware fast and melts slowly through a full bar shift. As a machine head with no bin attached, it pairs with a D320 or D420 storage bin matched to your reserve needs. If the lineup can spare 30 in. of width, the IRP0500A makes slightly more ice on a lower-ampacity circuit, and operations using well over 500 lb a day are better matched to the iP0800 heads. Plan on a 115V/60/1 or 230V/60/1 circuit, a 3/8 in. water line, a 1/2 in. drain, and 12 in. of top and side clearance; the storage bin is sold separately.

Icon-Based Touch Display with Programmable Ice Production Schedules

The icon-based easyTouch display takes the guesswork out of owning an ice machine: staff follow on-screen icons for day-to-day operation instead of deciphering fault codes, and the display carries a status indicator for the optional LuminIce growth inhibitor. Production is programmable by time of day, so the head can build its reserve when electric rates drop or shut off overnight to lower lifetime operating cost rather than fighting for power during the dinner rush. Bluetooth connectivity handles quick setup and serves up instant machine information on a paired device.

R290 Natural Refrigerant with Acoustical Ice Sensing and Active Sense

The refrigeration system runs on R290, a refrigerant-grade propane that occurs naturally, depletes no ozone, and carries extremely low global warming potential. The patented acoustical ice sensing probe works with Active Sense software to help keep harvests consistent cycle after cycle, and the air-cooled self-contained condenser rejects 10,330 BTU/hr average, 12,000 BTU/hr peak while the machine holds spec from 35°F to 110°F ambient and 40°F to 90°F incoming water. Energy use runs 6 kWh per 100 lb of ice at the 90°F/70°F rating point, with 13 amps of minimum circuit ampacity on a 115V circuit (6.4 amps at 230V).

Hinged Front Door and Removable Water-System Parts with AlphaSan Protection

Cleaning is where most ice machines lose their owners, so Manitowoc made the food zone come apart without tools: the front door swings open on a hinge, and the water trough, distribution tube, curtain, water probe, and water pump all lift out for fast, thorough cleaning at the sink instead of awkward in-place scrubbing. Select components carry AlphaSan antimicrobial protection to keep the food zone cleaner between those sessions.

DuraTech Exterior and 24-Hour Diagnostics for Long Service Life

The DuraTech exterior resists corrosion better than stainless steel, and its clear coat shrugs off the fingerprints and dirt that make busy-kitchen equipment look tired within a year. Behind the panels, 24-hour diagnostics monitor the machine continuously and surface preventative maintenance feedback on the display, so a service call happens on your schedule rather than during a Saturday rush. The head weighs 134 lb at shipping and drops onto a D320 (264 lb) or D420 (383 lb) storage bin, each sold separately.

LuminIce II, Water Filtration, and Automated Cleaning Accessories

The optional LuminIce II inhibitor helps control viruses and bacteria inside the ice machine. The iAuCS accessory schedules and performs routine descaling or sanitizing automatically, and Arctic Pure Pro water filters cut sediment and chlorine contaminants down to 0.5 microns; Manitowoc recommends running the Arctic Pure prefilter with the primary filter for optimal performance. All three integrate with this head rather than bolting on as afterthoughts.
