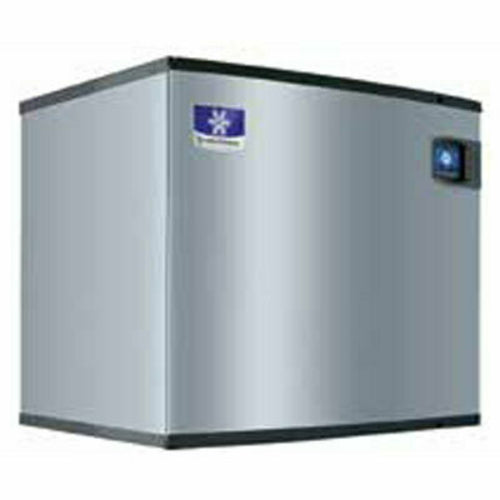

Manitowoc IRP0800W 781 lb Indigo NXT Modular Ice Machine Head, Water-Cooled, Regular Cubes, 30 In. Wide

The Manitowoc IRP0800W is the water-cooled regular-cube head in the Indigo NXT iP0800 family, and the highest-output, lowest-energy machine of the regular-cube lineup: up to 781 lb of regular ice per 24 hours at 70°F air and 50°F water (692 lb at 90°F air and 70°F water) at just 3.72 kWh per 100 lb of ice. It is built for hotels, banquet kitchens, and high-volume bars whose demand holds up even on hot days, since the water-cooled condenser sheds heat to a water loop rather than into the kitchen air. As a machine head with no bin attached, it pairs with a D400 or D570 storage bin sized to your reserve. The trade is 115 gal of condenser water per 100 lb of ice on top of potable use, so where water and sewer costs dominate, the air-cooled IRP0800A avoids that entirely; operations using closer to 500 lb a day are better matched to the iP0500 or iP0620 heads. Plan on a 208-230V/60/1 circuit, a 3/8 in. potable water line, a 3/8 in. condenser water line with a 1/2 in. outlet, and 8 in. of top and side clearance; the storage bin is sold separately.

Icon-Based Touch Display with Programmable Ice Production Schedules

The icon-based easyTouch display takes the guesswork out of owning an ice machine: staff follow on-screen icons for day-to-day operation instead of deciphering fault codes, and the display carries a status indicator for the optional LuminIce growth inhibitor. Production is programmable by time of day, so the head can build its reserve when electric rates drop or shut off overnight to lower lifetime operating cost rather than fighting for power during the dinner rush. Bluetooth connectivity handles quick setup and serves up instant machine information on a paired device.

R290 Natural Refrigerant with Acoustical Ice Sensing and Active Sense

The refrigeration system runs on R290, 14.1 oz charge, a refrigerant-grade propane that occurs naturally, depletes no ozone, and carries extremely low global warming potential. The patented acoustical ice sensing probe works with Active Sense software to help keep harvests consistent cycle after cycle, and the water-cooled self-contained condenser rejects 14,080 BTU/hr average, 16,340 BTU/hr peak to a condenser water loop that uses 115 gal per 100 lb of ice and accepts inlet pressure from 20 psi up to 276 psi while the machine holds spec from 35°F to 110°F ambient and 40°F to 90°F incoming water. Energy use runs 3.72 kWh per 100 lb of ice at the 90°F/70°F rating point, with 8.3 amps of minimum circuit ampacity on a 208-230V circuit.

Hinged Front Door and Removable Water-System Parts with AlphaSan Protection

Cleaning is where most ice machines lose their owners, so Manitowoc made the food zone come apart without tools: the front door swings open on a hinge, and the water trough, distribution tube, curtain, water probe, and water pump all lift out for fast, thorough cleaning at the sink instead of awkward in-place scrubbing. Select components carry AlphaSan antimicrobial protection to keep the food zone cleaner between those sessions.

DuraTech Exterior and 24-Hour Diagnostics for Long Service Life

The DuraTech exterior resists corrosion better than stainless steel, and its clear coat shrugs off the fingerprints and dirt that make busy-kitchen equipment look tired within a year. Behind the panels, 24-hour diagnostics monitor the machine continuously and surface preventative maintenance feedback on the display, so a service call happens on your schedule rather than during a Saturday rush. The head weighs 184 lb at shipping and drops onto a D400 or D570 (532 lb) storage bin, each sold separately.

LuminIce II, Water Filtration, and Automated Cleaning Accessories

The optional LuminIce II inhibitor helps control viruses and bacteria inside the ice machine. The iAuCS accessory schedules and performs routine descaling or sanitizing automatically, and Arctic Pure Pro water filters cut sediment and chlorine contaminants down to 0.5 microns; Manitowoc recommends running the Arctic Pure prefilter with the primary filter for optimal performance. All three integrate with this head rather than bolting on as afterthoughts.
