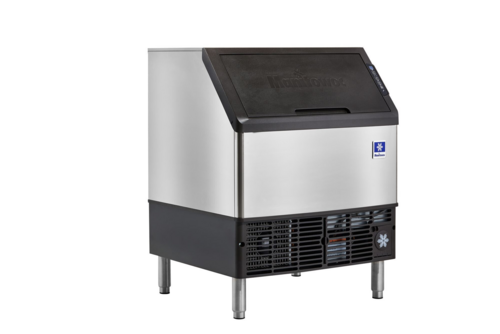

Manitowoc UDP0310W 300 lb NEO Undercounter Ice Machine, 119 lb Bin Storage, Water-Cooled, Dice Cubes

The Manitowoc UDP0310W is the water-cooled version of the largest dice-cube machine in the NEO undercounter ice machine line, built for hot, enclosed, or ventilation-limited spaces that still need modular-class production under the counter. It produces up to 300 lb of dice ice per 24 hours at 70°F air and 50°F water and holds 280 lb per day even in a 90°F kitchen, because the condenser rejects heat to the water line rather than fighting the ambient air, while the oversized 119 lb bin keeps enough reserve that back-to-back rushes do not empty it. The trade-off is honest: the condenser circuit uses 160 gal of water per 100 lb of ice, so the air-cooled sibling UDP0310A is the more economical choice where water is metered tightly and the room stays cool. Plan on a standard 115V outlet, separate ice-making and condenser water lines, and three drains; the 30 in. wide cabinet stands 38.5 in. tall overall on its 6 in. stainless steel legs.

Dice Cube Ice Maker and 119 lb Bin in One 30 In. Wide Cabinet

The cabinet measures 30 in. wide by 28.50 in. deep by 38.5 in. tall overall on its 6 in. adjustable stainless steel legs, pairing the ice maker and storage bin in one stainless steel enclosure instead of a coordinated head-and-bin stack. The storage bin is removable and slides forward, so a technician reaches the refrigeration components for cleaning and maintenance without pulling the cabinet out from under the counter. A plastic NEO ice scoop ships standard, and the dice cube measures 7/8 in. square, a shape that packs tight in glassware and melts slowly in beverage service.

Front Air Intake and Exhaust with No Minimum Clearance

The cabinet ventilates through the front, and Manitowoc requires no minimum clearance at the top, sides, or back, though 5 in. is recommended where the floor plan can spare it. Because this model sends condenser heat down the water line instead of out into the room, it suits tight enclosures and warm back-of-house corners where an air-cooled machine would recirculate its own exhaust. Operating limits run from 50°F to 100°F ambient with incoming water from 45°F to 90°F.

R290 Refrigerant System with a 0.5 HP Compressor on a 115V Circuit

A 0.5 HP compressor and R290 refrigerant system draw 7.0 amps on a 115/60/1 circuit with a factory-fitted 8 ft cord and NEMA 5-15P plug; 208-230/60/1 and 230/50/1 versions are available, with the 208-230V build shipping a cord only and no plug. The water-cooled condenser is cupra-nickel, a material choice that protects against corrosive water elements over years of service, and it accepts condenser inlet water from 20 to 150 psi. Expect 4.66 kWh and 15.5 gal of potable ice-making water per 100 lb of ice at the 90°F/70°F rating point, plus 160 gal of condenser water per 100 lb; the 15 amp maximum fuse size accepts HACR-type circuit breakers.

Up-Front Touchpad with Onboard Water Filtration

An easy-to-read touchpad on the front of the machine handles on and off, production delay, clean, filter change, full bin, and service indications, so staff see at a glance why the machine paused instead of calling for service on a full bin. The production delay can be set for 8 or 16 hours to slow output through overnight lulls. Water filtration is built onboard rather than plumbed as a separate housing, which improves machine efficiency and performance while keeping ice cleaner and clearer, and the filter change indicator tells you when the cartridge is due.
