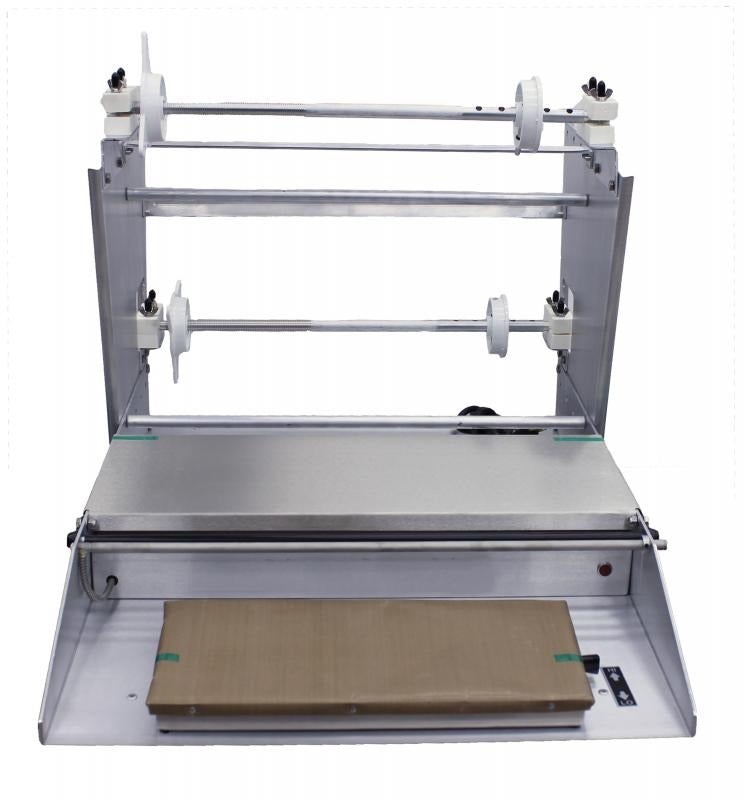

The Omcan 14431 Wrapping Machine
The Omcan SE-US-0533-T is a three-roll capacity wrapping machine with mounting axles, built for commercial use. Each axle takes a stretch film roll up to 18 in wide, so three rolls can be mounted at once. The machine has an all-stainless wrapping surface, a solid state controlled hot rod cut off bar, and a standard size 6 in by 15 in hot plate with a non-stick cover and Hi and Lo temperature control. It runs on 115 V, 60 Hz, single phase with a NEMA 5-15P plug, measures 22.25 in deep, 26 in wide and 18.5 in high, and weighs 44 lb. Plastic film is not included. Put the machine on a stable, flat working area.
Three Mounting Axles for 18 in Film Rolls
The axle assemblies mount at the rear of the machine in bearing blocks, and the film core axle is 21 15/16 in long. To load a roll, loosen the wing nuts and swing out the upper bearing blocks, lift out the axle, unscrew the movable end cap and set the fixed cap for the film width, then feed the film from the bottom of the roll, screw the movable cap back into the film core and tighten the wing nuts to the film tension you want.
6 in by 15 in Hot Plate With Hi and Lo Control
The hot plate is the standard 6 in by 15 in size and carries a non-stick cover. Temperature is set with a Hi and Lo control. A replacement 6 in by 15 in non-stick cover for Omcan wrapping machines is sold as item 28511, and the cover (76356) and the hot plate assembly (76333) are separate parts.
Solid State Hot Rod Cut Off Bar
The film is cut on a solid state controlled hot rod cut off bar; the cut-off hot rod is 23 in long. The unit should not be operated if the rod temperature exceeds 275°F, and use should be discontinued if smoke or fumes are detected. The fuse, the hot rod and the circuit board can be checked with a tester.
Aluminum and Stainless Build With Rubber Feet
The machine has tough aluminum and stainless steel construction with an all-stainless wrapping surface for quick, easy clean up. Extra large rubber feet are fitted to prevent sliding on any counter surface. The one-roll (item 14428) and two-roll (item 14430) versions share the same film width, hot plate and construction.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three-roll capacity with mounting axles, model SE-US-0533-T, so three stretch film rolls can be mounted at once
-
Takes stretch film rolls up to 18 in wide; plastic film is not included
-
Aluminum and stainless steel construction, with the wrapping surface all stainless for easy clean up
-
Solid state controlled hot rod cut off bar, with a 23 in cut-off hot rod
-
Hot plate in the standard 6 in by 15 in size, fitted with a non-stick cover and a Hi and Lo temperature control
-
Replacement 6 in by 15 in non-stick cover sold separately as item 28511
-
Axle end caps reposition for different film widths, and wing nut tension on the bearing blocks sets the film tension
-
Extra large rubber feet to prevent sliding on any counter surface
-
NEMA 5-15P plug
-
Commercial use only
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Three-roll capacity with mounting axles, model SE-US-0533-T, so three stretch film rolls can be mounted at once
Takes stretch film rolls up to 18 in wide; plastic film is not included
Aluminum and stainless steel construction, with the wrapping surface all stainless for easy clean up
Solid state controlled hot rod cut off bar, with a 23 in cut-off hot rod
Hot plate in the standard 6 in by 15 in size, fitted with a non-stick cover and a Hi and Lo temperature control
The Omcan 14431 Wrapping Machine
The Omcan SE-US-0533-T is a three-roll capacity wrapping machine with mounting axles, built for commercial use. Each axle takes a stretch film roll up to 18 in wide, so three rolls can be mounted at once. The machine has an all-stainless wrapping surface, a solid state controlled hot rod cut off bar, and a standard size 6 in by 15 in hot plate with a non-stick cover and Hi and Lo temperature control. It runs on 115 V, 60 Hz, single phase with a NEMA 5-15P plug, measures 22.25 in deep, 26 in wide and 18.5 in high, and weighs 44 lb. Plastic film is not included. Put the machine on a stable, flat working area.
Three Mounting Axles for 18 in Film Rolls
The axle assemblies mount at the rear of the machine in bearing blocks, and the film core axle is 21 15/16 in long. To load a roll, loosen the wing nuts and swing out the upper bearing blocks, lift out the axle, unscrew the movable end cap and set the fixed cap for the film width, then feed the film from the bottom of the roll, screw the movable cap back into the film core and tighten the wing nuts to the film tension you want.
6 in by 15 in Hot Plate With Hi and Lo Control
The hot plate is the standard 6 in by 15 in size and carries a non-stick cover. Temperature is set with a Hi and Lo control. A replacement 6 in by 15 in non-stick cover for Omcan wrapping machines is sold as item 28511, and the cover (76356) and the hot plate assembly (76333) are separate parts.
Solid State Hot Rod Cut Off Bar
The film is cut on a solid state controlled hot rod cut off bar; the cut-off hot rod is 23 in long. The unit should not be operated if the rod temperature exceeds 275°F, and use should be discontinued if smoke or fumes are detected. The fuse, the hot rod and the circuit board can be checked with a tester.
Aluminum and Stainless Build With Rubber Feet
The machine has tough aluminum and stainless steel construction with an all-stainless wrapping surface for quick, easy clean up. Extra large rubber feet are fitted to prevent sliding on any counter surface. The one-roll (item 14428) and two-roll (item 14430) versions share the same film width, hot plate and construction.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three-roll capacity with mounting axles, model SE-US-0533-T, so three stretch film rolls can be mounted at once
-
Takes stretch film rolls up to 18 in wide; plastic film is not included
-
Aluminum and stainless steel construction, with the wrapping surface all stainless for easy clean up
-
Solid state controlled hot rod cut off bar, with a 23 in cut-off hot rod
-
Hot plate in the standard 6 in by 15 in size, fitted with a non-stick cover and a Hi and Lo temperature control
-
Replacement 6 in by 15 in non-stick cover sold separately as item 28511
-
Axle end caps reposition for different film widths, and wing nut tension on the bearing blocks sets the film tension
-
Extra large rubber feet to prevent sliding on any counter surface
-
NEMA 5-15P plug
-
Commercial use only
Resources & Downloads
See all from Omcan
Specifications
| Model | SE-US-0533-T |
| Type | Three-roll capacity with mounting axles |
| Stretch Film Width | Up to 18 in (45.7 cm) |
| Hot Plate | 6 in x 15 in (15.2 x 38 cm) |
| Hot Plate Cover | Non-stick |
| Hot Plate Control | Hi and Lo |
| Cut Off Bar | Solid state controlled hot rod |
| Cut-Off Hot Rod Length | 23 in |
| Film Core Axle Length | 21 15/16 in |
| Electrical | 115 V / 60 Hz / 1 Ph |
| Plug | NEMA 5-15P, 125 VAC, 15 A |
| Construction | Aluminum and stainless steel |
| Wrapping Surface | Stainless steel |
| Feet | Extra large rubber |
| Dimensions (DWH) | 22.25 in x 26 in x 18.5 in (57.2 x 66 x 47 cm) |
| Net Weight | 44 lb (20 kg) |
| Plastic Film | Not included |
| Replacement Non-Stick Cover | Item 28511 |
| Country of Origin | United States |
Manufacturer's Warranty
-
1 Year
Labor
-
1 Year
Parts
Certifications & Approvals
-
NSF Approved
