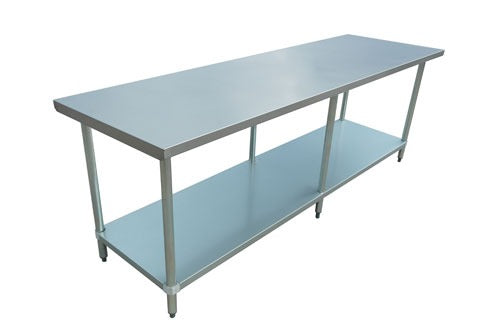

The Omcan 20198 Work Table
This Omcan Elite Series work table puts an 84 by 24 inch 18 gauge 430 stainless steel flat top over a galvanized undershelf, a working surface for prep, portioning and packing. The top is rated for a load of 1411 lb (640 kg). The table stands 34 inches high. Measure your wall run and aisle clearance against the 84 inch width before ordering. The table ships knocked down: the six galvanized legs and the undershelf go together on site with the leg clamps and the eight set screws supplied, so the table is assembled where it will work.
18-Gauge 430 Stainless Steel Flat Top
The work surface is 18 gauge type 430 stainless steel. The top is flat with no backsplash; The same 84 by 24 inch table with a 4 inch backsplash is a separate item, 23799. The table is designed and finished for commercial use, and minor surface marks such as dimples, scratches, scuffs and indents are normal on products of this nature.
Galvanized Undershelf on Rolled Die Cast Leg Clamps
Below the top, a galvanized steel undershelf gives you a second level for storage. The shelf mounts on rolled die cast leg clamps. If the shelf ever needs replacing, the matching 84 by 24 inch galvanized undershelf is available separately as item 17620.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut. Each of the six galvanized legs is secured with a single set screw. To assemble, the legs and undershelf assembly are inserted into the gussets, the set screws tightened, and the table turned upright and levelled by adjusting the plastic bullet feet; silicone sealer for the set screws is not included. Optional stainless steel bullet feet (item 39313) and adjustable bullet feet with a plastic inside and stainless steel outside (item 23520) are listed separately, as are 5 inch casters with brake (item 14395) and without brake (item 47599), a galvanized leg brace for the 24 by 84 inch table (item 39033) and a drawer for 24 inch work tables (item 24578).
Size and Load Rating
The 24 inch depth is the slimmer of the two depths Omcan offers in the Elite Series, which runs in 24 and 30 inch depths and in widths from 24 to 96 inches. The load capacity for this 84 inch table on six legs is 1411 lb (640 kg), and the net weight is 73.2 lb (33.2 kg). The top measures 84 by 24 inches at 34 inches high, the six legs sit in two rows of three with 38 3/4 in between leg centres along the length and 15 7/8 in across, set in 3 1/4 in from each end and 4 1/16 in from each side, and the leg diameter is 1 5/8 inches.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Elite Series work table with a 24 by 84 inch top in 18 gauge type 430 stainless steel, flat with no backsplash, one size in a series that runs 24 to 96 inches wide in 24 and 30 inch depths
-
Galvanized undershelf below the top, mounted on rolled die cast leg clamps
-
Support channels secured with a bolt and acorn style nut
-
Six galvanized legs, each secured by a single set screw, on plastic bullet feet that adjust to level the table
-
Ships knocked down with eight set screws; legs, undershelf and top are assembled on site, and silicone sealer for the set screws is not included
-
Legs are set in 3 1/4 in from each end with 38 3/4 in between leg centres along the length and 15 7/8 in across
-
The same 24 by 84 inch table with a 4 inch backsplash is a separate item, 23799
-
Replacement 24 by 84 inch galvanized undershelf is item 17620; stainless steel bullet feet (39313), 5 inch casters (14395, 47599), a leg brace (39033) and a drawer (24578) are listed as separate accessories
-
Designed and finished for commercial use; minor surface marks such as dimples, scratches and scuffs are normal
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Elite Series work table with a 24 by 84 inch top in 18 gauge type 430 stainless steel, flat with no backsplash, one size in a series that runs 24 to 96 inches wide in 24 and 30 inch depths
Galvanized undershelf below the top, mounted on rolled die cast leg clamps
Support channels secured with a bolt and acorn style nut
Six galvanized legs, each secured by a single set screw, on plastic bullet feet that adjust to level the table
Ships knocked down with eight set screws; legs, undershelf and top are assembled on site, and silicone sealer for the set screws is not included
The Omcan 20198 Work Table
This Omcan Elite Series work table puts an 84 by 24 inch 18 gauge 430 stainless steel flat top over a galvanized undershelf, a working surface for prep, portioning and packing. The top is rated for a load of 1411 lb (640 kg). The table stands 34 inches high. Measure your wall run and aisle clearance against the 84 inch width before ordering. The table ships knocked down: the six galvanized legs and the undershelf go together on site with the leg clamps and the eight set screws supplied, so the table is assembled where it will work.
18-Gauge 430 Stainless Steel Flat Top
The work surface is 18 gauge type 430 stainless steel. The top is flat with no backsplash; The same 84 by 24 inch table with a 4 inch backsplash is a separate item, 23799. The table is designed and finished for commercial use, and minor surface marks such as dimples, scratches, scuffs and indents are normal on products of this nature.
Galvanized Undershelf on Rolled Die Cast Leg Clamps
Below the top, a galvanized steel undershelf gives you a second level for storage. The shelf mounts on rolled die cast leg clamps. If the shelf ever needs replacing, the matching 84 by 24 inch galvanized undershelf is available separately as item 17620.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut. Each of the six galvanized legs is secured with a single set screw. To assemble, the legs and undershelf assembly are inserted into the gussets, the set screws tightened, and the table turned upright and levelled by adjusting the plastic bullet feet; silicone sealer for the set screws is not included. Optional stainless steel bullet feet (item 39313) and adjustable bullet feet with a plastic inside and stainless steel outside (item 23520) are listed separately, as are 5 inch casters with brake (item 14395) and without brake (item 47599), a galvanized leg brace for the 24 by 84 inch table (item 39033) and a drawer for 24 inch work tables (item 24578).
Size and Load Rating
The 24 inch depth is the slimmer of the two depths Omcan offers in the Elite Series, which runs in 24 and 30 inch depths and in widths from 24 to 96 inches. The load capacity for this 84 inch table on six legs is 1411 lb (640 kg), and the net weight is 73.2 lb (33.2 kg). The top measures 84 by 24 inches at 34 inches high, the six legs sit in two rows of three with 38 3/4 in between leg centres along the length and 15 7/8 in across, set in 3 1/4 in from each end and 4 1/16 in from each side, and the leg diameter is 1 5/8 inches.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Elite Series work table with a 24 by 84 inch top in 18 gauge type 430 stainless steel, flat with no backsplash, one size in a series that runs 24 to 96 inches wide in 24 and 30 inch depths
-
Galvanized undershelf below the top, mounted on rolled die cast leg clamps
-
Support channels secured with a bolt and acorn style nut
-
Six galvanized legs, each secured by a single set screw, on plastic bullet feet that adjust to level the table
-
Ships knocked down with eight set screws; legs, undershelf and top are assembled on site, and silicone sealer for the set screws is not included
-
Legs are set in 3 1/4 in from each end with 38 3/4 in between leg centres along the length and 15 7/8 in across
-
The same 24 by 84 inch table with a 4 inch backsplash is a separate item, 23799
-
Replacement 24 by 84 inch galvanized undershelf is item 17620; stainless steel bullet feet (39313), 5 inch casters (14395, 47599), a leg brace (39033) and a drawer (24578) are listed as separate accessories
-
Designed and finished for commercial use; minor surface marks such as dimples, scratches and scuffs are normal
Resources & Downloads
See all from Omcan
Specifications
| Top Size | 24 x 84 in |
| Overall Width | 84 in |
| Overall Depth | 24 in |
| Overall Height | 34 in |
| Top Style | Flat |
| Top Material | 430 stainless steel |
| Top Gauge | 18 gauge |
| Load Capacity | 1411 lb / 640 kg |
| Net Weight | 73.2 lb / 33.2 kg |
| Undershelf | Galvanized steel |
| Undershelf Mounting | Rolled die cast leg clamps |
| Support Channel Fastening | Bolt and acorn style nut |
| Number of Legs | 6 |
| Legs | Galvanized steel |
| Leg Attachment | Single set screw |
| Leg Diameter | 1 5/8 in |
| Leg Spacing (Centre to Centre) | 2 x 38 3/4 in along length, 15 7/8 in across |
| Feet | Plastic bullet, adjustable |
| Assembly | Knocked down, assembly required |
| Included Hardware | 8 set screws |
| Replacement Undershelf | Item 17620 |
| Backsplash Version | Item 23799 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
