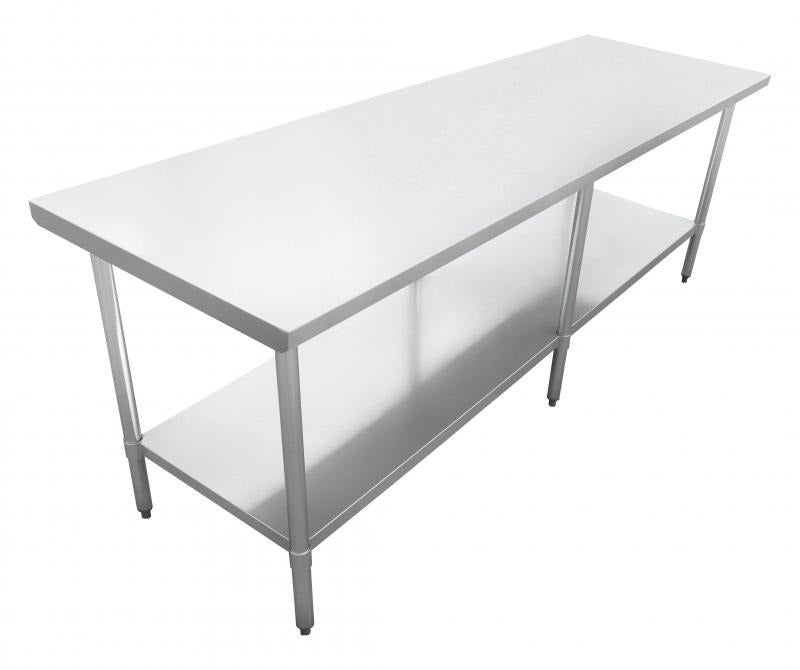

The Omcan 22076 Work Table
This Omcan Standard series work table puts a 30 by 84 inch 18-gauge 430 stainless steel flat top over a galvanized undershelf, giving you a 30 inch deep, 84 inch wide prep station. The top is rated for a 1091 pound (495 kg) load and the table stands 34 inches high, so measure your wall run or floor footprint against the 84 by 30 inch top before ordering. The table ships unassembled: the six legs seat in corner leg clamps and are held with set screws, and the legs and undershelf fit into gussets under the top, so plan for assembly on site.
18-Gauge 430 Stainless Steel Flat Top
The work surface is 18-gauge type 430 stainless steel, a durable, easy-to-clean surface for food prep and daily kitchen tasks. The top arrives under a protective plastic film that comes off once the table is assembled and leveled. This is the flat-top version with no backsplash; Omcan lists the same 30 by 84 inch size with a 4 inch backsplash separately as item 22091.
Galvanized Undershelf on Welded V Pipe Leg Supports
Below the top, a galvanized steel undershelf adds a second level of storage. The shelf is reinforced with welded V pipe leg supports for added stability. If the shelf is ever damaged, a matching replacement is available separately under item 22106.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut for added stability. Each of the six galvanized legs is held in its corner leg clamp by a single set screw; installations that must meet sanitation certification require those set screws to be filled with an approved silicone sealer, which is not included. Plastic bullet feet on the legs adjust to level the table on an uneven floor. Optional stainless steel bullet feet, item 39313, and a plastic-in-stainless combination foot, item 23520, are available separately, along with a galvanized leg brace, item 39387, a drawer for 30 inch work tables, item 24579, and 5 inch casters with or without a brake, items 14395 and 47599. Omcan also offers welded stainless steel versions of these tables by request.
1091-Pound Load Rating Across 84 Inches
Omcan rates the 30 by 84 inch top for a 1091 pound (495 kg) load on six legs. Net dimensions are 30 by 84 by 34 inches (762 x 2133.6 x 864 mm), with the top sitting 34 inches off the floor.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Standard series work table with a 30 by 84 inch flat top and no backsplash
-
18-gauge 430 stainless steel top is easy to clean for food prep and daily kitchen tasks
-
Galvanized undershelf adds a second level of storage below the top
-
Welded V pipe leg supports reinforce the undershelf for added stability
-
Support channels under the top secured with a bolt and acorn style nut
-
Six galvanized legs, each held in its corner leg clamp by a single set screw
-
Plastic bullet feet adjust to level the table on an uneven floor
-
Ships unassembled; legs, undershelf and top go together with the included set screws
-
Replacement undershelf 22106, leg brace 39387, drawer 24579, 5 inch casters and stainless steel bullet feet listed as separate accessories
-
Welded stainless steel version available by request
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Standard series work table with a 30 by 84 inch flat top and no backsplash
18-gauge 430 stainless steel top is easy to clean for food prep and daily kitchen tasks
Galvanized undershelf adds a second level of storage below the top
Welded V pipe leg supports reinforce the undershelf for added stability
Support channels under the top secured with a bolt and acorn style nut
The Omcan 22076 Work Table
This Omcan Standard series work table puts a 30 by 84 inch 18-gauge 430 stainless steel flat top over a galvanized undershelf, giving you a 30 inch deep, 84 inch wide prep station. The top is rated for a 1091 pound (495 kg) load and the table stands 34 inches high, so measure your wall run or floor footprint against the 84 by 30 inch top before ordering. The table ships unassembled: the six legs seat in corner leg clamps and are held with set screws, and the legs and undershelf fit into gussets under the top, so plan for assembly on site.
18-Gauge 430 Stainless Steel Flat Top
The work surface is 18-gauge type 430 stainless steel, a durable, easy-to-clean surface for food prep and daily kitchen tasks. The top arrives under a protective plastic film that comes off once the table is assembled and leveled. This is the flat-top version with no backsplash; Omcan lists the same 30 by 84 inch size with a 4 inch backsplash separately as item 22091.
Galvanized Undershelf on Welded V Pipe Leg Supports
Below the top, a galvanized steel undershelf adds a second level of storage. The shelf is reinforced with welded V pipe leg supports for added stability. If the shelf is ever damaged, a matching replacement is available separately under item 22106.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut for added stability. Each of the six galvanized legs is held in its corner leg clamp by a single set screw; installations that must meet sanitation certification require those set screws to be filled with an approved silicone sealer, which is not included. Plastic bullet feet on the legs adjust to level the table on an uneven floor. Optional stainless steel bullet feet, item 39313, and a plastic-in-stainless combination foot, item 23520, are available separately, along with a galvanized leg brace, item 39387, a drawer for 30 inch work tables, item 24579, and 5 inch casters with or without a brake, items 14395 and 47599. Omcan also offers welded stainless steel versions of these tables by request.
1091-Pound Load Rating Across 84 Inches
Omcan rates the 30 by 84 inch top for a 1091 pound (495 kg) load on six legs. Net dimensions are 30 by 84 by 34 inches (762 x 2133.6 x 864 mm), with the top sitting 34 inches off the floor.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Standard series work table with a 30 by 84 inch flat top and no backsplash
-
18-gauge 430 stainless steel top is easy to clean for food prep and daily kitchen tasks
-
Galvanized undershelf adds a second level of storage below the top
-
Welded V pipe leg supports reinforce the undershelf for added stability
-
Support channels under the top secured with a bolt and acorn style nut
-
Six galvanized legs, each held in its corner leg clamp by a single set screw
-
Plastic bullet feet adjust to level the table on an uneven floor
-
Ships unassembled; legs, undershelf and top go together with the included set screws
-
Replacement undershelf 22106, leg brace 39387, drawer 24579, 5 inch casters and stainless steel bullet feet listed as separate accessories
-
Welded stainless steel version available by request
Resources & Downloads
See all from Omcan
Specifications
| Top Size | 30 x 84 in |
| Overall Width | 84 in |
| Overall Depth | 30 in |
| Overall Height | 34 in |
| Top Style | Flat |
| Net Dimensions (Metric) | 762 x 2133.6 x 864 mm |
| Top Material | 430 stainless steel |
| Top Gauge | 18 gauge |
| Load Capacity | 1091 lb / 495 kg |
| Undershelf | Galvanized steel |
| Undershelf Supports | Welded V pipe leg supports |
| Support Channel Fastening | Bolt and acorn nut |
| Number of Legs | 6 |
| Legs | Galvanized steel |
| Leg Attachment | Single set screw in corner leg clamp |
| Feet | Plastic bullet |
| Assembly | Required, ships unassembled |
| Replacement Undershelf | Item 22106 |
| Optional Leg Brace | Item 39387 |
| Optional Drawer | Item 24579 |
| Optional Casters | Items 47599, 14395 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
