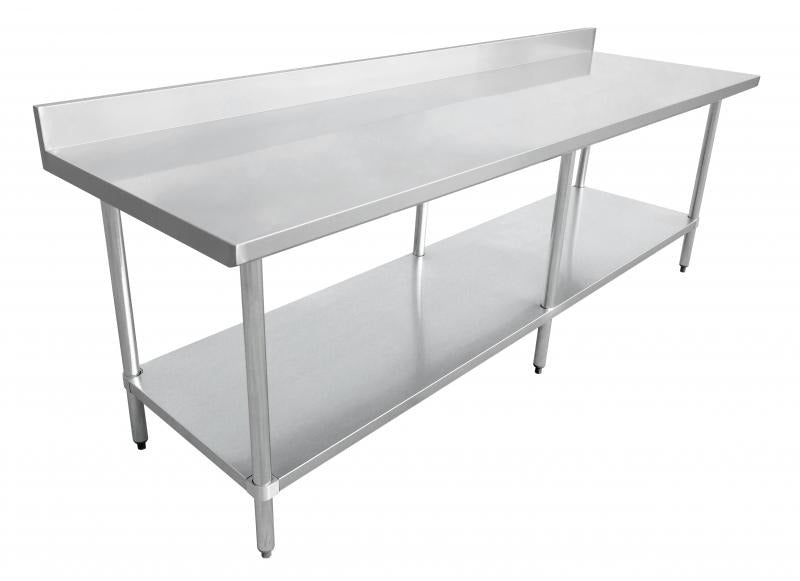

The Omcan 22092 Work Table
This Omcan Standard series work table puts a 30 by 96 inch 18-gauge 430 stainless steel top with a 4 inch backsplash over an 18-gauge galvanized undershelf, giving you a 30 inch deep, 96 inch wide prep station that sits against a wall. The top is rated for a 1157 pound (524.8 kg) load and the table stands 38 inches high to the top of the backsplash, so measure your wall run against the 96 inch width before ordering. The table ships unassembled: the six galvanized legs seat in their sockets and are held with set screws, and the legs and undershelf fit into gussets under the top, so plan for assembly on site.
18-Gauge 430 Stainless Steel Top with a 4-Inch Backsplash
The work surface is 18-gauge type 430 stainless steel, a durable, easy-to-clean surface for food prep and daily kitchen tasks. The 4 inch (101.6 mm) backsplash rises off the back edge of the top, with a 1 inch return at its top edge, and helps keep spills and debris from falling behind the table. The top arrives under a protective plastic film that comes off once the table is assembled and leveled.
Galvanized Undershelf on Welded V Pipe Leg Supports
Below the top, an 18-gauge galvanized steel undershelf adds a second level of storage. The shelf is reinforced with welded V pipe leg supports for added stability. If the shelf is ever damaged, a matching replacement is available separately under item 22107.
Bolted Support Channels and Set Screw Legs
The galvanized hat channels under the top are secured with a bolt and acorn style nut for added stability. Each of the six galvanized legs measures 1 5/8 inches across and is held in its leg socket by a single set screw; installations that must meet sanitation certification require those set screws to be filled with an approved silicone sealer, which is not included. The legs sit on 44 11/16 inch centers along the length and 22 1/8 inch centers across the depth, set in 3 5/16 inches from each end of the top. Plastic bullet feet on the legs adjust to level the table on an uneven floor. Optional stainless steel bullet feet, item 39313, and a plastic-in-stainless combination foot, item 23520, are available separately, along with a galvanized leg brace, item 39388, a drawer for 30 inch work tables, item 24579, and 5 inch casters with or without a brake, items 14395 and 47599. Omcan also offers welded stainless steel versions of these tables by request.
1157-Pound Load Rating Across 96 Inches
Omcan rates the 30 by 96 inch top for a 1157 pound (524.8 kg) load on six legs. The top measures 30 by 96 inches (762 x 2438 mm) and the table stands 38 inches (965 mm) overall including the backsplash.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Standard series work table with a 30 by 96 inch top and a 4 inch backsplash for a wall run
-
18-gauge 430 stainless steel top is easy to clean for food prep and daily kitchen tasks
-
4 inch backsplash with a 1 inch top return helps keep spills and debris from falling behind the table
-
Galvanized undershelf adds a second level of storage below the top
-
Welded V pipe leg supports reinforce the undershelf for added stability
-
Support channels under the top secured with a bolt and acorn style nut
-
Six galvanized legs, 1 5/8 inches across, each held in its socket by a single set screw
-
Plastic bullet feet adjust to level the table on an uneven floor
-
Ships unassembled; legs, undershelf and top go together with the included set screws
-
Replacement undershelf 22107, leg brace 39388, drawer 24579, 5 inch casters and stainless steel bullet feet listed as separate accessories
-
Welded stainless steel version available by request
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Standard series work table with a 30 by 96 inch top and a 4 inch backsplash for a wall run
18-gauge 430 stainless steel top is easy to clean for food prep and daily kitchen tasks
4 inch backsplash with a 1 inch top return helps keep spills and debris from falling behind the table
Galvanized undershelf adds a second level of storage below the top
Welded V pipe leg supports reinforce the undershelf for added stability
The Omcan 22092 Work Table
This Omcan Standard series work table puts a 30 by 96 inch 18-gauge 430 stainless steel top with a 4 inch backsplash over an 18-gauge galvanized undershelf, giving you a 30 inch deep, 96 inch wide prep station that sits against a wall. The top is rated for a 1157 pound (524.8 kg) load and the table stands 38 inches high to the top of the backsplash, so measure your wall run against the 96 inch width before ordering. The table ships unassembled: the six galvanized legs seat in their sockets and are held with set screws, and the legs and undershelf fit into gussets under the top, so plan for assembly on site.
18-Gauge 430 Stainless Steel Top with a 4-Inch Backsplash
The work surface is 18-gauge type 430 stainless steel, a durable, easy-to-clean surface for food prep and daily kitchen tasks. The 4 inch (101.6 mm) backsplash rises off the back edge of the top, with a 1 inch return at its top edge, and helps keep spills and debris from falling behind the table. The top arrives under a protective plastic film that comes off once the table is assembled and leveled.
Galvanized Undershelf on Welded V Pipe Leg Supports
Below the top, an 18-gauge galvanized steel undershelf adds a second level of storage. The shelf is reinforced with welded V pipe leg supports for added stability. If the shelf is ever damaged, a matching replacement is available separately under item 22107.
Bolted Support Channels and Set Screw Legs
The galvanized hat channels under the top are secured with a bolt and acorn style nut for added stability. Each of the six galvanized legs measures 1 5/8 inches across and is held in its leg socket by a single set screw; installations that must meet sanitation certification require those set screws to be filled with an approved silicone sealer, which is not included. The legs sit on 44 11/16 inch centers along the length and 22 1/8 inch centers across the depth, set in 3 5/16 inches from each end of the top. Plastic bullet feet on the legs adjust to level the table on an uneven floor. Optional stainless steel bullet feet, item 39313, and a plastic-in-stainless combination foot, item 23520, are available separately, along with a galvanized leg brace, item 39388, a drawer for 30 inch work tables, item 24579, and 5 inch casters with or without a brake, items 14395 and 47599. Omcan also offers welded stainless steel versions of these tables by request.
1157-Pound Load Rating Across 96 Inches
Omcan rates the 30 by 96 inch top for a 1157 pound (524.8 kg) load on six legs. The top measures 30 by 96 inches (762 x 2438 mm) and the table stands 38 inches (965 mm) overall including the backsplash.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Standard series work table with a 30 by 96 inch top and a 4 inch backsplash for a wall run
-
18-gauge 430 stainless steel top is easy to clean for food prep and daily kitchen tasks
-
4 inch backsplash with a 1 inch top return helps keep spills and debris from falling behind the table
-
Galvanized undershelf adds a second level of storage below the top
-
Welded V pipe leg supports reinforce the undershelf for added stability
-
Support channels under the top secured with a bolt and acorn style nut
-
Six galvanized legs, 1 5/8 inches across, each held in its socket by a single set screw
-
Plastic bullet feet adjust to level the table on an uneven floor
-
Ships unassembled; legs, undershelf and top go together with the included set screws
-
Replacement undershelf 22107, leg brace 39388, drawer 24579, 5 inch casters and stainless steel bullet feet listed as separate accessories
-
Welded stainless steel version available by request
Resources & Downloads
See all from Omcan
Specifications
| Top Size | 30 x 96 in |
| Overall Width | 96 in |
| Overall Depth | 30 in |
| Overall Height | 38 in |
| Backsplash Height | 4 in |
| Backsplash Top Return | 1 in |
| Net Dimensions (Metric) | 762 x 2438 x 965 mm |
| Top Material | 430 stainless steel |
| Top Gauge | 18 gauge |
| Load Capacity | 1157 lb / 524.8 kg |
| Undershelf | Galvanized steel |
| Undershelf Gauge | 18 gauge |
| Undershelf Supports | Welded V pipe leg supports |
| Support Channel Fastening | Bolt and acorn nut |
| Number of Legs | 6 |
| Legs | Galvanized steel |
| Leg Diameter | 1 5/8 in |
| Leg Spacing Along Length | 44 11/16 in on center |
| Leg Spacing Across Depth | 22 1/8 in on center |
| Leg Attachment | Single set screw in leg socket |
| Feet | Plastic bullet |
| Assembly | Required, ships unassembled |
| Replacement Undershelf | Item 22107 |
| Optional Leg Brace | Item 39388 |
| Optional Drawer | Item 24579 |
| Optional Casters | Items 47599, 14395 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
