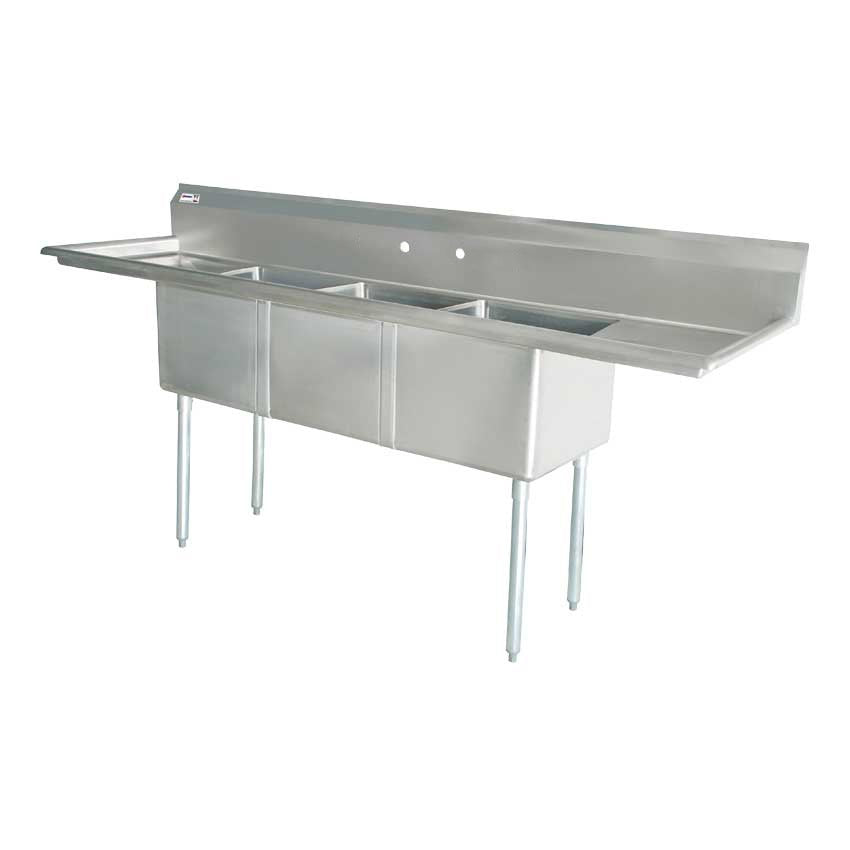

The Omcan 22117 3 Compartment Sink
This Omcan three compartment pot sink has three 18 x 18 inch bowls, each 11 inches deep, with a corner drain and a drain guard for each bowl. An 18 inch drain board on each end brings the overall width to 90 inches, and the sink stands 44 inches tall overall including the 9-3/4 inch backsplash. The sink is 18-gauge stainless steel, shipped with its 16-gauge galvanized legs removed for attachment on site.
Three 18-Inch Square Bowls, 11 Inches Deep
Each bowl measures 18 x 18 inches and is 11 inches deep, with 2 inch partitions between the bowls. There are 3/4 inch radii where the deck rolls into each bowl and at the bowl bottom corners.
18-Gauge Stainless Steel Construction
The sink is 18-gauge stainless steel. The backsplash rises 9-3/4 inches above the deck line and is returned 2 inches at the top. The legs are 16-gauge galvanized steel.
Corner Drains with Included Drain Guards
Each bowl has a 1.8 inch (4.6 cm) drain in its corner, and the sink comes with drain guards, each a perforated guard standing in the bowl corner over the drain. A center drain version of this layout is item 43763. Two 1-1/8 inch faucet holes are punched on 8 inch centers in the backsplash, with their centerline 39 inches above the floor.
Drain Boards on Both Sides of the Bowls
An 18 inch drain board sits at each end of the three bowls, for an overall width of 90 inches by 23-1/2 inches deep. The same bowls without a drain board or with a single left or right drain board are items 22114, 22115 and 22116.
Knockdown Design with Galvanized Legs
The sink ships with its 16-gauge galvanized legs removed. Installation starts with the legs fitting into sockets under the sink and being secured with fasteners, then the drain, the corner drain guard and a standpipe are fitted. The legs sit 49-1/2 inches apart across the front and 13-1/2 inches front to back, and they end in bullet feet. An optional leg brace for 18 x 18 inch sinks is item 21137, and splash-mounted faucets (items 39256 and 23516), pre-rinse assemblies (22123 and 22124) and left and right splash guards (47727 and 47728) are available as related accessories.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three compartment pot sink with three 18 x 18 inch bowls, each 11 inches deep
-
Corner drain in each bowl, 1.8 inches (4.6 cm), with drain guards included
-
18-gauge stainless steel sink body with a 9-3/4 inch backsplash
-
Two 1-1/8 inch faucet holes on 8 inch centers in the backsplash
-
18 inch drain board on each end of the bowls, for a 90 inch overall width
-
Shipped with its 16-gauge galvanized legs removed for attachment on site
-
Also offered with center drains as item 43763; optional leg brace 21137 and knockdown drain board 21142 available
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Three compartment pot sink with three 18 x 18 inch bowls, each 11 inches deep
Corner drain in each bowl, 1.8 inches (4.6 cm), with drain guards included
18-gauge stainless steel sink body with a 9-3/4 inch backsplash
Two 1-1/8 inch faucet holes on 8 inch centers in the backsplash
18 inch drain board on each end of the bowls, for a 90 inch overall width
The Omcan 22117 3 Compartment Sink
This Omcan three compartment pot sink has three 18 x 18 inch bowls, each 11 inches deep, with a corner drain and a drain guard for each bowl. An 18 inch drain board on each end brings the overall width to 90 inches, and the sink stands 44 inches tall overall including the 9-3/4 inch backsplash. The sink is 18-gauge stainless steel, shipped with its 16-gauge galvanized legs removed for attachment on site.
Three 18-Inch Square Bowls, 11 Inches Deep
Each bowl measures 18 x 18 inches and is 11 inches deep, with 2 inch partitions between the bowls. There are 3/4 inch radii where the deck rolls into each bowl and at the bowl bottom corners.
18-Gauge Stainless Steel Construction
The sink is 18-gauge stainless steel. The backsplash rises 9-3/4 inches above the deck line and is returned 2 inches at the top. The legs are 16-gauge galvanized steel.
Corner Drains with Included Drain Guards
Each bowl has a 1.8 inch (4.6 cm) drain in its corner, and the sink comes with drain guards, each a perforated guard standing in the bowl corner over the drain. A center drain version of this layout is item 43763. Two 1-1/8 inch faucet holes are punched on 8 inch centers in the backsplash, with their centerline 39 inches above the floor.
Drain Boards on Both Sides of the Bowls
An 18 inch drain board sits at each end of the three bowls, for an overall width of 90 inches by 23-1/2 inches deep. The same bowls without a drain board or with a single left or right drain board are items 22114, 22115 and 22116.
Knockdown Design with Galvanized Legs
The sink ships with its 16-gauge galvanized legs removed. Installation starts with the legs fitting into sockets under the sink and being secured with fasteners, then the drain, the corner drain guard and a standpipe are fitted. The legs sit 49-1/2 inches apart across the front and 13-1/2 inches front to back, and they end in bullet feet. An optional leg brace for 18 x 18 inch sinks is item 21137, and splash-mounted faucets (items 39256 and 23516), pre-rinse assemblies (22123 and 22124) and left and right splash guards (47727 and 47728) are available as related accessories.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three compartment pot sink with three 18 x 18 inch bowls, each 11 inches deep
-
Corner drain in each bowl, 1.8 inches (4.6 cm), with drain guards included
-
18-gauge stainless steel sink body with a 9-3/4 inch backsplash
-
Two 1-1/8 inch faucet holes on 8 inch centers in the backsplash
-
18 inch drain board on each end of the bowls, for a 90 inch overall width
-
Shipped with its 16-gauge galvanized legs removed for attachment on site
-
Also offered with center drains as item 43763; optional leg brace 21137 and knockdown drain board 21142 available
Resources & Downloads
See all from Omcan
Specifications
| Number of Compartments | 3 |
| Bowl Size | 18 x 18 in (457 x 457 mm) |
| Bowl Depth | 11 in (279 mm) |
| Bowl Radius | 3/4 in |
| Bowl Partition Width | 2 in |
| Drain Location | Corner |
| Drain Size | 1.8 in (4.6 cm) |
| Drain Guards | Included |
| Faucet Holes | 2 |
| Faucet Hole Spacing | 8 in centers |
| Faucet Hole Diameter | 1-1/8 in |
| Backsplash Height | 9-3/4 in |
| Drain Board | Left and right, 18 in each |
| Material | 18-gauge stainless steel |
| Legs | 16-gauge galvanized steel |
| Leg Spacing | 49-1/2 x 13-1/2 in |
| Assembly | Shipped with legs removed |
| Overall Width | 90 in (2286 mm) |
| Overall Depth | 23-1/2 in (597 mm) |
| Overall Height | 44 in (1118 mm) |
| Weight | 95 lb (43 kg) |
| Center Drain Version | Item 43763 |
| Optional Leg Brace | Item 21137 |
| Optional Drain Board | Item 21142 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
