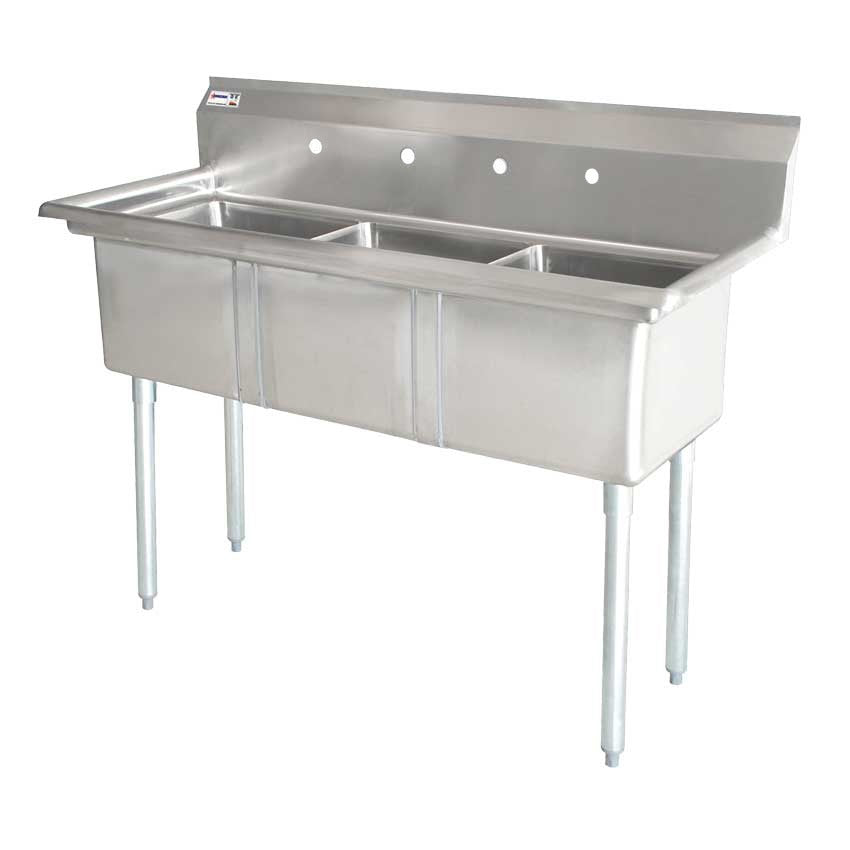

The Omcan 22120 3 Compartment Sink
This Omcan three compartment pot sink has three 24 x 24 inch bowls, each 14 inches deep, with a corner drain and a drain guard for each bowl and no drain board. The overall footprint is 77 inches wide by 29-1/2 inches deep, and the sink stands 44 inches tall overall. The sink is 18-gauge stainless steel, shipped with its 16-gauge galvanized legs removed for attachment on site.
Three 24-Inch Square Bowls, 14 Inches Deep
Each bowl measures 24 x 24 inches and is 14 inches deep, with 2 inch partitions between the bowls. There are 3/4 inch radii where the deck rolls into the bowls and at the bowl bottom corners.
18-Gauge Stainless Steel Construction
The sink is 18-gauge stainless steel. The top of the backsplash is 9-3/4 inches above the underside of the 2-1/2 inch deck edge, and the backsplash is returned 2 inches at the top. The legs are 16-gauge galvanized steel.
Corner Drains with Included Drain Guards
Each bowl has a 1.8 inch (4.6 cm) drain in its corner, and the sink comes with drain guards, each a perforated guard standing in the bowl corner over the drain. A center drain version of this layout is item 43787. Four 1-1/8 inch faucet holes are punched in the backsplash in two pairs on 8 inch centers, with their centerline 39 inches above the floor.
77-Inch Overall Width Without Drain Boards
This is the no-drain-board version of the 24 x 24 inch three tub sink, 77 inches wide by 29-1/2 inches deep. The same bowls with a left drain board, a right drain board or two drain boards are items 25259, 25260 and 25261, and a removable stainless steel knockdown drain board for 24 x 24 inch sinks is optional accessory 21143.
Knockdown Design with Galvanized Legs
The sink ships with its 16-gauge galvanized legs removed. Installation starts with the legs fitting into sockets under the sink and being secured with fasteners, then the drain, the corner drain guard and a standpipe are fitted. The legs sit 67-1/2 inches apart across the front and 19-1/2 inches front to back, and they end in bullet feet. An optional leg brace for 24 x 24 inch three tub sinks is item 21141, and splash-mounted faucets (items 23516 and 23517), pre-rinse assemblies (22123 and 22124) and left and right splash guards (47733 and 47734) are available as related accessories.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three compartment pot sink with three 24 x 24 inch bowls, each 14 inches deep
-
Corner drain in each bowl, 1.8 inches (4.6 cm), with drain guards included
-
18-gauge stainless steel sink body with a backsplash returned 2 inches at the top
-
Four 1-1/8 inch faucet holes in the backsplash, in two pairs on 8 inch centers
-
No drain board, for a 77 inch overall width
-
Shipped with its 16-gauge galvanized legs removed for attachment on site
-
Also offered with center drains as item 43787; optional leg brace 21141 and knockdown drain board 21143 available
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Three compartment pot sink with three 24 x 24 inch bowls, each 14 inches deep
Corner drain in each bowl, 1.8 inches (4.6 cm), with drain guards included
18-gauge stainless steel sink body with a backsplash returned 2 inches at the top
Four 1-1/8 inch faucet holes in the backsplash, in two pairs on 8 inch centers
No drain board, for a 77 inch overall width
The Omcan 22120 3 Compartment Sink
This Omcan three compartment pot sink has three 24 x 24 inch bowls, each 14 inches deep, with a corner drain and a drain guard for each bowl and no drain board. The overall footprint is 77 inches wide by 29-1/2 inches deep, and the sink stands 44 inches tall overall. The sink is 18-gauge stainless steel, shipped with its 16-gauge galvanized legs removed for attachment on site.
Three 24-Inch Square Bowls, 14 Inches Deep
Each bowl measures 24 x 24 inches and is 14 inches deep, with 2 inch partitions between the bowls. There are 3/4 inch radii where the deck rolls into the bowls and at the bowl bottom corners.
18-Gauge Stainless Steel Construction
The sink is 18-gauge stainless steel. The top of the backsplash is 9-3/4 inches above the underside of the 2-1/2 inch deck edge, and the backsplash is returned 2 inches at the top. The legs are 16-gauge galvanized steel.
Corner Drains with Included Drain Guards
Each bowl has a 1.8 inch (4.6 cm) drain in its corner, and the sink comes with drain guards, each a perforated guard standing in the bowl corner over the drain. A center drain version of this layout is item 43787. Four 1-1/8 inch faucet holes are punched in the backsplash in two pairs on 8 inch centers, with their centerline 39 inches above the floor.
77-Inch Overall Width Without Drain Boards
This is the no-drain-board version of the 24 x 24 inch three tub sink, 77 inches wide by 29-1/2 inches deep. The same bowls with a left drain board, a right drain board or two drain boards are items 25259, 25260 and 25261, and a removable stainless steel knockdown drain board for 24 x 24 inch sinks is optional accessory 21143.
Knockdown Design with Galvanized Legs
The sink ships with its 16-gauge galvanized legs removed. Installation starts with the legs fitting into sockets under the sink and being secured with fasteners, then the drain, the corner drain guard and a standpipe are fitted. The legs sit 67-1/2 inches apart across the front and 19-1/2 inches front to back, and they end in bullet feet. An optional leg brace for 24 x 24 inch three tub sinks is item 21141, and splash-mounted faucets (items 23516 and 23517), pre-rinse assemblies (22123 and 22124) and left and right splash guards (47733 and 47734) are available as related accessories.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three compartment pot sink with three 24 x 24 inch bowls, each 14 inches deep
-
Corner drain in each bowl, 1.8 inches (4.6 cm), with drain guards included
-
18-gauge stainless steel sink body with a backsplash returned 2 inches at the top
-
Four 1-1/8 inch faucet holes in the backsplash, in two pairs on 8 inch centers
-
No drain board, for a 77 inch overall width
-
Shipped with its 16-gauge galvanized legs removed for attachment on site
-
Also offered with center drains as item 43787; optional leg brace 21141 and knockdown drain board 21143 available
Resources & Downloads
See all from Omcan
Specifications
| Number of Compartments | 3 |
| Bowl Size | 24 x 24 in (610 x 610 mm) |
| Bowl Depth | 14 in (356 mm) |
| Bowl Radius | 3/4 in |
| Bowl Partition Width | 2 in |
| Drain Location | Corner |
| Drain Size | 1.8 in (4.6 cm) |
| Drain Guards | Included |
| Faucet Holes | 4 |
| Faucet Hole Spacing | 8 in centers, two pairs |
| Faucet Hole Diameter | 1-1/8 in |
| Backsplash Height | 9-3/4 in, deck edge underside to top |
| Deck Edge Depth | 2-1/2 in |
| Drain Board | None |
| Material | 18-gauge stainless steel |
| Legs | 16-gauge galvanized steel |
| Leg Spacing | 67-1/2 x 19-1/2 in |
| Assembly | Shipped with legs removed |
| Overall Width | 77 in (1956 mm) |
| Overall Depth | 29-1/2 in (749 mm) |
| Overall Height | 44 in (1118 mm) |
| Weight | 110 lb (50 kg) |
| Center Drain Version | Item 43787 |
| Optional Leg Brace | Item 21141 |
| Optional Drain Board | Item 21143 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
