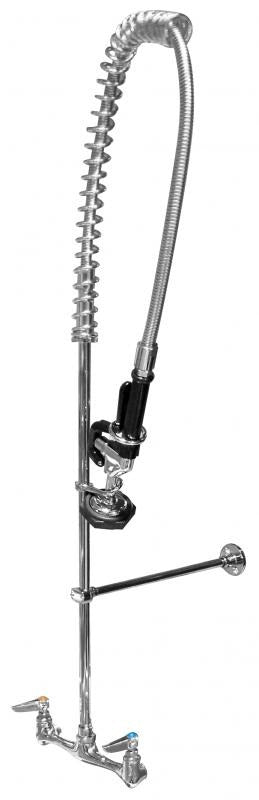

Omcan 22123 Wall Mount Pre-Rinse Assembly, 8 In. Centers, 20 In. Riser, 44 In. Flexible Hose

This Omcan pre-rinse assembly mounts on the wall behind your dish table and rinses food soil off plates, sheet pans, and hotel pans before they go into the dish machine. Hot and cold valves sit on 8 inch centers, a 20 inch brass riser carries the mix upward, and a 44 inch flexible stainless steel hose gives the spray head reach across the sink. Flow is rated at 2 gallons per minute. There is no add-on center faucet on this model, which keeps the body simple for a dedicated pre-rinse station; the same assembly with a 12-1/2 inch center faucet is sold as item 22124. Confirm your hot and cold supply stub-outs land on 8 inch centers before ordering; the wall-mount kit is in the box.

Wall Mount Body on 8 Inch Centers

The mixing valve mounts through the backsplash on 8 inch center supply connections: the pipe nipples pass through the backsplash and a washer and nut snug each one up from behind. The valve body spans 12-3/4 inches across the handles and projects 2-5/8 inches from the wall, so the sink ledge stays clear of hardware. The assembly is built for food service, commercial kitchens, and restaurants.

20 Inch Brass Riser with 44 Inch Flexible Stainless Steel Hose

A 20 inch brass riser bar threads into the mixing valve and lifts the water line above the work zone, and the 44 inch flexible stainless steel hose hangs from the hose retainer at its top, guided through a hose spring, with enough travel to reach across a soiled dish table or a three compartment sink. The assembly stands 38-3/16 inches tall from the valve body, and the spray head hangs 14 inches out from the riser. A spray valve retainer clipped about halfway up the riser holds the spray valve pointed over the sink between racks, and a wall bracket, a base, rod, and clamp, braces the riser just below the hose retainer so the assembly does not work loose over time.

2 GPM Spray Valve with Check Valve Protection

The spray valve delivers 2 gallons per minute to rinse a hotel pan without running the volume of an open faucet. Behind it, a check valve prevents cross-flow in the supply.

Low Lead Construction and Replacement Cartridges

Omcan's low lead faucets contain less than 0.25 percent lead content. The hot and cold valve cartridges swap out individually, item 28680 for the hot side and item 28681 for the cold, so a dripping valve is a cartridge change instead of a whole new assembly, and stocking a spare set means the pre-rinse station never sits down during service.
