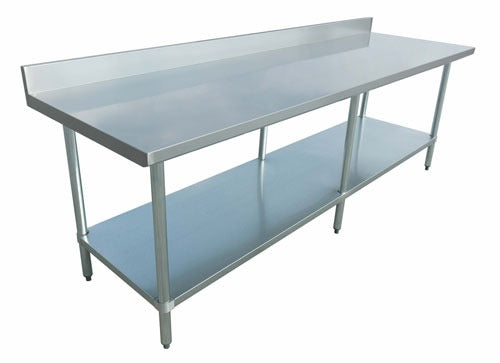

The Omcan 23799 Work Table
This Omcan Elite Series work table puts an 84 by 24 inch 18 gauge 430 stainless steel top with a 4 inch backsplash over a galvanized undershelf, a working surface for prep, portioning and packing against a wall. The top carries an Omcan load rating of 1366.9 lb (620 kg). Omcan lists it at 38 inches high with the backsplash; the same size table without a backsplash, item 20198, is listed at 34 inches. Measure your wall run and aisle clearance against the 84 inch width before ordering. The table ships knocked down: the six legs and the undershelf go together on site with the leg clamps and the eight set screws supplied, so the table is assembled where it will work.
18-Gauge 430 Stainless Steel Top with a 4-Inch Backsplash
The work surface is 18 gauge type 430 stainless steel with a 4 inch (101.6 mm) backsplash along the back edge. Omcan lists the same 84 by 24 inch table without the backsplash as a separate item, 20198. Omcan notes that the table is designed and finished for commercial use and that minor surface marks such as dimples, scratches, scuffs and indents are normal on products of this nature.
Galvanized Undershelf on Rolled Die Cast Leg Clamps
Below the top, a galvanized steel undershelf gives you a second level for storage. The shelf mounts on rolled die cast leg clamps. If the shelf ever needs replacing, the matching 84 by 24 inch galvanized undershelf is available separately as item 17620.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut. Each of the six legs is secured with a single set screw. Omcan's assembly manual has the legs and undershelf assembly inserted into the gussets, the set screws tightened, and the table turned upright and levelled by adjusting the plastic bullet feet; silicone sealer for the set screws is not included. Optional stainless steel bullet feet (item 39313) and adjustable bullet feet with a plastic inside and stainless steel outside (item 23520) are listed separately, as are 5 inch casters with brake (item 14395) and without brake (item 47599), a galvanized leg brace for the 24 by 84 inch table (item 39033) and a drawer for 24 inch work tables (item 24578).
Size and Load Rating
The 24 inch depth is the slimmer of the two depths Omcan offers in the Elite Series, which runs in 24 and 30 inch depths and in widths from 24 to 96 inches. Omcan's load capacity for this 84 inch table on six legs is 1366.9 lb (620 kg), and the listed net weight is 95.7 lb (43.4 kg).
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Elite Series work table with a 24 by 84 inch top in 18 gauge type 430 stainless steel and a 4 inch backsplash along the back edge, one size in a series that runs 24 to 96 inches wide in 24 and 30 inch depths
-
Galvanized undershelf below the top, mounted on rolled die cast leg clamps
-
Support channels secured with a bolt and acorn style nut
-
Six legs, each secured by a single set screw, on plastic bullet feet that adjust to level the table
-
Ships knocked down with eight set screws; legs, undershelf and top are assembled on site, and silicone sealer for the set screws is not included
-
The same 24 by 84 inch table without the backsplash is a separate item, 20198
-
Replacement 24 by 84 inch galvanized undershelf is item 17620; stainless steel bullet feet (39313), 5 inch casters (14395, 47599), a leg brace (39033) and a drawer (24578) are listed as separate accessories
-
Designed and finished for commercial use; Omcan notes that minor surface marks such as dimples, scratches and scuffs are normal
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Elite Series work table with a 24 by 84 inch top in 18 gauge type 430 stainless steel and a 4 inch backsplash along the back edge, one size in a series that runs 24 to 96 inches wide in 24 and 30 inch depths
Galvanized undershelf below the top, mounted on rolled die cast leg clamps
Support channels secured with a bolt and acorn style nut
Six legs, each secured by a single set screw, on plastic bullet feet that adjust to level the table
Ships knocked down with eight set screws; legs, undershelf and top are assembled on site, and silicone sealer for the set screws is not included
The Omcan 23799 Work Table
This Omcan Elite Series work table puts an 84 by 24 inch 18 gauge 430 stainless steel top with a 4 inch backsplash over a galvanized undershelf, a working surface for prep, portioning and packing against a wall. The top carries an Omcan load rating of 1366.9 lb (620 kg). Omcan lists it at 38 inches high with the backsplash; the same size table without a backsplash, item 20198, is listed at 34 inches. Measure your wall run and aisle clearance against the 84 inch width before ordering. The table ships knocked down: the six legs and the undershelf go together on site with the leg clamps and the eight set screws supplied, so the table is assembled where it will work.
18-Gauge 430 Stainless Steel Top with a 4-Inch Backsplash
The work surface is 18 gauge type 430 stainless steel with a 4 inch (101.6 mm) backsplash along the back edge. Omcan lists the same 84 by 24 inch table without the backsplash as a separate item, 20198. Omcan notes that the table is designed and finished for commercial use and that minor surface marks such as dimples, scratches, scuffs and indents are normal on products of this nature.
Galvanized Undershelf on Rolled Die Cast Leg Clamps
Below the top, a galvanized steel undershelf gives you a second level for storage. The shelf mounts on rolled die cast leg clamps. If the shelf ever needs replacing, the matching 84 by 24 inch galvanized undershelf is available separately as item 17620.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut. Each of the six legs is secured with a single set screw. Omcan's assembly manual has the legs and undershelf assembly inserted into the gussets, the set screws tightened, and the table turned upright and levelled by adjusting the plastic bullet feet; silicone sealer for the set screws is not included. Optional stainless steel bullet feet (item 39313) and adjustable bullet feet with a plastic inside and stainless steel outside (item 23520) are listed separately, as are 5 inch casters with brake (item 14395) and without brake (item 47599), a galvanized leg brace for the 24 by 84 inch table (item 39033) and a drawer for 24 inch work tables (item 24578).
Size and Load Rating
The 24 inch depth is the slimmer of the two depths Omcan offers in the Elite Series, which runs in 24 and 30 inch depths and in widths from 24 to 96 inches. Omcan's load capacity for this 84 inch table on six legs is 1366.9 lb (620 kg), and the listed net weight is 95.7 lb (43.4 kg).
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Elite Series work table with a 24 by 84 inch top in 18 gauge type 430 stainless steel and a 4 inch backsplash along the back edge, one size in a series that runs 24 to 96 inches wide in 24 and 30 inch depths
-
Galvanized undershelf below the top, mounted on rolled die cast leg clamps
-
Support channels secured with a bolt and acorn style nut
-
Six legs, each secured by a single set screw, on plastic bullet feet that adjust to level the table
-
Ships knocked down with eight set screws; legs, undershelf and top are assembled on site, and silicone sealer for the set screws is not included
-
The same 24 by 84 inch table without the backsplash is a separate item, 20198
-
Replacement 24 by 84 inch galvanized undershelf is item 17620; stainless steel bullet feet (39313), 5 inch casters (14395, 47599), a leg brace (39033) and a drawer (24578) are listed as separate accessories
-
Designed and finished for commercial use; Omcan notes that minor surface marks such as dimples, scratches and scuffs are normal
Resources & Downloads
See all from Omcan
Specifications
| Top Size | 24 x 84 in |
| Overall Width | 84 in |
| Overall Depth | 24 in |
| Overall Height | 38 in |
| Backsplash Height | 4 in / 101.6 mm |
| Top Material | 430 stainless steel |
| Top Gauge | 18 gauge |
| Load Capacity | 1366.9 lb / 620 kg |
| Net Weight | 95.7 lb / 43.4 kg |
| Undershelf | Galvanized steel |
| Undershelf Mounting | Rolled die cast leg clamps |
| Support Channel Fastening | Bolt and acorn style nut |
| Number of Legs | 6 |
| Leg Attachment | Single set screw |
| Feet | Plastic bullet, adjustable |
| Assembly | Knocked down, assembly required |
| Included Hardware | 8 set screws |
| Replacement Undershelf | Item 17620 |
| Flat-Top Version | Item 20198 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
