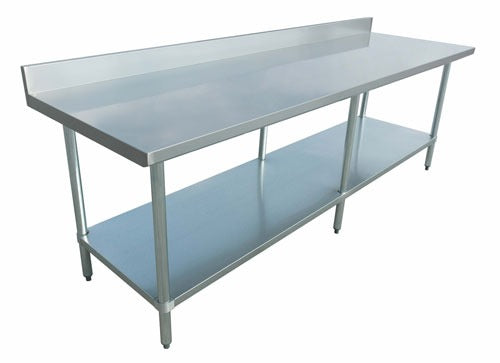

The Omcan 23807 Work Table
This Omcan Elite Series work table puts a 30 by 96 inch 18-gauge 430 stainless steel top with a 4 inch backsplash over a galvanized undershelf, a 30 inch deep, 96 inch wide prep station that sits against a wall. The top is rated for a 1554.3 pound (705 kg) load, the table stands 38 inches (965 mm) overall with the backsplash, and it weighs 121.3 pounds (55 kg) net, so measure your wall run against the 96 inch width before ordering. The table ships unassembled: the six legs seat in their leg clamps and are held with set screws, and the legs and undershelf fit into gussets under the top, so plan for assembly on site.
18-Gauge 430 Stainless Steel Top with a 4-Inch Backsplash
The work surface is 18-gauge type 430 stainless steel. The 4 inch (101.6 mm) backsplash rises off the back edge of the top, which is why this version belongs against a wall; Omcan lists the same 30 by 96 inch Elite Series size without a backsplash separately as item 18855. The top arrives under a protective plastic film that comes off once the table is assembled and leveled.
Galvanized Undershelf on Rolled Die Cast Leg Clamps
Below the top, a galvanized steel undershelf adds a second level of storage. The shelf mounts to the legs on rolled die cast leg clamps. If the shelf ever needs replacing, a matching 30 by 96 inch galvanized undershelf is available separately under item 17628.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut. Each of the six legs is held by a single set screw; installations that must meet sanitation certification require those set screws to be filled with an approved silicone sealer, which is not included. Plastic bullet feet on the legs adjust to level the table on an uneven floor. Optional stainless steel bullet feet, item 39313, and a plastic-in-stainless combination foot, item 23520, are available separately, along with a galvanized leg brace, item 39388, a drawer for 30 inch work tables, item 24579, and 5 inch casters with or without a brake, items 14395 and 47599.
1554-Pound Load Rating Across 96 Inches
Omcan rates the 30 by 96 inch (762 x 2438 mm) top for a 1554.3 pound (705 kg) load on six legs. The table stands 38 inches (965 mm) overall including the 4 inch backsplash and weighs 121.3 pounds (55 kg) net.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Elite Series work table with a 30 by 96 inch top and a 4 inch backsplash for a wall run
-
18-gauge 430 stainless steel top
-
Galvanized undershelf adds a second level of storage below the top
-
Rolled die cast leg clamps carry the undershelf on the legs
-
Support channels under the top secured with a bolt and acorn style nut
-
Six legs, each held by a single set screw
-
Plastic bullet feet adjust to level the table on an uneven floor
-
Ships unassembled; legs, undershelf and top go together with the included set screws
-
Replacement undershelf 17628, leg brace 39388, drawer 24579, 5 inch casters and stainless steel bullet feet listed as separate accessories
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Elite Series work table with a 30 by 96 inch top and a 4 inch backsplash for a wall run
18-gauge 430 stainless steel top
Galvanized undershelf adds a second level of storage below the top
Rolled die cast leg clamps carry the undershelf on the legs
Support channels under the top secured with a bolt and acorn style nut
The Omcan 23807 Work Table
This Omcan Elite Series work table puts a 30 by 96 inch 18-gauge 430 stainless steel top with a 4 inch backsplash over a galvanized undershelf, a 30 inch deep, 96 inch wide prep station that sits against a wall. The top is rated for a 1554.3 pound (705 kg) load, the table stands 38 inches (965 mm) overall with the backsplash, and it weighs 121.3 pounds (55 kg) net, so measure your wall run against the 96 inch width before ordering. The table ships unassembled: the six legs seat in their leg clamps and are held with set screws, and the legs and undershelf fit into gussets under the top, so plan for assembly on site.
18-Gauge 430 Stainless Steel Top with a 4-Inch Backsplash
The work surface is 18-gauge type 430 stainless steel. The 4 inch (101.6 mm) backsplash rises off the back edge of the top, which is why this version belongs against a wall; Omcan lists the same 30 by 96 inch Elite Series size without a backsplash separately as item 18855. The top arrives under a protective plastic film that comes off once the table is assembled and leveled.
Galvanized Undershelf on Rolled Die Cast Leg Clamps
Below the top, a galvanized steel undershelf adds a second level of storage. The shelf mounts to the legs on rolled die cast leg clamps. If the shelf ever needs replacing, a matching 30 by 96 inch galvanized undershelf is available separately under item 17628.
Bolted Support Channels and Set Screw Legs
The support channels under the top are secured with a bolt and acorn style nut. Each of the six legs is held by a single set screw; installations that must meet sanitation certification require those set screws to be filled with an approved silicone sealer, which is not included. Plastic bullet feet on the legs adjust to level the table on an uneven floor. Optional stainless steel bullet feet, item 39313, and a plastic-in-stainless combination foot, item 23520, are available separately, along with a galvanized leg brace, item 39388, a drawer for 30 inch work tables, item 24579, and 5 inch casters with or without a brake, items 14395 and 47599.
1554-Pound Load Rating Across 96 Inches
Omcan rates the 30 by 96 inch (762 x 2438 mm) top for a 1554.3 pound (705 kg) load on six legs. The table stands 38 inches (965 mm) overall including the 4 inch backsplash and weighs 121.3 pounds (55 kg) net.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Elite Series work table with a 30 by 96 inch top and a 4 inch backsplash for a wall run
-
18-gauge 430 stainless steel top
-
Galvanized undershelf adds a second level of storage below the top
-
Rolled die cast leg clamps carry the undershelf on the legs
-
Support channels under the top secured with a bolt and acorn style nut
-
Six legs, each held by a single set screw
-
Plastic bullet feet adjust to level the table on an uneven floor
-
Ships unassembled; legs, undershelf and top go together with the included set screws
-
Replacement undershelf 17628, leg brace 39388, drawer 24579, 5 inch casters and stainless steel bullet feet listed as separate accessories
Resources & Downloads
See all from Omcan
Specifications
| Top Size | 30 x 96 in |
| Overall Width | 96 in |
| Overall Depth | 30 in |
| Overall Height | 38 in |
| Backsplash Height | 4 in |
| Top Dimensions (Metric) | 762 x 2438 mm |
| Overall Height (Metric) | 965 mm |
| Top Material | 430 stainless steel |
| Top Gauge | 18 gauge |
| Load Capacity | 1554.3 lb / 705 kg |
| Net Weight | 121.3 lb / 55 kg |
| Undershelf | Galvanized steel |
| Undershelf Mounting | Rolled die cast leg clamps |
| Support Channel Fastening | Bolt and acorn nut |
| Number of Legs | 6 |
| Leg Attachment | Single set screw |
| Feet | Plastic bullet |
| Assembly | Required, ships unassembled |
| Replacement Undershelf | Item 17628 |
| Optional Leg Brace | Item 39388 |
| Optional Drawer | Item 24579 |
| Optional Casters | Items 47599, 14395 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
