Omcan 23833 10-Slide Stainless Steel Bun Pan Rack, 6 In. Spacing, Square Top, Knockdown

SKU23833 BrandOmcan

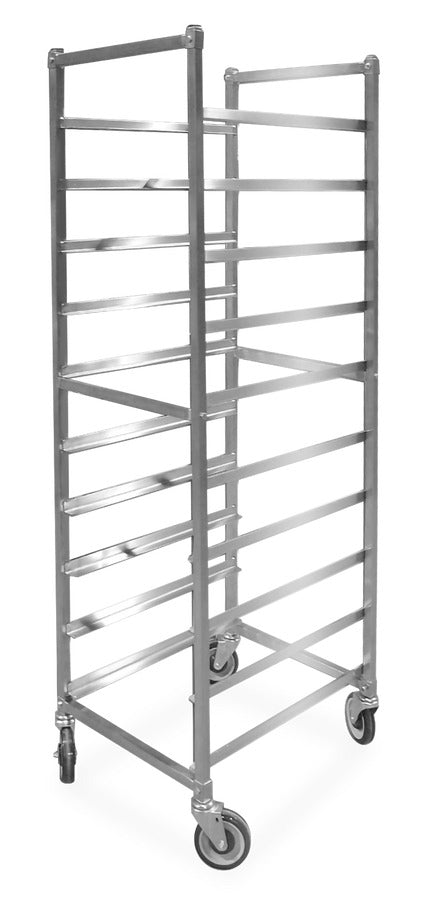

The Omcan 23833 Bun pan rack

This Omcan stainless steel bun pan rack carries pans on ten welded angle slides set 6 inches apart. It stands 71 inches tall on a 26-3/4 x 21-1/4 inch footprint and rolls on 5 inch heavy-duty casters. It is a heavy duty knock down rack: it ships as a kit, assembly is required, and pan trays are not included.

Ten Welded Angle Slides on 6-Inch Spacing

The slides are angle rails welded to the two side frames, ten per side, spaced 6 inches (152 mm) apart. The rack is rated for 54 lb (24.5 kg) per shelf and 770 lb (350 kg) total load.

Heavy-Duty Stainless Steel Frame

Omcan's pan racks are heavy duty, in stainless steel or aluminum, with welded angle slides; this model is the stainless steel square top version. On the knock down frame, the two slide frames are joined by three Z mounting brackets with M8 and M10 hex bolts, U washers, and nuts that ship with the rack.

Square Top, 71 Inches Tall

The frame has a square top and measures 26-3/4 x 21-1/4 x 71 inches overall (679.5 x 539.8 x 1803 mm); the rack weighs 44 lb. The same frame size is available with 20 slides on 3 inch spacing as item 23834 (square top) and item 23857 (curved top).

5-Inch Heavy-Duty Casters and Knock Down Assembly

The rack comes complete with 5 inch heavy-duty casters: four swivel casters, two of them with brakes, which fit into the bottom ends of the side frames. Assembly takes four steps: bolt the Z mounting brackets to one side frame, add the second side frame, fit the casters and the bottom bracket, then stand the rack up and tighten all bolts. A clear nylon rack cover (item 18633) and a PVC rubber net cover (item 41910) are available as pan rack covers.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Stainless steel bun pan rack with ten welded angle slides on 6 inch spacing
Heavy duty knock down frame: two side frames joined by three Z mounting brackets
Four 5 inch heavy-duty swivel casters, two with brakes
Square top frame, 71 inches tall
Assembly hardware (M8 and M10 hex bolts, U washers, and nuts) packed with the rack
Ships as a knock down kit with assembly required; pan trays are not included
Clear nylon rack cover (item 18633) and PVC rubber net cover (item 41910) available as optional covers

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$551.14

Stainless steel bun pan rack with ten welded angle slides on 6 inch spacing

Heavy duty knock down frame: two side frames joined by three Z mounting brackets

Four 5 inch heavy-duty swivel casters, two with brakes

Square top frame, 71 inches tall

Assembly hardware (M8 and M10 hex bolts, U washers, and nuts) packed with the rack

See full feature list

The Omcan 23833 Bun pan rack

This Omcan stainless steel bun pan rack carries pans on ten welded angle slides set 6 inches apart. It stands 71 inches tall on a 26-3/4 x 21-1/4 inch footprint and rolls on 5 inch heavy-duty casters. It is a heavy duty knock down rack: it ships as a kit, assembly is required, and pan trays are not included.

Ten Welded Angle Slides on 6-Inch Spacing

The slides are angle rails welded to the two side frames, ten per side, spaced 6 inches (152 mm) apart. The rack is rated for 54 lb (24.5 kg) per shelf and 770 lb (350 kg) total load.

Heavy-Duty Stainless Steel Frame

Omcan's pan racks are heavy duty, in stainless steel or aluminum, with welded angle slides; this model is the stainless steel square top version. On the knock down frame, the two slide frames are joined by three Z mounting brackets with M8 and M10 hex bolts, U washers, and nuts that ship with the rack.

Square Top, 71 Inches Tall

The frame has a square top and measures 26-3/4 x 21-1/4 x 71 inches overall (679.5 x 539.8 x 1803 mm); the rack weighs 44 lb. The same frame size is available with 20 slides on 3 inch spacing as item 23834 (square top) and item 23857 (curved top).

5-Inch Heavy-Duty Casters and Knock Down Assembly

The rack comes complete with 5 inch heavy-duty casters: four swivel casters, two of them with brakes, which fit into the bottom ends of the side frames. Assembly takes four steps: bolt the Z mounting brackets to one side frame, add the second side frame, fit the casters and the bottom bracket, then stand the rack up and tighten all bolts. A clear nylon rack cover (item 18633) and a PVC rubber net cover (item 41910) are available as pan rack covers.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Stainless steel bun pan rack with ten welded angle slides on 6 inch spacing
Heavy duty knock down frame: two side frames joined by three Z mounting brackets
Four 5 inch heavy-duty swivel casters, two with brakes
Square top frame, 71 inches tall
Assembly hardware (M8 and M10 hex bolts, U washers, and nuts) packed with the rack
Ships as a knock down kit with assembly required; pan trays are not included
Clear nylon rack cover (item 18633) and PVC rubber net cover (item 41910) available as optional covers

Resources & Downloads

Omcan 23833 Specsheet

See all from Omcan

Specifications

Number of Slides	10
Slide Spacing	6 in (152 mm)
Slide Type	Welded angle
Top Style	Square
Material	Stainless steel
Maximum Capacity per Shelf	54 lb (24.5 kg)
Total Load Capacity	770 lb (350 kg)
Casters	5 in heavy-duty, 4 swivel (2 with brake)
Overall Dimensions	26-3/4 x 21-1/4 x 71 in
Weight	44 lb (20 kg)
Assembly	Knock down, assembly required
Pan Trays	Not included
Optional Covers	Nylon (item 18633), PVC net (item 41910)

Manufacturer's Warranty

6 Month

Warranty
