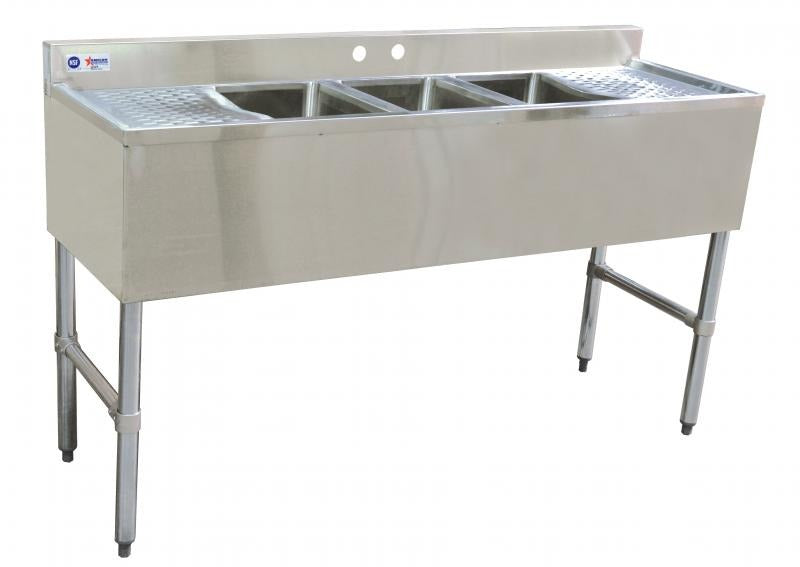

The Omcan 25274 3 Bowl Underbar Sink
This Omcan underbar sink puts a three compartment wash, rinse and sanitize setup under the bar top for glassware. Each of the three bowls measures 10 by 14 inches and runs 10 inches deep, and a 13 inch drain board on each side of the bowls gives wet glassware a place to drip. The whole unit is 60 inches wide and 18-3/4 inches deep, with a 34 inch work surface height and a 3 inch backsplash. It comes with the legs removed, and they attach on site.
Three 10 by 14 Inch Bowls for Wash, Rinse, and Sanitize
The three compartments are laid out for washing, rinsing and sanitizing glassware. Each bowl is 10 inches wide, 14 inches front to back and 10 inches deep, with a 1-1/2 inch diameter drain opening, and the bowls sit 2 inches apart.
Drain Boards on Both Sides of the Bowls
Two 13 inch drain boards flank the bowls, one on the left and one on the right. Corner drain guards come with the sink; they are perforated baskets that sit in the bowl corners over the drains.
18-Gauge Type 304 Stainless Steel Construction
The top, bowls and back are formed from 18-gauge type 304 stainless steel, and the apron is 20-gauge type 304 stainless steel. A 3 inch backsplash rises behind the work surface.
Faucet Holes on 4 Inch Centers
Two 1 inch diameter faucet holes are punched in the backsplash on 4 inch centers. Omcan lists its 12 inch spout bar sink faucet, item 26085, as the related accessory for this sink.
Legs Attach on Site
The sink is supplied with its four legs removed, and they attach on site. A cross brace joins the two legs at each end. Leg spread runs 57-11/16 inches across the front and 16-3/16 inches front to back. The same sink family is offered in one, three and four compartment versions, with no drain boards or with 13 or 19 inch drain boards; this is the three compartment model with 13 inch drain boards.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three compartment underbar sink for washing, rinsing and sanitizing glassware behind the bar
-
Three 10 by 14 inch bowls, each 10 inches deep, set 2 inches apart
-
13 inch drain boards on both the left and the right of the bowls
-
Corner drain guards included with the sink
-
18-gauge type 304 stainless steel top, bowls and back with a 20-gauge type 304 apron
-
3 inch backsplash carries two 1 inch faucet holes on 4 inch centers
-
Omcan's 12 inch spout bar sink faucet, item 26085, is the listed related accessory
-
Supplied with the legs removed for attachment on site
-
Family also offered in one and four compartment versions and with no drain boards or 19 inch drain boards
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Three compartment underbar sink for washing, rinsing and sanitizing glassware behind the bar
Three 10 by 14 inch bowls, each 10 inches deep, set 2 inches apart
13 inch drain boards on both the left and the right of the bowls
Corner drain guards included with the sink
18-gauge type 304 stainless steel top, bowls and back with a 20-gauge type 304 apron
The Omcan 25274 3 Bowl Underbar Sink
This Omcan underbar sink puts a three compartment wash, rinse and sanitize setup under the bar top for glassware. Each of the three bowls measures 10 by 14 inches and runs 10 inches deep, and a 13 inch drain board on each side of the bowls gives wet glassware a place to drip. The whole unit is 60 inches wide and 18-3/4 inches deep, with a 34 inch work surface height and a 3 inch backsplash. It comes with the legs removed, and they attach on site.
Three 10 by 14 Inch Bowls for Wash, Rinse, and Sanitize
The three compartments are laid out for washing, rinsing and sanitizing glassware. Each bowl is 10 inches wide, 14 inches front to back and 10 inches deep, with a 1-1/2 inch diameter drain opening, and the bowls sit 2 inches apart.
Drain Boards on Both Sides of the Bowls
Two 13 inch drain boards flank the bowls, one on the left and one on the right. Corner drain guards come with the sink; they are perforated baskets that sit in the bowl corners over the drains.
18-Gauge Type 304 Stainless Steel Construction
The top, bowls and back are formed from 18-gauge type 304 stainless steel, and the apron is 20-gauge type 304 stainless steel. A 3 inch backsplash rises behind the work surface.
Faucet Holes on 4 Inch Centers
Two 1 inch diameter faucet holes are punched in the backsplash on 4 inch centers. Omcan lists its 12 inch spout bar sink faucet, item 26085, as the related accessory for this sink.
Legs Attach on Site
The sink is supplied with its four legs removed, and they attach on site. A cross brace joins the two legs at each end. Leg spread runs 57-11/16 inches across the front and 16-3/16 inches front to back. The same sink family is offered in one, three and four compartment versions, with no drain boards or with 13 or 19 inch drain boards; this is the three compartment model with 13 inch drain boards.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three compartment underbar sink for washing, rinsing and sanitizing glassware behind the bar
-
Three 10 by 14 inch bowls, each 10 inches deep, set 2 inches apart
-
13 inch drain boards on both the left and the right of the bowls
-
Corner drain guards included with the sink
-
18-gauge type 304 stainless steel top, bowls and back with a 20-gauge type 304 apron
-
3 inch backsplash carries two 1 inch faucet holes on 4 inch centers
-
Omcan's 12 inch spout bar sink faucet, item 26085, is the listed related accessory
-
Supplied with the legs removed for attachment on site
-
Family also offered in one and four compartment versions and with no drain boards or 19 inch drain boards
Resources & Downloads
See all from Omcan
Specifications
| Number of Compartments | 3 |
| Bowl Size | 10 x 14 in |
| Bowl Depth | 10 in |
| Bowl Spacing | 2 in |
| Drain Opening | 1-1/2 in diameter |
| Drain Guards | Corner drain guards included |
| Drain Boards | 2 |
| Drain Board Width | 13 in each |
| Backsplash Height | 3 in |
| Faucet Holes | 2 |
| Faucet Hole Diameter | 1 in |
| Faucet Hole Spacing | 4 in centers |
| Related Faucet | Omcan 26085, 12 in spout |
| Top, Bowl and Back Material | 18-gauge type 304 stainless steel |
| Apron Material | 20-gauge type 304 stainless steel |
| Legs | 4, detachable |
| Assembly | Legs attach on site |
| Work Surface Height | 34 in |
| Overall Width | 60 in |
| Overall Depth | 18-3/4 in |
| Overall Height | 37 in |
| Front Leg Spread | 57-11/16 in |
| Side Leg Spread | 16-3/16 in |
| Weight | 77 lb |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
