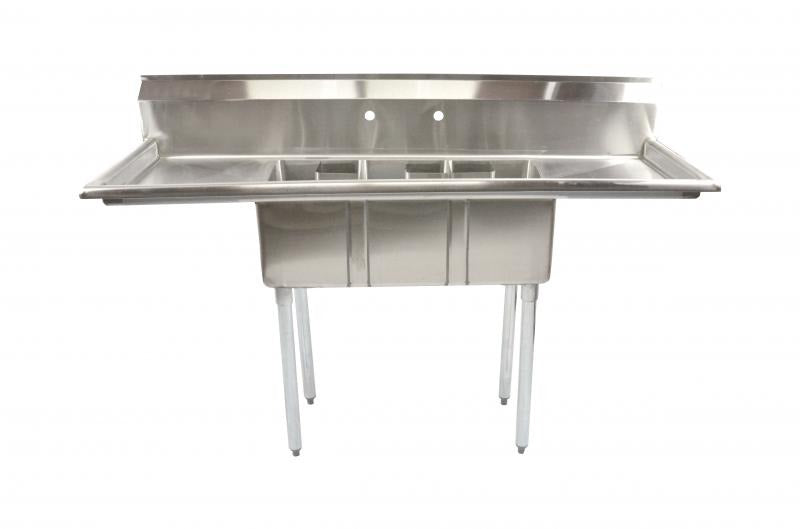

The Omcan 39764 3 Compartment Sink
This Omcan space saver three compartment sink puts three 10 x 14 inch bowls, each 10 inches deep, on a compact 18-gauge type 304 stainless steel top, giving a small operation separate compartments for washing, rinsing and sanitizing. A 16 inch drain board sits at each end of the bowls, and the whole unit runs 62 inches wide by 19-1/2 inches deep. Each bowl has a corner drain with a drain guard, and the sink ships with the legs removed for attachment on site.
Three 10 by 14 Inch Bowls with Corner Drains
Each bowl is 10 inches wide, 14 inches front to back and 10 inches deep, with 3/4 inch radius corners, and the bowls are separated by 2 inch partitions. The drain sits in a corner of each bowl: a 1-1/2 inch drain with a 1-7/8 inch opening, a drain guard and an 8 inch overflow pipe.
18-Gauge Type 304 Stainless Steel Construction
The top, bowls and backsplash are 18-gauge type 304 stainless steel. The backsplash rises 9-3/4 inches with a 2 inch return along its top edge, and two 1-1/8 inch faucet holes are punched in it on 8 inch centers. A splash mounted faucet with a 10 inch spout is listed for this sink as item 39256, and pre-rinse assemblies as items 22123 and 22124.
16 Inch Drain Boards on Both Ends
A 16 inch drain board extends from each end of the three bowls, bringing the overall width to 62 inches on a 19-1/2 inch deep top. The same sink is also offered with no drain board (item 39761), a 16 inch left drain board (item 39762) or a 16 inch right drain board (item 39763).
Legs Shipped Removed
The sink stands 43.8 inches tall with the top at 39 inches. It ships with the legs removed; the 16-gauge galvanized legs slide into sockets under the sink and are fixed with set screws, and they end in plastic bullet feet. The legs stand 25-1/2 inches apart side to side and 9-1/2 inches front to back under the bowls.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three 10 x 14 x 10 inch bowls give separate compartments for washing, rinsing and sanitizing
-
Corner drain in each bowl, with drain guard and 8 inch overflow pipe
-
Two 1-1/8 inch faucet holes on 8 inch centers in the 9-3/4 inch backsplash
-
18-gauge type 304 stainless steel top, bowls and backsplash
-
16 inch drain boards on both ends of the bowls
-
Ships with the legs removed; 16-gauge galvanized legs fit sockets under the sink and are fixed with set screws
-
Plastic bullet feet on the legs
-
Splash mounted 10 inch spout faucet (item 39256) and pre-rinse assemblies (items 22123, 22124) are listed for this sink
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Three 10 x 14 x 10 inch bowls give separate compartments for washing, rinsing and sanitizing
Corner drain in each bowl, with drain guard and 8 inch overflow pipe
Two 1-1/8 inch faucet holes on 8 inch centers in the 9-3/4 inch backsplash
18-gauge type 304 stainless steel top, bowls and backsplash
16 inch drain boards on both ends of the bowls
The Omcan 39764 3 Compartment Sink
This Omcan space saver three compartment sink puts three 10 x 14 inch bowls, each 10 inches deep, on a compact 18-gauge type 304 stainless steel top, giving a small operation separate compartments for washing, rinsing and sanitizing. A 16 inch drain board sits at each end of the bowls, and the whole unit runs 62 inches wide by 19-1/2 inches deep. Each bowl has a corner drain with a drain guard, and the sink ships with the legs removed for attachment on site.
Three 10 by 14 Inch Bowls with Corner Drains
Each bowl is 10 inches wide, 14 inches front to back and 10 inches deep, with 3/4 inch radius corners, and the bowls are separated by 2 inch partitions. The drain sits in a corner of each bowl: a 1-1/2 inch drain with a 1-7/8 inch opening, a drain guard and an 8 inch overflow pipe.
18-Gauge Type 304 Stainless Steel Construction
The top, bowls and backsplash are 18-gauge type 304 stainless steel. The backsplash rises 9-3/4 inches with a 2 inch return along its top edge, and two 1-1/8 inch faucet holes are punched in it on 8 inch centers. A splash mounted faucet with a 10 inch spout is listed for this sink as item 39256, and pre-rinse assemblies as items 22123 and 22124.
16 Inch Drain Boards on Both Ends
A 16 inch drain board extends from each end of the three bowls, bringing the overall width to 62 inches on a 19-1/2 inch deep top. The same sink is also offered with no drain board (item 39761), a 16 inch left drain board (item 39762) or a 16 inch right drain board (item 39763).
Legs Shipped Removed
The sink stands 43.8 inches tall with the top at 39 inches. It ships with the legs removed; the 16-gauge galvanized legs slide into sockets under the sink and are fixed with set screws, and they end in plastic bullet feet. The legs stand 25-1/2 inches apart side to side and 9-1/2 inches front to back under the bowls.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Three 10 x 14 x 10 inch bowls give separate compartments for washing, rinsing and sanitizing
-
Corner drain in each bowl, with drain guard and 8 inch overflow pipe
-
Two 1-1/8 inch faucet holes on 8 inch centers in the 9-3/4 inch backsplash
-
18-gauge type 304 stainless steel top, bowls and backsplash
-
16 inch drain boards on both ends of the bowls
-
Ships with the legs removed; 16-gauge galvanized legs fit sockets under the sink and are fixed with set screws
-
Plastic bullet feet on the legs
-
Splash mounted 10 inch spout faucet (item 39256) and pre-rinse assemblies (items 22123, 22124) are listed for this sink
Resources & Downloads
See all from Omcan
Specifications
| Number of Compartments | 3 |
| Bowl Size | 10 x 14 in |
| Bowl Depth | 10 in |
| Bowl Corner Radius | 3/4 in |
| Partition Between Bowls | 2 in |
| Drain Location | Corner |
| Drain Size | 1-1/2 in |
| Drain Opening Diameter | 1-7/8 in |
| Drain Guards | Included |
| Overflow Pipe | 8 in |
| Faucet Hole Spacing | 8 in centers |
| Faucet Hole Diameter | 1-1/8 in |
| Backsplash Height | 9-3/4 in |
| Backsplash Top Return | 2 in |
| Drain Board | Left and right, 16 in each |
| Material | 18-gauge type 304 stainless steel |
| Legs | 16-gauge galvanized, socket mount |
| Feet | Plastic bullet feet |
| Assembly | Shipped with legs removed |
| Leg Spacing | 25-1/2 x 9-1/2 in |
| Overall Width | 62 in |
| Overall Depth | 19-1/2 in |
| Height to Top | 39 in |
| Overall Height | 43.8 in |
| Compatible Faucet | Item 39256 |
| Compatible Pre-Rinse Assemblies | Items 22123, 22124 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
