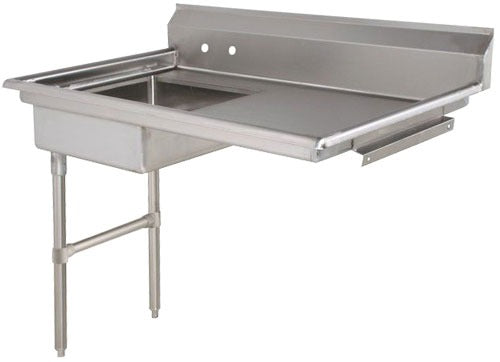

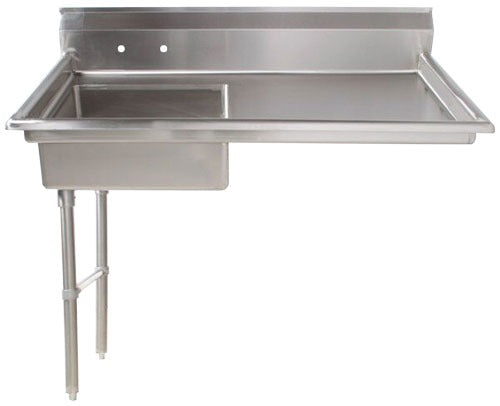

The Omcan 40189 Soiled Dish Table
This Omcan under counter soiled dishtable gives you a place to scrape and rinse dishes before they go into the dish machine. The polished stainless steel top carries a built-in 20 by 20 inch sink, and the top measures 48 inches long by 30 inches deep, with the unit 50 inches wide overall. Overall height is 44 inches including the backsplash. This is the left side version, with the sink at the left; the right side version is item 40190. Measure the wall run on the soiled side of your machine and confirm the 30 inch depth clears your aisle.

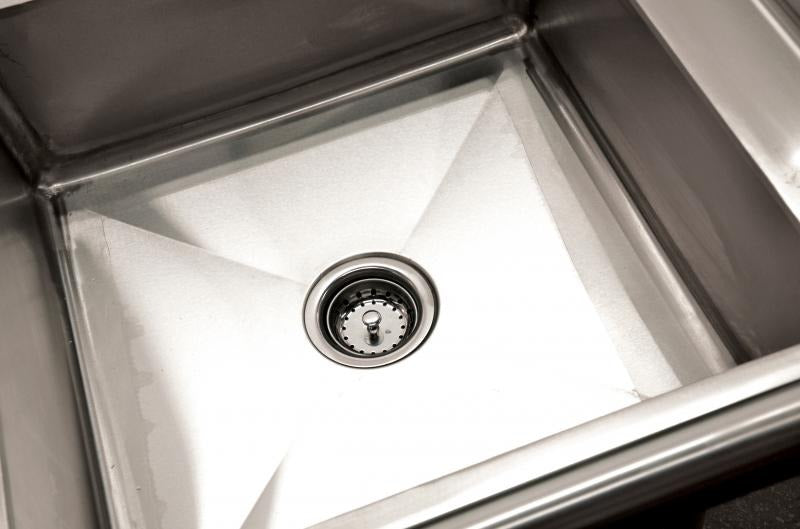

20 by 20 Inch Sink Bowl, 8 Inches Deep
The bowl is 20 by 20 inches and 8 inches deep with a 3-1/2 inch diameter drain in the center. Two 1-1/8 inch faucet holes are punched in the backsplash on 8 inch centers, 5 inches below the top edge of the splash, with the first hole 9-1/2 inches in from the left end of the top.
18-Gauge Type 304 Polished Stainless Steel
The table is made of polished 18-gauge 304 stainless steel. The unit is finished for commercial use, so minor surface marks such as dimples, scratches and scuffs are normal on this product.
8-Inch Backsplash with a 2-Inch Return at 45 Degrees
The 8 inch backsplash has a 2 inch return bent at a 45 degree angle to minimize spills and splashes. It measures 10 inches from the top of the splash to the underside of the front apron, with 34 inches from the floor to that underside, for 44 inches overall.
26-Inch Bullet-Foot Legs with Cross Bracing
The table comes with 26 inch stainless steel legs with bullet feet and cross bracing. The legs are 15-1/2 inches apart front to back and set in 2-1/4 inches from the bowl wall. The parts supplied are two legs, two leg sockets, a cross bar, eight set screws and the drain, so the legs and brace assemble on site.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Under counter soiled dishtable with a built-in 20 x 20 inch sink bowl, 8 inches deep, and a 48 inch polished top
-
3-1/2 inch diameter drain in the center of the bowl
-
Two faucet holes on 8 inch centers in the backsplash
-
8 inch backsplash with a 2 inch return at a 45 degree angle to minimize spills and splashes
-
26 inch stainless steel legs with bullet feet and cross bracing
-
Legs, cross bar and drain assemble on site with the included set screws
-
Left side version with the sink at the left; item 40190 is the right side version
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Under counter soiled dishtable with a built-in 20 x 20 inch sink bowl, 8 inches deep, and a 48 inch polished top
3-1/2 inch diameter drain in the center of the bowl
Two faucet holes on 8 inch centers in the backsplash
8 inch backsplash with a 2 inch return at a 45 degree angle to minimize spills and splashes
26 inch stainless steel legs with bullet feet and cross bracing
The Omcan 40189 Soiled Dish Table
This Omcan under counter soiled dishtable gives you a place to scrape and rinse dishes before they go into the dish machine. The polished stainless steel top carries a built-in 20 by 20 inch sink, and the top measures 48 inches long by 30 inches deep, with the unit 50 inches wide overall. Overall height is 44 inches including the backsplash. This is the left side version, with the sink at the left; the right side version is item 40190. Measure the wall run on the soiled side of your machine and confirm the 30 inch depth clears your aisle.
20 by 20 Inch Sink Bowl, 8 Inches Deep
The bowl is 20 by 20 inches and 8 inches deep with a 3-1/2 inch diameter drain in the center. Two 1-1/8 inch faucet holes are punched in the backsplash on 8 inch centers, 5 inches below the top edge of the splash, with the first hole 9-1/2 inches in from the left end of the top.
18-Gauge Type 304 Polished Stainless Steel
The table is made of polished 18-gauge 304 stainless steel. The unit is finished for commercial use, so minor surface marks such as dimples, scratches and scuffs are normal on this product.
8-Inch Backsplash with a 2-Inch Return at 45 Degrees
The 8 inch backsplash has a 2 inch return bent at a 45 degree angle to minimize spills and splashes. It measures 10 inches from the top of the splash to the underside of the front apron, with 34 inches from the floor to that underside, for 44 inches overall.
26-Inch Bullet-Foot Legs with Cross Bracing
The table comes with 26 inch stainless steel legs with bullet feet and cross bracing. The legs are 15-1/2 inches apart front to back and set in 2-1/4 inches from the bowl wall. The parts supplied are two legs, two leg sockets, a cross bar, eight set screws and the drain, so the legs and brace assemble on site.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Under counter soiled dishtable with a built-in 20 x 20 inch sink bowl, 8 inches deep, and a 48 inch polished top
-
3-1/2 inch diameter drain in the center of the bowl
-
Two faucet holes on 8 inch centers in the backsplash
-
8 inch backsplash with a 2 inch return at a 45 degree angle to minimize spills and splashes
-
26 inch stainless steel legs with bullet feet and cross bracing
-
Legs, cross bar and drain assemble on site with the included set screws
-
Left side version with the sink at the left; item 40190 is the right side version
Resources & Downloads
See all from Omcan
Specifications
| Table Type | Under counter soiled dishtable |
| Side | Left (sink at left) |
| Overall Width | 50 in |
| Top Length | 48 in |
| Overall Depth | 30 in |
| Overall Height | 44 in |
| Height to Underside of Top | 34 in |
| Sink Bowl Size | 20 x 20 in |
| Sink Bowl Depth | 8 in |
| Drain Size | 3-1/2 in diameter |
| Drain Location | Center of bowl |
| Faucet Hole Diameter | 1-1/8 in |
| Faucet Hole Spacing | 8 in centers |
| Faucet Hole Position | 5 in below top of backsplash |
| First Faucet Hole from Left End | 9-1/2 in |
| Backsplash Height | 8 in |
| Backsplash Return | 2 in at 45° |
| Material | 18-gauge 304 stainless steel, polished |
| Legs | Stainless steel, 26 in, bullet feet |
| Leg Bracing | Cross bracing |
| Leg Spacing (front to back) | 15-1/2 in |
| Leg Inset from Bowl Wall | 2-1/4 in |
| Assembly | Legs, cross bar and drain attach on site |
| Right Side Version | Item 40190 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
Under counter soiled dishtable with a built-in 20 x 20 inch sink bowl, 8 inches deep, and a 48 inch polished top
