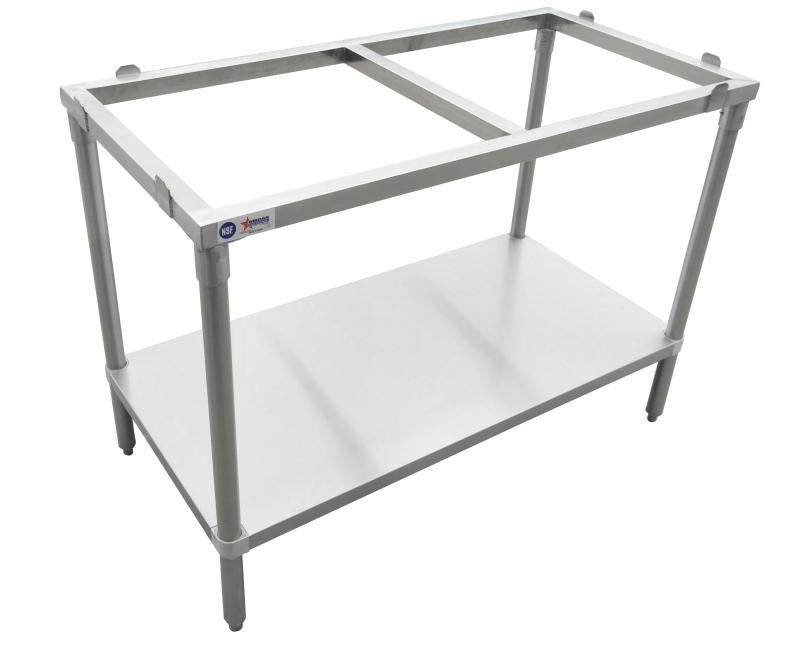

The Omcan 40411 Work Table Frame
This Omcan poly top table frame is the stainless steel half of a 48 by 24 inch poly top table: the tubing frame and its 18 gauge 430 stainless steel undershelf, ready to carry one of Omcan's matching poly boards, which is sold separately. Omcan lists these tables for deli shops, sandwich shops, restaurants, and other commercial kitchens. The frame stands 36 inches high on a 48 x 24 inch footprint, so measure your wall run and aisle clearance. No cutting board is included with this item number: pair it with the matching 24 x 48 inch poly board, item 43185 in 3/4 inch or item 43186 in 1 inch thickness, to complete the table.
Frame and Undershelf Only, Top Sold Separately
Omcan sells its poly top tables as two components, and this item is the base. You get the stainless steel frame and the undershelf; the poly board that completes the table is its own line item. The frame takes either board thickness, 3/4 inch under item 43185 (rated 490 pounds on Omcan's sheet) or 1 inch under item 43186 (540 pounds), both cut to the 24 x 48 inch size this frame is built around.
Stainless Steel Tubing Frame with Sockets and Bullet Feet
The top frame is stainless steel tubing with stainless steel sockets, drawn on Omcan's sheet as 38 x 38 x 1.2 mm square tube, about 1-1/2 inches square. A 1.5 inch wide center bar runs across the frame 23.25 inches from the edge. The legs are stainless steel with stainless steel bullet feet. Per Omcan's manual the table ships as a top frame, an undershelf, and four legs that assemble with the included set screws; the poly board then drops into the frame.
18 Gauge 430 Stainless Steel Undershelf
The lower shelf is 18 gauge 430 stainless steel with aluminum sockets, listed as item 44279. Omcan rates it for 440 lb and describes it as storage for ingredient bins, knives, and other kitchen tools or supplies needed while preparing and cooking.
Rated for 600 Pounds Total Load
Omcan rates the table at 600 pounds of total load capacity. There is no backsplash on this version; Omcan sells the same 48 x 24 inch frame with a 6 inch backsplash as a separate item, and that version takes a shallower board.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Base frame for building a 48 x 24 inch poly top table in a deli, sandwich shop, restaurant, or other commercial kitchen
-
Frame and undershelf only, the poly board top is sold separately
-
Accepts Omcan's matching 24 x 48 inch poly boards, item 43185 in 3/4 inch and item 43186 in 1 inch thickness
-
Stainless steel tubing top frame with stainless steel sockets and a center bar across the middle
-
Stainless steel legs with stainless steel bullet feet
-
18 gauge 430 stainless steel undershelf with aluminum sockets for ingredient bins, knives, and other kitchen tools
-
No backsplash on this version
-
Ships as frame, undershelf, and four legs that assemble with the included set screws
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Base frame for building a 48 x 24 inch poly top table in a deli, sandwich shop, restaurant, or other commercial kitchen
Frame and undershelf only, the poly board top is sold separately
Accepts Omcan's matching 24 x 48 inch poly boards, item 43185 in 3/4 inch and item 43186 in 1 inch thickness
Stainless steel tubing top frame with stainless steel sockets and a center bar across the middle
Stainless steel legs with stainless steel bullet feet
The Omcan 40411 Work Table Frame
This Omcan poly top table frame is the stainless steel half of a 48 by 24 inch poly top table: the tubing frame and its 18 gauge 430 stainless steel undershelf, ready to carry one of Omcan's matching poly boards, which is sold separately. Omcan lists these tables for deli shops, sandwich shops, restaurants, and other commercial kitchens. The frame stands 36 inches high on a 48 x 24 inch footprint, so measure your wall run and aisle clearance. No cutting board is included with this item number: pair it with the matching 24 x 48 inch poly board, item 43185 in 3/4 inch or item 43186 in 1 inch thickness, to complete the table.
Frame and Undershelf Only, Top Sold Separately
Omcan sells its poly top tables as two components, and this item is the base. You get the stainless steel frame and the undershelf; the poly board that completes the table is its own line item. The frame takes either board thickness, 3/4 inch under item 43185 (rated 490 pounds on Omcan's sheet) or 1 inch under item 43186 (540 pounds), both cut to the 24 x 48 inch size this frame is built around.
Stainless Steel Tubing Frame with Sockets and Bullet Feet
The top frame is stainless steel tubing with stainless steel sockets, drawn on Omcan's sheet as 38 x 38 x 1.2 mm square tube, about 1-1/2 inches square. A 1.5 inch wide center bar runs across the frame 23.25 inches from the edge. The legs are stainless steel with stainless steel bullet feet. Per Omcan's manual the table ships as a top frame, an undershelf, and four legs that assemble with the included set screws; the poly board then drops into the frame.
18 Gauge 430 Stainless Steel Undershelf
The lower shelf is 18 gauge 430 stainless steel with aluminum sockets, listed as item 44279. Omcan rates it for 440 lb and describes it as storage for ingredient bins, knives, and other kitchen tools or supplies needed while preparing and cooking.
Rated for 600 Pounds Total Load
Omcan rates the table at 600 pounds of total load capacity. There is no backsplash on this version; Omcan sells the same 48 x 24 inch frame with a 6 inch backsplash as a separate item, and that version takes a shallower board.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Base frame for building a 48 x 24 inch poly top table in a deli, sandwich shop, restaurant, or other commercial kitchen
-
Frame and undershelf only, the poly board top is sold separately
-
Accepts Omcan's matching 24 x 48 inch poly boards, item 43185 in 3/4 inch and item 43186 in 1 inch thickness
-
Stainless steel tubing top frame with stainless steel sockets and a center bar across the middle
-
Stainless steel legs with stainless steel bullet feet
-
18 gauge 430 stainless steel undershelf with aluminum sockets for ingredient bins, knives, and other kitchen tools
-
No backsplash on this version
-
Ships as frame, undershelf, and four legs that assemble with the included set screws
Resources & Downloads
See all from Omcan
Specifications
| Overall Width | 48 in |
| Overall Depth | 24 in |
| Overall Height | 36 in |
| Top Frame | Stainless steel tubing, stainless steel sockets |
| Frame Tubing | 38 x 38 x 1.2 mm (1-1/2 in square) |
| Center Bar | 1.5 in wide, 23.25 in from edge |
| Undershelf | 18 gauge 430 stainless steel, aluminum sockets |
| Undershelf Item No. | 44279 |
| Legs | Stainless steel with stainless steel bullet feet |
| Total Load Capacity | 600 lb |
| Undershelf Capacity | 440 lb (200 kg) |
| Number of Shelves | 1 |
| Backsplash | None |
| Assembly | Frame, undershelf, and legs assemble with set screws |
| Board Included | No, sold separately |
| Required Board Size | 24 x 48 in |
| Compatible Board, 3/4 in Thick | Item 43185, 490 lb capacity |
| Compatible Board, 1 in Thick | Item 43186, 540 lb capacity |
| Weight | 42 lb |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
