Omcan 40644 56 In. Stainless Steel Exhaust Hood for Fuoco Digital Series Double Chamber Pizza Ovens 40641 and 40643

A stainless steel hood for the double chamber Fuoco Digital Series pizza ovens, items 40641 and 40643, sold on its own with no oven included. It is positioned above the oven and fixed to it with screws. At 55.9 in wide, 45 in deep and 11.9 in tall it adds just under a foot above the oven, the number for your ceiling check. It carries an LED light and a push-button control panel and needs a single-phase 230 V, 60 Hz, 10 A socket. The suction motor is not included, so the extractor and flue run are a separate scope for your mechanical contractor.

Fit for Fuoco Digital Ovens 40641 and 40643

Omcan lists this hood as compatible with two ovens, the double chamber Fuoco Digital items 40641 and 40643. It is 1420 mm wide, 1154 mm deep and 301 mm tall. Check your oven's item number against those two before you commit, because the oven itself is not part of this item, and the 31 kg (68.3 lb) net weight is the hood alone, not the hood with the oven.

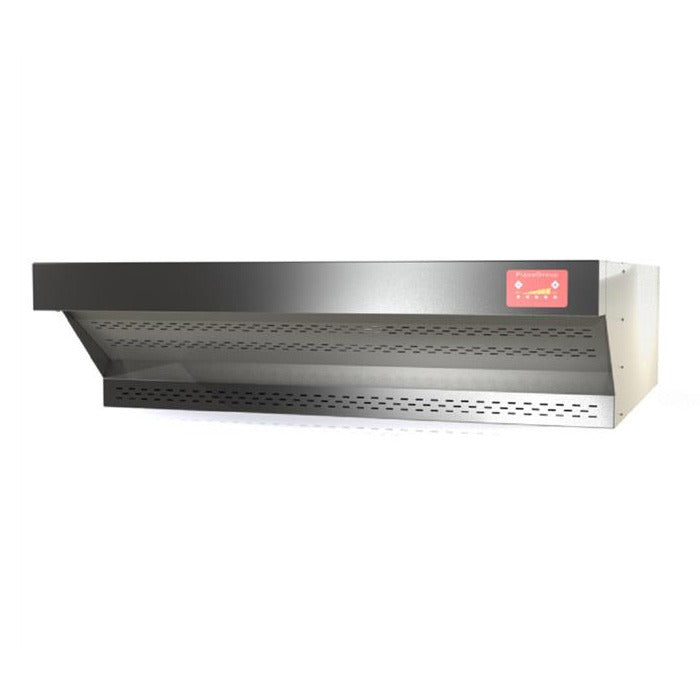

Slotted Front Face and Fume Outlet

Rows of slots run across the front face in two bands. The hood has a fume outlet hole for the flue connection. Keep that outlet clear, because an obstructed outlet hole can overheat the hood, and store nothing on top of the hood for the same reason. The outer hood gets a weekly wipe with a degreasing cleaner, never an abrasive sponge or a pressure washer.

LED Light and Push-Button Control Panel

An LED light bar is fitted in the hood, and a small panel on the front right corner carries plus and minus keys above five LEDs. Hold the plus key to switch the light on or off; there is no separate on/off switch. Once your contractor fits an extractor motor, the same keys start the fan and step the extraction rate one LED at a time, and holding the minus key shuts it off. Without a motor the panel runs the light only.

Installation, Flue Run and Cleaning

The hood is fixed above the oven with screws by qualified personnel working to local and national regulations, on a supporting surface that is level and has adequate load-bearing capacity, and at 68.3 lb it needs lifting equipment suited to the weight. Run the flue with as few bends as possible, every one a wide radius: 45 and 90 degree elbows, including spiral-pipe elbows, are recommended, while right-angle elbows and crushed spiral pipe are not. Have the flue and any extractor motor cleaned every six months.
