Omcan 41603 42 In. Stainless Steel Exhaust Hood for Fuoco Series Single 40637 and Double 40638 Chamber Pizza Ovens

A stainless steel hood for the Fuoco Series pizza ovens, the single chamber item 40637 and the double chamber item 40638, sold on its own with no oven included. It is positioned above the oven and fixed to it with screws. At 42.1 in wide, 45.5 in deep and 11.9 in tall it adds just under a foot above the oven, the number for your ceiling check. It carries an LED light and a push-button control panel and needs a single-phase 230 V, 60 Hz, 10 A socket. The suction motor is not included, so the extractor and flue run are a separate scope for your mechanical contractor.

Fit for Fuoco Ovens 40637 and 40638

Omcan lists one hood as compatible with both the single chamber 40637 and the double chamber 40638, so the hood is settled whichever chamber count you choose. It is 1070 mm wide and 1155 mm deep overall, the depth to allow when you set the oven position, with a 302 mm hood height. The oven is not part of this item: the 27 kg (59.5 lb) net weight is the hood alone, not the hood with the oven.

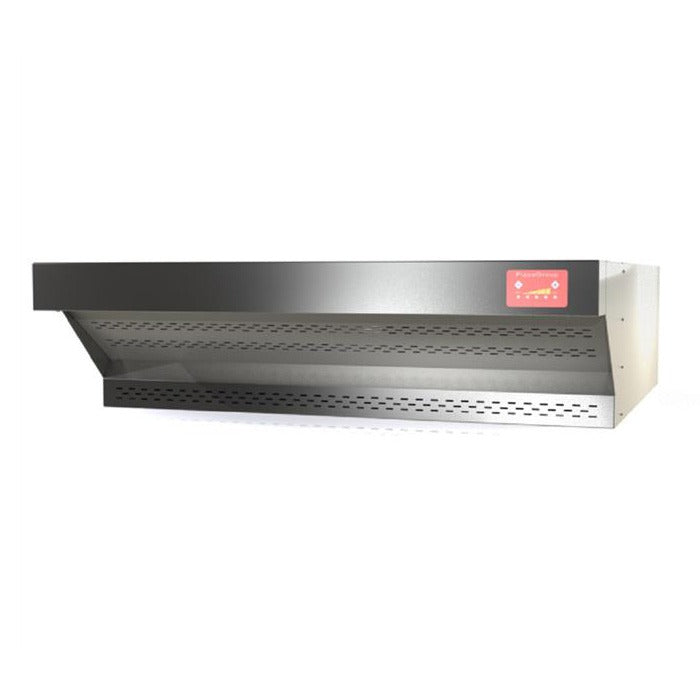

Slotted Front Face and Fume Outlet

Rows of slots run across the front face in two bands. The hood has a fume outlet hole for the flue connection. Keep that outlet clear, because an obstructed outlet hole can overheat the hood, and store nothing on top of the hood for the same reason. The outer hood gets a weekly wipe with a degreasing cleaner, never an abrasive sponge or a pressure washer.

LED Light and Push-Button Control Panel

An LED light bar is fitted in the hood, and a small panel on the front right corner carries plus and minus keys above five LEDs. Hold the plus key to switch the light on or off; there is no separate on/off switch. Once your contractor fits an extractor motor, the same keys start the fan and step the extraction rate one LED at a time, and holding the minus key shuts it off. Without a motor the panel runs the light only.

Installation, Flue Run and Cleaning

The hood is fixed above the oven with screws by qualified personnel working to local and national regulations, on a supporting surface that is level and has adequate load-bearing capacity, and at 59.5 lb it needs lifting equipment suited to the weight. Run the flue with as few bends as possible, every one a wide radius: 45 and 90 degree elbows, including spiral-pipe elbows, are recommended, while right-angle elbows and crushed spiral pipe are not. Have the flue and any extractor motor cleaned every six months.
