The Omcan 41863 Manual Food Slicer

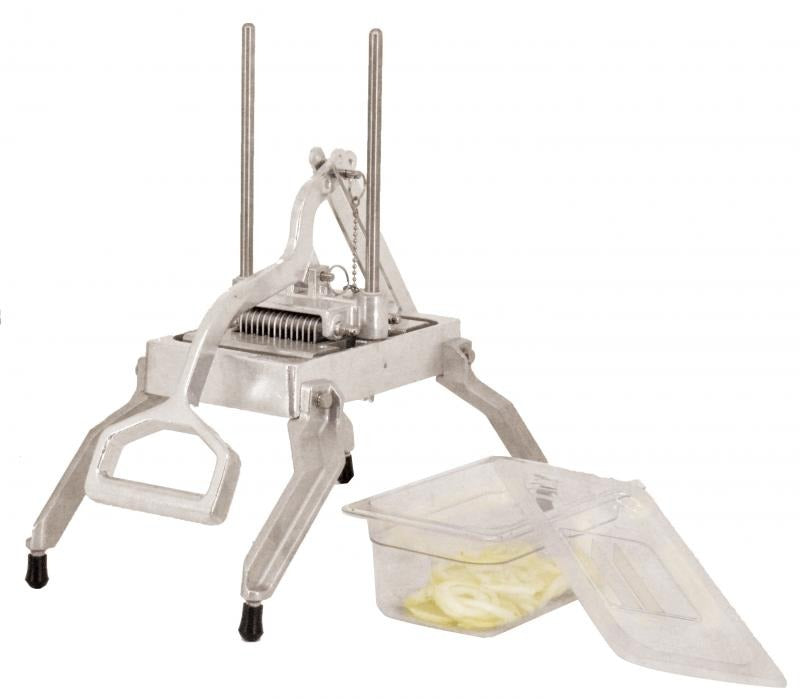

This Omcan vertical fruit and vegetable slicer cuts 1/4 inch slices with one downward pull of the lever. It is intended for onions, lemons, potatoes, limes, tomatoes and oranges, and there is no motor: the unit consists of a handle, lever, pin, legs, rubber feet, pusher body, guide rod and two blade assemblies. The cutting area measures 4.3 by 3.7 inches, so check it against the produce you slice. Note that a catch container is not included, so plan to stage a pan under the blades. Clean it thoroughly before and after each use and minimize alkaline cleansers, which may pit and dull the finish.
One-Stroke Slicing Through a 1/4 Inch Blade Set
You hold the lever up, set the product near the center of the blade pattern, take your hand out of the cutting area, and bring the lever down in one smooth, quick motion. The pusher assembly forces the produce through the blades; lift and repeat as needed.
Sharp Stainless Steel Blades
The blades are sharp stainless steel, and they minimize bruising and squeezing of the produce. This unit is fixed at a 1/4 inch slice; the same slicer is also available with a 3/16 inch blade set under item 41862.
Lever Locks Upright for Blade and Pusher Removal
A pin locks the lever in the up position: raise the lever until its hole lines up with the holes in the link bars and push the pin through all three. With the lever locked, the pusher assembly lifts off the guide rods and the two blade assemblies lift off their locating pins one at a time for cleaning. The pin stores in the unused hole in the handle while the machine is in use. Wash the blades by hand, they are not dishwasher safe, and keep fingers clear of the cutting edges while you work.
Guide Rods That Ask for Mineral Oil, Not Cooking Oil
The pusher rides on guide rods, and Omcan specifies food grade mineral oil (item 27336) for lubricating them as needed. Do not use cooking or vegetable oil, since any other oil may cause the machine to malfunction.
Replacement Parts Sold Under Their Own Item Numbers
Blade assemblies (items 76943 with 6 blades and 77360 with 7 blades), the pusher body assembly (item 77358), and the handle, pin, lever, legs, rubber feet and guide rod are all available as individual replacement items.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Manual countertop vertical slicer for onions, lemons, potatoes, limes, tomatoes and oranges
-
One smooth downward stroke of the lever drives the pusher assembly to force the produce through the blades
-
Cuts 1/4 inch (6 mm) slices; the same slicer with 3/16 inch blades is item 41862
-
Sharp stainless steel blades that minimize bruising and squeezing
-
Pin locks the lever upright for blade and pusher removal, and stores in a spare hole in the handle during use
-
Pusher assembly lifts off the guide rods and the two blade assemblies lift off their locating pins for hand washing; blades are not dishwasher safe
-
Hand lever operation with no motor; the only parts are the handle, lever, pin, legs, rubber feet, pusher, guide rod and blade assemblies
-
Rubber feet on the legs, available as replacement item 76940
-
Guide rods lubricate with food grade mineral oil, item 27336, never cooking or vegetable oil
-
Replacement blade assemblies, pusher body and wear parts available individually
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Manual countertop vertical slicer for onions, lemons, potatoes, limes, tomatoes and oranges
One smooth downward stroke of the lever drives the pusher assembly to force the produce through the blades
Cuts 1/4 inch (6 mm) slices; the same slicer with 3/16 inch blades is item 41862
Sharp stainless steel blades that minimize bruising and squeezing
Pin locks the lever upright for blade and pusher removal, and stores in a spare hole in the handle during use
The Omcan 41863 Manual Food Slicer
This Omcan vertical fruit and vegetable slicer cuts 1/4 inch slices with one downward pull of the lever. It is intended for onions, lemons, potatoes, limes, tomatoes and oranges, and there is no motor: the unit consists of a handle, lever, pin, legs, rubber feet, pusher body, guide rod and two blade assemblies. The cutting area measures 4.3 by 3.7 inches, so check it against the produce you slice. Note that a catch container is not included, so plan to stage a pan under the blades. Clean it thoroughly before and after each use and minimize alkaline cleansers, which may pit and dull the finish.
One-Stroke Slicing Through a 1/4 Inch Blade Set
You hold the lever up, set the product near the center of the blade pattern, take your hand out of the cutting area, and bring the lever down in one smooth, quick motion. The pusher assembly forces the produce through the blades; lift and repeat as needed.
Sharp Stainless Steel Blades
The blades are sharp stainless steel, and they minimize bruising and squeezing of the produce. This unit is fixed at a 1/4 inch slice; the same slicer is also available with a 3/16 inch blade set under item 41862.
Lever Locks Upright for Blade and Pusher Removal
A pin locks the lever in the up position: raise the lever until its hole lines up with the holes in the link bars and push the pin through all three. With the lever locked, the pusher assembly lifts off the guide rods and the two blade assemblies lift off their locating pins one at a time for cleaning. The pin stores in the unused hole in the handle while the machine is in use. Wash the blades by hand, they are not dishwasher safe, and keep fingers clear of the cutting edges while you work.
Guide Rods That Ask for Mineral Oil, Not Cooking Oil
The pusher rides on guide rods, and Omcan specifies food grade mineral oil (item 27336) for lubricating them as needed. Do not use cooking or vegetable oil, since any other oil may cause the machine to malfunction.
Replacement Parts Sold Under Their Own Item Numbers
Blade assemblies (items 76943 with 6 blades and 77360 with 7 blades), the pusher body assembly (item 77358), and the handle, pin, lever, legs, rubber feet and guide rod are all available as individual replacement items.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Manual countertop vertical slicer for onions, lemons, potatoes, limes, tomatoes and oranges
-
One smooth downward stroke of the lever drives the pusher assembly to force the produce through the blades
-
Cuts 1/4 inch (6 mm) slices; the same slicer with 3/16 inch blades is item 41862
-
Sharp stainless steel blades that minimize bruising and squeezing
-
Pin locks the lever upright for blade and pusher removal, and stores in a spare hole in the handle during use
-
Pusher assembly lifts off the guide rods and the two blade assemblies lift off their locating pins for hand washing; blades are not dishwasher safe
-
Hand lever operation with no motor; the only parts are the handle, lever, pin, legs, rubber feet, pusher, guide rod and blade assemblies
-
Rubber feet on the legs, available as replacement item 76940
-
Guide rods lubricate with food grade mineral oil, item 27336, never cooking or vegetable oil
-
Replacement blade assemblies, pusher body and wear parts available individually
Resources & Downloads
See all from Omcan
Specifications
| Operation | Manual lever |
| Mounting | Countertop |
| Cutting Area | 4.3 x 3.7 in (108 x 95 mm) |
| Slice Thickness | 1/4 in (6 mm) |
| Blade Material | Stainless steel |
| Blade Assemblies | 2, removable |
| Pusher Assembly | Removable |
| Dishwasher Safe Blades | No |
| Feet | Rubber |
| Guide Rod Lubricant | Food grade mineral oil, item 27336 |
| Catch Container | Not included |
| Overall Width | 20.5 in (521 mm) |
| Overall Depth | 10 in (254 mm) |
| Overall Height | 26.5 in (673 mm) |
| Weight | 17.4 lb (7.9 kg) |
| Replacement Blade Assemblies | Items 76943 (6 blades), 77360 (7 blades) |
| Replacement Pusher Body Assembly | Item 77358 |
| 3/16 In. Blade Version | Item 41862 |
Manufacturer's Warranty
-
6 Month
Labor
-
6 Month
Parts
Certifications & Approvals
-
NSF Approved
