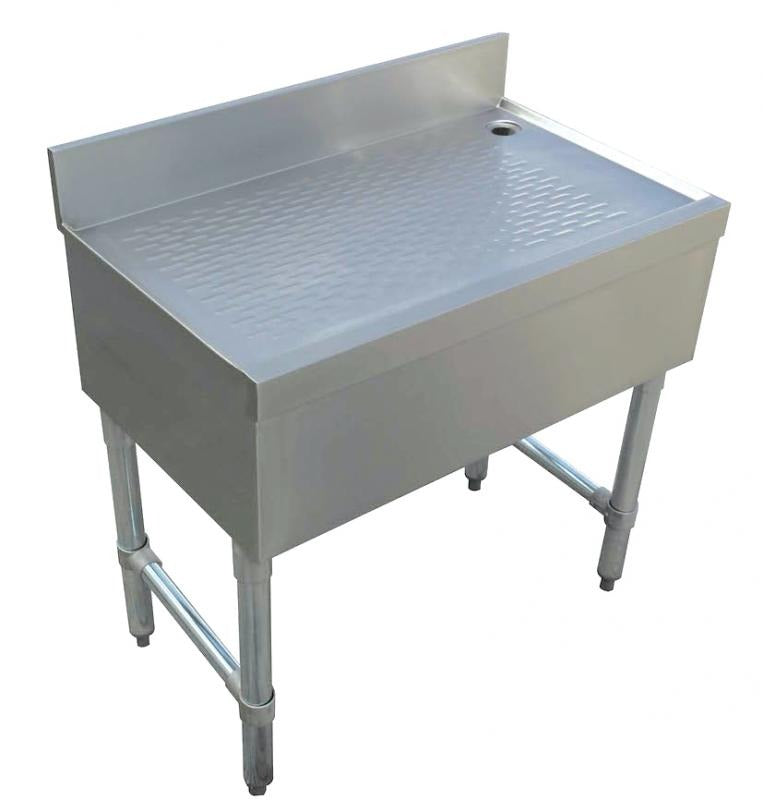

The Omcan 43472 Bar Drainboard
This Omcan bar drainboard is a free-standing drip station for the underbar line, the piece that goes beside the bar sink or ice bin so rinsed glassware drains on its own surface. The top runs 24 inches wide by 18 inches deep with a 15-3/4 inch deep embossed drainage area and a 1 inch drain opening set 2-1/2 inches in from the side and back edges, and the unit is fitted with 1 inch IPS drain tubing for the run to the waste line. The work surface stands 30 inches high, 33 inches to the top of the backsplash, and the open base stands on galvanized legs set in sockets.
18-Gauge 304 Stainless Steel Top and Body
The drainboard surface, sides, front, and back are all 18-gauge 304 stainless steel. A 10 inch apron runs across the front below the top.
Embossed Drain Area with IPS Tubing
The embossed drainage area covers 15-3/4 inches of the top's depth, and the 1 inch diameter drain opening sits in the back corner, 2-1/2 inches from the side edge and 2-1/2 inches from the back. The 1 inch IPS drain tubing carries the water on to the waste line.
3 Inch Backsplash
A 3 inch backsplash rises along the back edge of the top, which takes the overall height from the 30 inch work surface to 33 inches.
Open Base on Galvanized Legs
The base is open, with 20 inches of clear height between the floor and the bottom of the apron. Galvanized legs seat in sockets and stand on plastic bullet feet, with a 21-7/8 inch leg spread across the front. Omcan lists its stainless steel blender station, item 43473, as a related product built on the same galvanized leg and plastic bullet foot base.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Bar drainboard for the underbar line, with an open base for a free-standing drip station
-
Embossed drainage area 15-3/4 inches deep with a 1 inch drain opening in the back corner
-
1 inch IPS drain tubing for the waste line connection
-
18-gauge 304 stainless steel drainboard, sides, front and back
-
3 inch backsplash along the back edge of the top
-
10 inch apron across the front with 20 inches of clearance beneath it
-
Galvanized legs set in sockets, standing on plastic bullet feet 21-7/8 inches apart
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Bar drainboard for the underbar line, with an open base for a free-standing drip station
Embossed drainage area 15-3/4 inches deep with a 1 inch drain opening in the back corner
1 inch IPS drain tubing for the waste line connection
18-gauge 304 stainless steel drainboard, sides, front and back
3 inch backsplash along the back edge of the top
The Omcan 43472 Bar Drainboard
This Omcan bar drainboard is a free-standing drip station for the underbar line, the piece that goes beside the bar sink or ice bin so rinsed glassware drains on its own surface. The top runs 24 inches wide by 18 inches deep with a 15-3/4 inch deep embossed drainage area and a 1 inch drain opening set 2-1/2 inches in from the side and back edges, and the unit is fitted with 1 inch IPS drain tubing for the run to the waste line. The work surface stands 30 inches high, 33 inches to the top of the backsplash, and the open base stands on galvanized legs set in sockets.
18-Gauge 304 Stainless Steel Top and Body
The drainboard surface, sides, front, and back are all 18-gauge 304 stainless steel. A 10 inch apron runs across the front below the top.
Embossed Drain Area with IPS Tubing
The embossed drainage area covers 15-3/4 inches of the top's depth, and the 1 inch diameter drain opening sits in the back corner, 2-1/2 inches from the side edge and 2-1/2 inches from the back. The 1 inch IPS drain tubing carries the water on to the waste line.
3 Inch Backsplash
A 3 inch backsplash rises along the back edge of the top, which takes the overall height from the 30 inch work surface to 33 inches.
Open Base on Galvanized Legs
The base is open, with 20 inches of clear height between the floor and the bottom of the apron. Galvanized legs seat in sockets and stand on plastic bullet feet, with a 21-7/8 inch leg spread across the front. Omcan lists its stainless steel blender station, item 43473, as a related product built on the same galvanized leg and plastic bullet foot base.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Bar drainboard for the underbar line, with an open base for a free-standing drip station
-
Embossed drainage area 15-3/4 inches deep with a 1 inch drain opening in the back corner
-
1 inch IPS drain tubing for the waste line connection
-
18-gauge 304 stainless steel drainboard, sides, front and back
-
3 inch backsplash along the back edge of the top
-
10 inch apron across the front with 20 inches of clearance beneath it
-
Galvanized legs set in sockets, standing on plastic bullet feet 21-7/8 inches apart
Resources & Downloads
See all from Omcan
Specifications
| Top Size | 24 x 18 in |
| Drainage Area Depth | 15-3/4 in |
| Drain Opening | 1 in dia. |
| Drain Position | 2-1/2 in from side and back edges |
| Drain Tubing | 1 in IPS |
| Backsplash Height | 3 in |
| Apron Height | 10 in |
| Clearance Under Apron | 20 in |
| Material | 18-gauge 304 stainless steel |
| Base | Open |
| Legs | Galvanized, socket mount |
| Feet | Plastic bullet |
| Leg Spread | 21-7/8 in |
| Work Surface Height | 30 in |
| Overall Width | 24 in |
| Overall Depth | 18 in |
| Overall Height | 33 in with backsplash |
| Weight | 37 lb |
Manufacturer's Warranty
-
6 Month
