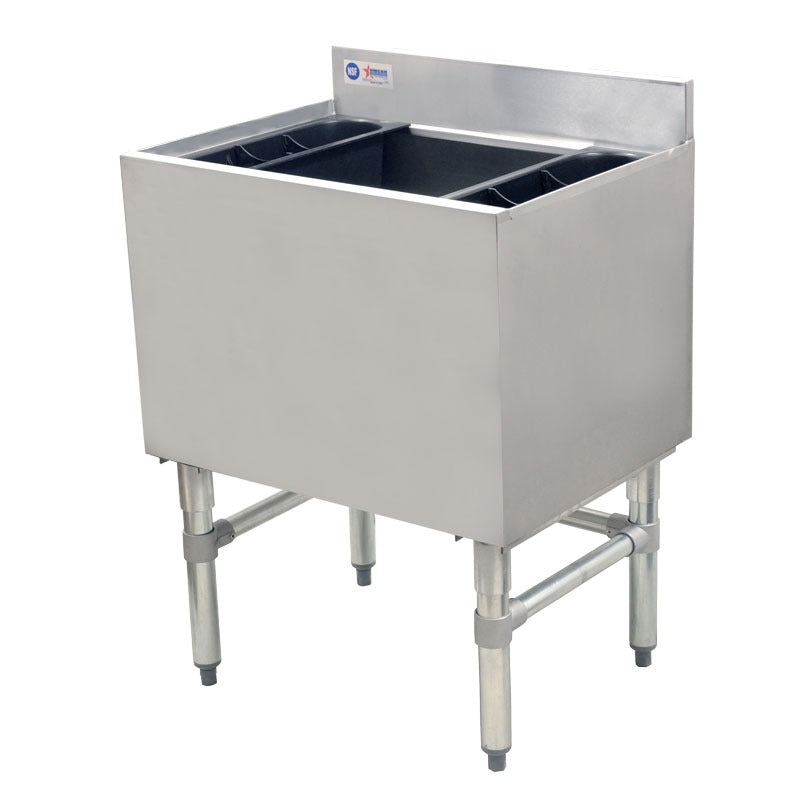

The Omcan 43475 Underbar Ice Bin
This Omcan underbar ice bin holds 77 pounds of ice in an open bowl 22 inches wide and 12 inches deep, made for bar operations and back of house use. Two bottle and shaker racks hang on the backsplash at the back of the bin, so bottles and shaker tins sit beside the ice. The unit stands 24 inches wide with a 30 inch work surface height, so plan a waste connection for the drain where it will sit. Leg braces are included for additional support.
77 Pound Ice Capacity
The bowl measures 22 x 14.8 inches and runs 12 inches deep, holding 77 pounds of ice. This model is not insulated and has no cold plate.
Open Bin for Straight Ice Service
With no cold plate in the way, the full 12 inch bowl depth is open for ice. If your bar also runs post-mix soda lines, the same size bin is available insulated with a built-in 7 circuit cold plate under item 43477, which lets you run up to 7 soda lines through the bin to chill them before serving. A 1 inch diameter drain opening in the bottom of the bowl carries melt water to your waste line.

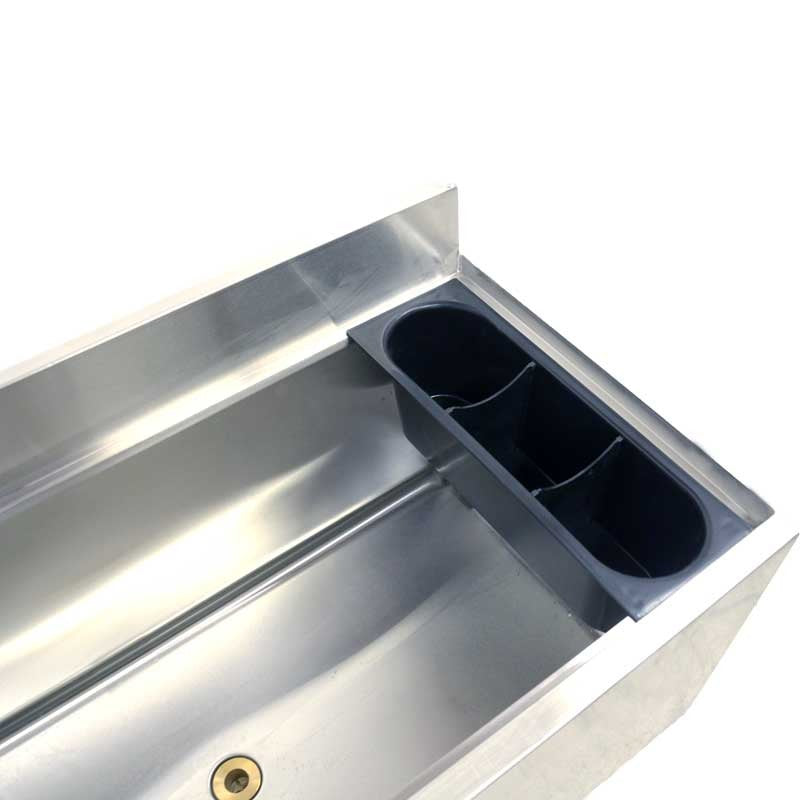

Bottle and Shaker Racks Included
Two divided racks come with the bin. Each hangs on the 3 inch backsplash at the rear, keeping bottles and shaker tins beside the ice without bolting on extra hardware.
20-Gauge 304 Stainless Steel Bowl and Body
The bowl, top, back and body are 20-gauge 304 stainless steel. The legs and sockets are galvanized, with plastic bullet feet and U shaped leg bracing. A set of four 14 inch stainless steel legs, item 44624, and a stainless steel leg brace, item 44625, are listed as accessories.

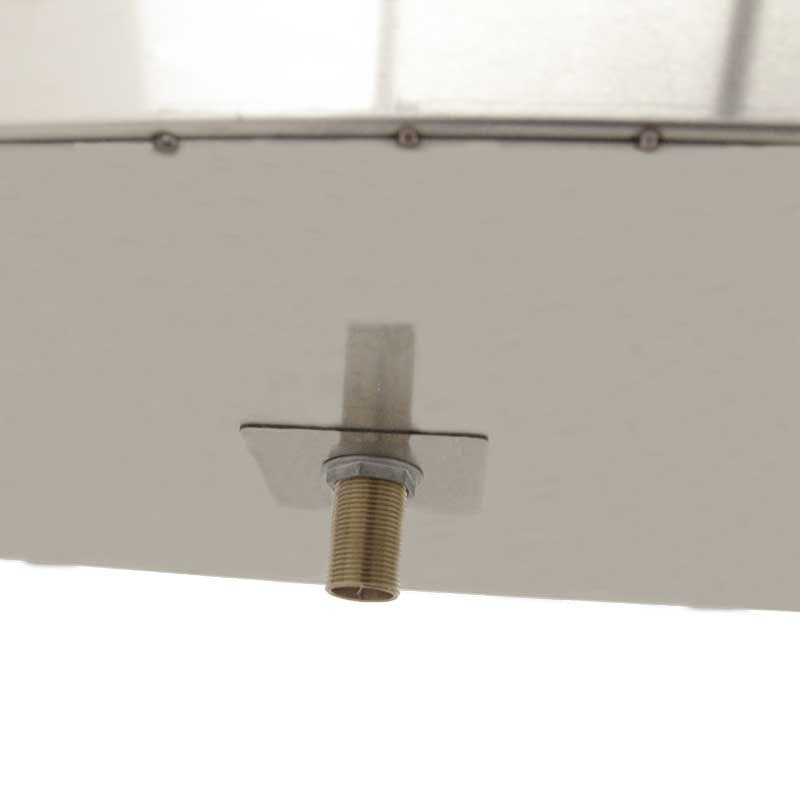

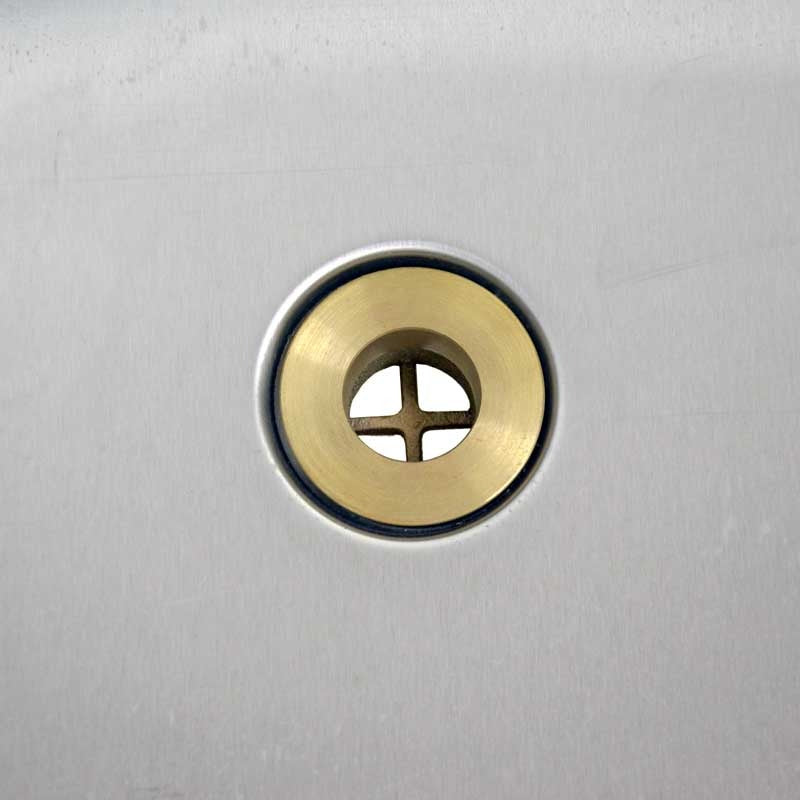

Drain Connection, Assembly, and Accessories
Melt water leaves through the 1 inch diameter drain opening at the bottom of the bowl, so rough in a waste line where the bin will sit. Overall the unit runs 24 x 18-1/2 x 33 inches with the work surface at 30 inches, and the legs stand 19-5/8 x 13-3/4 inches apart. Assembly is required: the U shaped brace and legs go together with set screws, then the body sets onto the legs and is secured with set screws at each socket. A sliding cover, item 44622, is available separately.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Ice bin for bar operations and back of house use
-
Holds 77 pounds of ice in an open 22 x 14.8 x 12 inch bowl
-
Open bowl with no cold plate; a 7 circuit post-mix cold plate version is listed as item 43477
-
Two bottle and shaker racks included, hanging on the backsplash beside the ice
-
20-gauge 304 stainless steel bowl, top, back and body
-
U shaped leg bracing included for additional support
-
Galvanized legs and sockets with plastic bullet feet; 14 inch stainless steel legs are listed as item 44624
-
1 inch diameter drain opening in the bottom of the bowl
-
A matching sliding cover is listed as item 44622
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Ice bin for bar operations and back of house use
Holds 77 pounds of ice in an open 22 x 14.8 x 12 inch bowl
Open bowl with no cold plate; a 7 circuit post-mix cold plate version is listed as item 43477
Two bottle and shaker racks included, hanging on the backsplash beside the ice
20-gauge 304 stainless steel bowl, top, back and body
The Omcan 43475 Underbar Ice Bin
This Omcan underbar ice bin holds 77 pounds of ice in an open bowl 22 inches wide and 12 inches deep, made for bar operations and back of house use. Two bottle and shaker racks hang on the backsplash at the back of the bin, so bottles and shaker tins sit beside the ice. The unit stands 24 inches wide with a 30 inch work surface height, so plan a waste connection for the drain where it will sit. Leg braces are included for additional support.
77 Pound Ice Capacity
The bowl measures 22 x 14.8 inches and runs 12 inches deep, holding 77 pounds of ice. This model is not insulated and has no cold plate.
Open Bin for Straight Ice Service
With no cold plate in the way, the full 12 inch bowl depth is open for ice. If your bar also runs post-mix soda lines, the same size bin is available insulated with a built-in 7 circuit cold plate under item 43477, which lets you run up to 7 soda lines through the bin to chill them before serving. A 1 inch diameter drain opening in the bottom of the bowl carries melt water to your waste line.
Bottle and Shaker Racks Included
Two divided racks come with the bin. Each hangs on the 3 inch backsplash at the rear, keeping bottles and shaker tins beside the ice without bolting on extra hardware.
20-Gauge 304 Stainless Steel Bowl and Body
The bowl, top, back and body are 20-gauge 304 stainless steel. The legs and sockets are galvanized, with plastic bullet feet and U shaped leg bracing. A set of four 14 inch stainless steel legs, item 44624, and a stainless steel leg brace, item 44625, are listed as accessories.
Drain Connection, Assembly, and Accessories
Melt water leaves through the 1 inch diameter drain opening at the bottom of the bowl, so rough in a waste line where the bin will sit. Overall the unit runs 24 x 18-1/2 x 33 inches with the work surface at 30 inches, and the legs stand 19-5/8 x 13-3/4 inches apart. Assembly is required: the U shaped brace and legs go together with set screws, then the body sets onto the legs and is secured with set screws at each socket. A sliding cover, item 44622, is available separately.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Ice bin for bar operations and back of house use
-
Holds 77 pounds of ice in an open 22 x 14.8 x 12 inch bowl
-
Open bowl with no cold plate; a 7 circuit post-mix cold plate version is listed as item 43477
-
Two bottle and shaker racks included, hanging on the backsplash beside the ice
-
20-gauge 304 stainless steel bowl, top, back and body
-
U shaped leg bracing included for additional support
-
Galvanized legs and sockets with plastic bullet feet; 14 inch stainless steel legs are listed as item 44624
-
1 inch diameter drain opening in the bottom of the bowl
-
A matching sliding cover is listed as item 44622
Resources & Downloads
See all from Omcan
Specifications
| Ice Capacity | 77 lb |
| Cold Plate | None |
| Insulated | No |
| Bowl Size (W x D x H) | 22 x 14.8 x 12 in |
| Bottle and Shaker Racks | 2 included, hang on backsplash |
| Leg Bracing | U shape, included |
| Bowl, Top, Back and Body | 20-gauge 304 stainless steel |
| Legs and Sockets | Galvanized |
| Feet | Plastic bullet |
| Drain Opening | 1 in dia. |
| Backsplash Height | 3 in |
| Work Surface Height | 30 in |
| Overall Width | 24 in |
| Overall Depth | 18-1/2 in |
| Overall Height | 33 in |
| Leg Spread | 19-5/8 x 13-3/4 in |
| Net Weight | 57 lb |
| Sliding Cover | Item 44622 |
| Stainless Steel Legs, 14 in, Set of 4 | Item 44624 |
| Stainless Steel Leg Brace | Item 44625 |
| Insulated Cold Plate Version | Item 43477 |
| Assembly | Required, set screws |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
