The Omcan 43477 Underbar Ice Bin
This Omcan ice bin holds 77 pounds of ice in an insulated bowl 22 inches wide and 12 inches deep, and it is intended for bar operations and back of house use. Bottle and shaker racks come with it to keep bottles and tins at the bin, and a 7-circuit post-mix cold plate under the bowl chills soda lines on their way to the gun. The unit stands 24 inches wide with the work surface at 30 inches and a 3 inch backsplash behind it, so measure your underbar run and plan for a drain connection before it arrives. Leg braces come with the unit for additional support.
77 Pound Ice Capacity in an Insulated Bin
The bowl measures 22 x 14.8 inches and runs 12 inches deep, holding 77 pounds of ice. The bin is insulated, which the 24 inch bin without the cold plate, item 43475, is not.

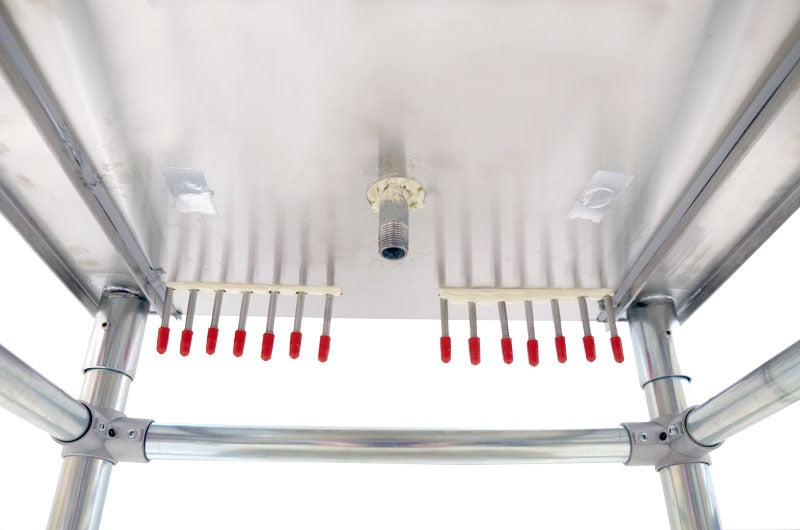

Seven Circuit Post-Mix Cold Plate
An aluminum post-mix cold plate with stainless steel tubing circuits is built in under the bowl, with 7 circuits, so you can run up to 7 soda lines through the bin to chill them before serving.

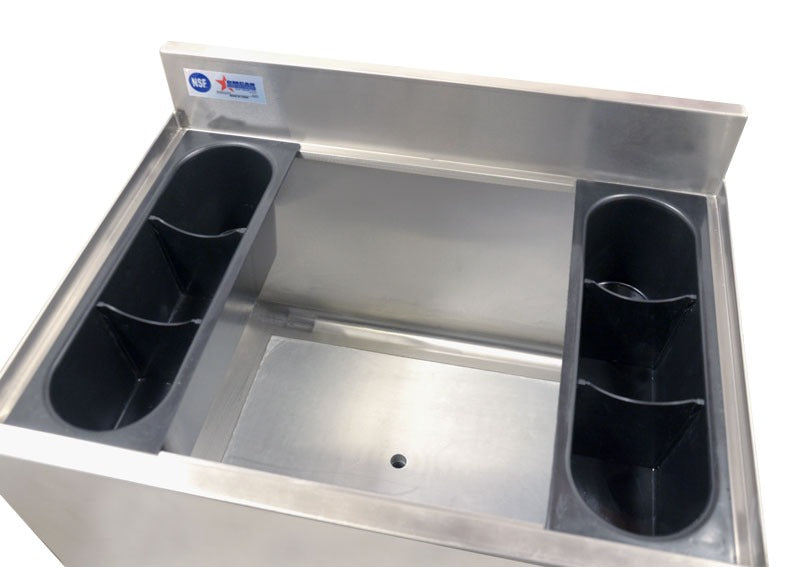

Bottle and Shaker Racks Included
Two bottle and shaker racks ship with the bin and sit at the back of the bowl, keeping tins and bottles at the ice rather than on the back bar. The two racks drop into place after the legs are fitted.
20-Gauge 304 Stainless Steel Body
The bowl, top, back and body are 20-gauge 304 stainless steel. The legs and sockets are galvanized with plastic bullet feet, and a U shape leg brace ties the legs together for additional support. The legs, sockets and braces attach with the supplied screws, so allow time to assemble the stand before setting the bin on it.
Drain Connection and Underbar Fit
Melt water leaves through a 13/16 in diameter drain opening at the bottom of the bowl, so rough in a waste line where the bin will sit. Overall the unit runs 24 x 18-1/2 x 33 inches with the work surface at 30 inches, the body 16-3/4 inches tall and the legs spread 19-5/8 x 13-3/4 inches at the floor. An optional sliding cover, item 44622, measuring 16.5 x 23.5 inches fits this bin, and an extra leg brace, item 44625, plus a four piece 14 inch leg set, item 44624, are also available.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Insulated ice bin for bar operations and back of house use, with built-in soda line chilling
-
Insulated bowl holds 77 pounds of ice behind a 3 inch backsplash
-
Post-mix aluminum cold plate with seven stainless steel tubing circuits chills up to seven soda lines before serving
-
Two bottle and shaker racks included keep tins and bottles at the bin
-
20-gauge 304 stainless steel bowl, top, back and body
-
Galvanized legs and sockets with plastic bullet feet and a U shape leg brace for additional support
-
Bottom drain opening carries melt water out of the bowl
-
Optional sliding cover, item 44622, and 14 inch leg set, item 44624, fit this bin
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Insulated ice bin for bar operations and back of house use, with built-in soda line chilling
Insulated bowl holds 77 pounds of ice behind a 3 inch backsplash
Post-mix aluminum cold plate with seven stainless steel tubing circuits chills up to seven soda lines before serving
Two bottle and shaker racks included keep tins and bottles at the bin
20-gauge 304 stainless steel bowl, top, back and body
The Omcan 43477 Underbar Ice Bin
This Omcan ice bin holds 77 pounds of ice in an insulated bowl 22 inches wide and 12 inches deep, and it is intended for bar operations and back of house use. Bottle and shaker racks come with it to keep bottles and tins at the bin, and a 7-circuit post-mix cold plate under the bowl chills soda lines on their way to the gun. The unit stands 24 inches wide with the work surface at 30 inches and a 3 inch backsplash behind it, so measure your underbar run and plan for a drain connection before it arrives. Leg braces come with the unit for additional support.
77 Pound Ice Capacity in an Insulated Bin
The bowl measures 22 x 14.8 inches and runs 12 inches deep, holding 77 pounds of ice. The bin is insulated, which the 24 inch bin without the cold plate, item 43475, is not.
Seven Circuit Post-Mix Cold Plate
An aluminum post-mix cold plate with stainless steel tubing circuits is built in under the bowl, with 7 circuits, so you can run up to 7 soda lines through the bin to chill them before serving.
Bottle and Shaker Racks Included
Two bottle and shaker racks ship with the bin and sit at the back of the bowl, keeping tins and bottles at the ice rather than on the back bar. The two racks drop into place after the legs are fitted.
20-Gauge 304 Stainless Steel Body
The bowl, top, back and body are 20-gauge 304 stainless steel. The legs and sockets are galvanized with plastic bullet feet, and a U shape leg brace ties the legs together for additional support. The legs, sockets and braces attach with the supplied screws, so allow time to assemble the stand before setting the bin on it.
Drain Connection and Underbar Fit
Melt water leaves through a 13/16 in diameter drain opening at the bottom of the bowl, so rough in a waste line where the bin will sit. Overall the unit runs 24 x 18-1/2 x 33 inches with the work surface at 30 inches, the body 16-3/4 inches tall and the legs spread 19-5/8 x 13-3/4 inches at the floor. An optional sliding cover, item 44622, measuring 16.5 x 23.5 inches fits this bin, and an extra leg brace, item 44625, plus a four piece 14 inch leg set, item 44624, are also available.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Insulated ice bin for bar operations and back of house use, with built-in soda line chilling
-
Insulated bowl holds 77 pounds of ice behind a 3 inch backsplash
-
Post-mix aluminum cold plate with seven stainless steel tubing circuits chills up to seven soda lines before serving
-
Two bottle and shaker racks included keep tins and bottles at the bin
-
20-gauge 304 stainless steel bowl, top, back and body
-
Galvanized legs and sockets with plastic bullet feet and a U shape leg brace for additional support
-
Bottom drain opening carries melt water out of the bowl
-
Optional sliding cover, item 44622, and 14 inch leg set, item 44624, fit this bin
Resources & Downloads
See all from Omcan
Specifications
| Ice Capacity | 77 lb |
| Cold Plate | Post-mix aluminum, stainless steel tubing, 7 circuits |
| Bowl Size | 22 x 14.8 in |
| Bowl Depth | 12 in |
| Insulated | Yes |
| Bottle and Shaker Racks | 2 included |
| Leg Brace | U shape, included |
| Body Material | 20-gauge 304 stainless steel |
| Legs and Sockets | Galvanized, plastic bullet feet |
| Drain Opening | 13/16 in dia. |
| Backsplash Height | 3 in |
| Work Surface Height | 30 in |
| Overall Width | 24 in |
| Overall Depth | 18-1/2 in |
| Overall Height | 33 in |
| Leg Spread | 19-5/8 x 13-3/4 in |
| Weight | 91.3 lb |
| Optional Sliding Cover | Item 44622, 16.5 x 23.5 in |
| Optional Leg Set | Item 44624, 14 in, 4 pc |
| Optional Leg Brace | Item 44625 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
