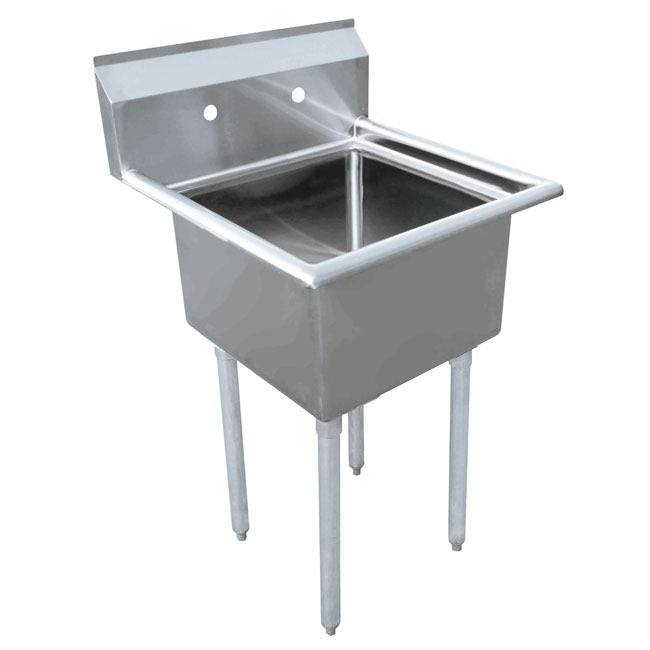

The Omcan 43783 1 Compartment Sink
This Omcan one compartment pot sink has a single 24 x 24 inch bowl, 14 inches deep, with a 3.5 inch center drain and a drain guard in the box. There is no drain board on this model. The unit measures 29 inches wide by 29 1/2 inches front to back and stands 44 inches tall at the top of the backsplash, so measure your wall run before ordering. It ships with the 16 gauge galvanized legs removed, and they attach on site.
24 by 24 Inch Bowl with Center Drain
The bowl measures 24 x 24 inches across and 14 inches deep, with its corners formed on a 3/4 inch radius. The 3.5 inch drain sits in the center of the bowl floor, and a drain guard for it comes with the sink. Omcan also lists this bowl with a 1.8 inch corner drain as item 22118.
18-Gauge 430 Stainless Steel Construction
The sink is built from 18 gauge 430 stainless steel. The backsplash measures 9 3/4 inches from its top edge to the bottom of the front apron and carries two 1 1/8 inch faucet holes on 8 inch centers, with the hole centers 39 inches above the floor, for a splash mounted faucet. Omcan lists splash mounted 12 and 14 inch spout faucets (items 23516 and 23517), a gooseneck faucet (item 22289) and pre-rinse assemblies (items 22123 and 22124) as accessories for this sink, and left and right stainless steel splash guards as items 47733 and 47734.
No Drain Board, 29 Inch Overall Width
There is no drain board on this model, so the sink measures 29 inches wide by 29 1/2 inches front to back. Omcan offers the same bowl with a left drain board (item 41855), a right drain board (item 43784) and drain boards on both sides (item 43785). A removable 24 x 24 inch 18 gauge stainless steel drainboard, item 21143, is listed separately.
Knock-Down Legs and Leg Brace Option
The four legs are 16 gauge galvanized steel and ship removed from the sink. The box holds the sink body, the drain, the four legs, eight fasteners, the drain guard and an upright pipe that fits in the drain opening; the legs fit into sockets under the bowl and are fixed with the fasteners. Installed, the legs sit 19 1/2 inches apart side to side and 19 1/2 inches apart front to back. An optional leg brace, item 21139, is listed for this sink.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
One tub pot sink with a 24 x 24 inch bowl, 14 inches deep, and a 3.5 inch center drain
-
Comes with a drain guard for the center drain
-
18 gauge 430 stainless steel bowl and top, with bowl corners formed on a 3/4 inch radius
-
9 3/4 inch backsplash punched with two 1 1/8 inch faucet holes on 8 inch centers for a splash mounted faucet, faucets listed separately
-
No drain board, for a 29 inch wide footprint; a removable 24 x 24 inch drainboard is listed separately as item 21143
-
16 gauge galvanized legs ship removed and fit into leg sockets under the bowl; optional leg brace available as item 21139
-
Left and right stainless steel splash guards available as items 47733 and 47734
-
Omcan also offers this bowl with a left drain board (item 41855), a right drain board (item 43784) or two drain boards (item 43785), and with a 1.8 inch corner drain as item 22118
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
One tub pot sink with a 24 x 24 inch bowl, 14 inches deep, and a 3.5 inch center drain
Comes with a drain guard for the center drain
18 gauge 430 stainless steel bowl and top, with bowl corners formed on a 3/4 inch radius
9 3/4 inch backsplash punched with two 1 1/8 inch faucet holes on 8 inch centers for a splash mounted faucet, faucets listed separately
No drain board, for a 29 inch wide footprint; a removable 24 x 24 inch drainboard is listed separately as item 21143
The Omcan 43783 1 Compartment Sink
This Omcan one compartment pot sink has a single 24 x 24 inch bowl, 14 inches deep, with a 3.5 inch center drain and a drain guard in the box. There is no drain board on this model. The unit measures 29 inches wide by 29 1/2 inches front to back and stands 44 inches tall at the top of the backsplash, so measure your wall run before ordering. It ships with the 16 gauge galvanized legs removed, and they attach on site.
24 by 24 Inch Bowl with Center Drain
The bowl measures 24 x 24 inches across and 14 inches deep, with its corners formed on a 3/4 inch radius. The 3.5 inch drain sits in the center of the bowl floor, and a drain guard for it comes with the sink. Omcan also lists this bowl with a 1.8 inch corner drain as item 22118.
18-Gauge 430 Stainless Steel Construction
The sink is built from 18 gauge 430 stainless steel. The backsplash measures 9 3/4 inches from its top edge to the bottom of the front apron and carries two 1 1/8 inch faucet holes on 8 inch centers, with the hole centers 39 inches above the floor, for a splash mounted faucet. Omcan lists splash mounted 12 and 14 inch spout faucets (items 23516 and 23517), a gooseneck faucet (item 22289) and pre-rinse assemblies (items 22123 and 22124) as accessories for this sink, and left and right stainless steel splash guards as items 47733 and 47734.
No Drain Board, 29 Inch Overall Width
There is no drain board on this model, so the sink measures 29 inches wide by 29 1/2 inches front to back. Omcan offers the same bowl with a left drain board (item 41855), a right drain board (item 43784) and drain boards on both sides (item 43785). A removable 24 x 24 inch 18 gauge stainless steel drainboard, item 21143, is listed separately.
Knock-Down Legs and Leg Brace Option
The four legs are 16 gauge galvanized steel and ship removed from the sink. The box holds the sink body, the drain, the four legs, eight fasteners, the drain guard and an upright pipe that fits in the drain opening; the legs fit into sockets under the bowl and are fixed with the fasteners. Installed, the legs sit 19 1/2 inches apart side to side and 19 1/2 inches apart front to back. An optional leg brace, item 21139, is listed for this sink.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
One tub pot sink with a 24 x 24 inch bowl, 14 inches deep, and a 3.5 inch center drain
-
Comes with a drain guard for the center drain
-
18 gauge 430 stainless steel bowl and top, with bowl corners formed on a 3/4 inch radius
-
9 3/4 inch backsplash punched with two 1 1/8 inch faucet holes on 8 inch centers for a splash mounted faucet, faucets listed separately
-
No drain board, for a 29 inch wide footprint; a removable 24 x 24 inch drainboard is listed separately as item 21143
-
16 gauge galvanized legs ship removed and fit into leg sockets under the bowl; optional leg brace available as item 21139
-
Left and right stainless steel splash guards available as items 47733 and 47734
-
Omcan also offers this bowl with a left drain board (item 41855), a right drain board (item 43784) or two drain boards (item 43785), and with a 1.8 inch corner drain as item 22118
Resources & Downloads
See all from Omcan
Specifications
| Number of Compartments | 1 |
| Bowl Size | 24 x 24 in / 609.6 x 609.6 mm |
| Bowl Depth | 14 in / 355.6 mm |
| Bowl Corner Radius | 3/4 in |
| Drain Location | Center |
| Drain Size | 3.5 in |
| Drain Guard | Included |
| Faucet Holes | 2, 1 1/8 in diameter |
| Faucet Hole Spacing | 8 in on center |
| Faucet Hole Height Above Floor | 39 in |
| Backsplash Height | 9 3/4 in |
| Drain Board | None |
| Material | 18 gauge 430 stainless steel |
| Legs | 4, 16 gauge galvanized, shipped removed |
| Leg Spacing (Side to Side x Front to Back) | 19 1/2 x 19 1/2 in |
| Overall Width | 29 in / 736.6 mm |
| Overall Depth | 29 1/2 in / 749 mm |
| Overall Height | 44 in / 1117.6 mm |
| Weight | 45 lb / 20 kg |
| Optional Leg Brace | Item 21139 |
| Optional Removable Drainboard | Item 21143, 24 x 24 in |
| Optional Splash Guards | Items 47733 (left), 47734 (right) |
| Corner Drain Version | Item 22118 |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
