Omcan 44603 72 In. Four Compartment Underbar Sink, Two 13 In. Drain Boards, Four Faucet Holes

SKU44603 BrandOmcan

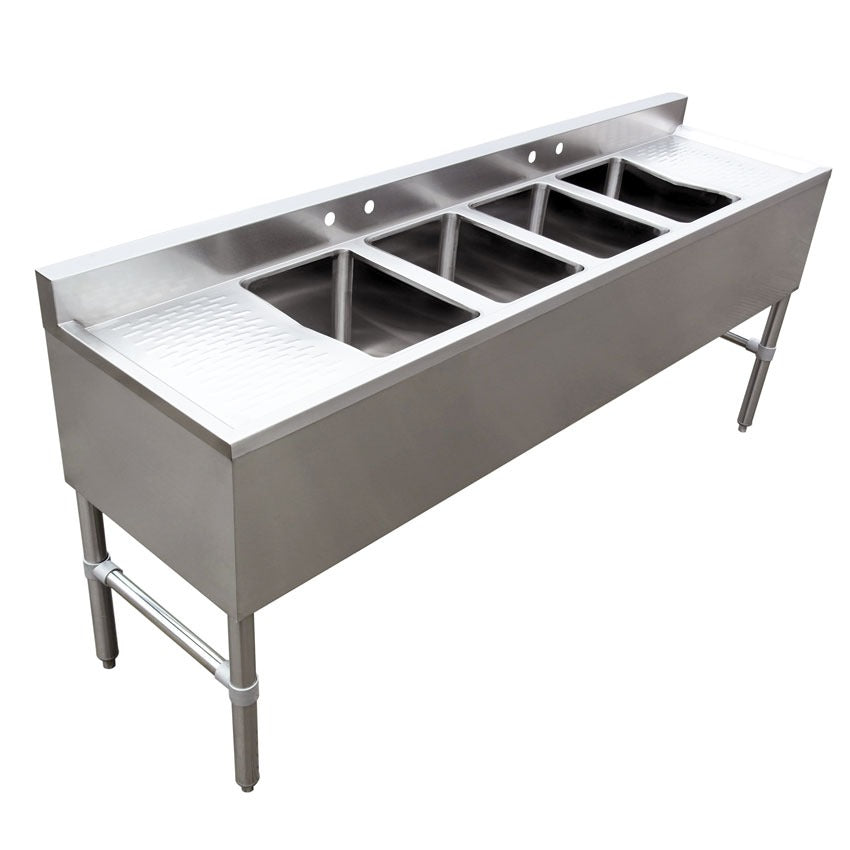

The Omcan 44603 4 Bowl Underbar Sink

This Omcan underbar sink packs four 10 x 14 inch bowls and two 13 inch drain boards into a 72 inch run, for washing, rinsing, and sanitizing glassware at the bar. Each bowl is 10 inches deep. The work surface sits 30 inches off the floor, the overall height with the 3 inch backsplash is 33 inches, and the unit is 18 3/4 inches front to back. Two separate pairs of faucet holes are punched in the back, one pair at each end of the bowl run. At six feet wide it takes a dedicated stretch of underbar, so measure the run before you commit the space.

Four 10 by 14 Inch Bowls at Underbar Height

Four compartments, each 10 inches wide by 14 inches front to back by 10 inches deep, sit in a row with 2 inches of flat top between them. Each bowl has a 1 1/2 inch drain opening, and the bowls start 2 inches in from the back edge of the top.

Drain Boards on Both Sides of the Bowls

A 13 inch drain board on each end flanks the four bowls, giving glassware a place to land on either side of the wash line. The top has a 3 inch backsplash along the back edge.

Two Pairs of Faucet Holes on 4 Inch Centers

Two separate pairs of 1 inch diameter holes are punched in the back, each pair on 4 inch centers, so the sink can take two faucets, one over each end of the bowl run. No faucet is pictured with the sink.

18-Gauge 304 Stainless Steel Top, Bowls, and Back

The top, bowls, and back are 18-gauge type 304 stainless steel, with a 20-gauge type 304 stainless steel apron facing the room. The sink stands on four legs with bullet feet, set 69 11/16 inches apart across the front and 16 7/16 inches apart side to side, and weighs 85.8 pounds.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Four compartment underbar sink for washing, rinsing, and sanitizing glassware
Four 10 x 14 inch bowls, each 10 inches deep with a 1 1/2 inch drain opening
13 inch drain boards on both ends of the bowl run
Two pairs of 1 inch faucet holes on 4 inch centers, one pair at each end of the bowls
3 inch backsplash along the back edge of the top
Work surface at 30 inches, 33 inches overall with the backsplash
18 gauge type 304 stainless steel top, bowls, and back with a 20 gauge type 304 apron
Four legs with bullet feet

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$1,446.36

Four compartment underbar sink for washing, rinsing, and sanitizing glassware

Four 10 x 14 inch bowls, each 10 inches deep with a 1 1/2 inch drain opening

13 inch drain boards on both ends of the bowl run

Two pairs of 1 inch faucet holes on 4 inch centers, one pair at each end of the bowls

3 inch backsplash along the back edge of the top

See full feature list

The Omcan 44603 4 Bowl Underbar Sink

This Omcan underbar sink packs four 10 x 14 inch bowls and two 13 inch drain boards into a 72 inch run, for washing, rinsing, and sanitizing glassware at the bar. Each bowl is 10 inches deep. The work surface sits 30 inches off the floor, the overall height with the 3 inch backsplash is 33 inches, and the unit is 18 3/4 inches front to back. Two separate pairs of faucet holes are punched in the back, one pair at each end of the bowl run. At six feet wide it takes a dedicated stretch of underbar, so measure the run before you commit the space.

Four 10 by 14 Inch Bowls at Underbar Height

Four compartments, each 10 inches wide by 14 inches front to back by 10 inches deep, sit in a row with 2 inches of flat top between them. Each bowl has a 1 1/2 inch drain opening, and the bowls start 2 inches in from the back edge of the top.

Drain Boards on Both Sides of the Bowls

A 13 inch drain board on each end flanks the four bowls, giving glassware a place to land on either side of the wash line. The top has a 3 inch backsplash along the back edge.

Two Pairs of Faucet Holes on 4 Inch Centers

Two separate pairs of 1 inch diameter holes are punched in the back, each pair on 4 inch centers, so the sink can take two faucets, one over each end of the bowl run. No faucet is pictured with the sink.

18-Gauge 304 Stainless Steel Top, Bowls, and Back

The top, bowls, and back are 18-gauge type 304 stainless steel, with a 20-gauge type 304 stainless steel apron facing the room. The sink stands on four legs with bullet feet, set 69 11/16 inches apart across the front and 16 7/16 inches apart side to side, and weighs 85.8 pounds.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Four compartment underbar sink for washing, rinsing, and sanitizing glassware
Four 10 x 14 inch bowls, each 10 inches deep with a 1 1/2 inch drain opening
13 inch drain boards on both ends of the bowl run
Two pairs of 1 inch faucet holes on 4 inch centers, one pair at each end of the bowls
3 inch backsplash along the back edge of the top
Work surface at 30 inches, 33 inches overall with the backsplash
18 gauge type 304 stainless steel top, bowls, and back with a 20 gauge type 304 apron
Four legs with bullet feet

Resources & Downloads

Omcan 44603 Specsheet

See all from Omcan

Specifications

Number of Compartments	4
Bowl Size	10 x 14 in
Bowl Depth	10 in
Bowl Spacing	2 in
Drain Opening Diameter	1-1/2 in
Drain Boards	Two, left and right
Drain Board Width	13 in each
Backsplash Height	3 in
Faucet Holes	4, in two pairs
Faucet Hole Diameter	1 in
Faucet Hole Spacing	4 in centers per pair
Material	18-gauge 304 stainless steel
Apron Material	20-gauge 304 stainless steel
Legs	Four, with bullet feet
Work Surface Height	30 in
Overall Width	72 in
Overall Depth	18-3/4 in
Overall Height	33 in
Front Leg Spread	69-11/16 in
Side Leg Spread	16-7/16 in
Weight	85.8 lb

Manufacturer's Warranty

6 Month

Warranty
