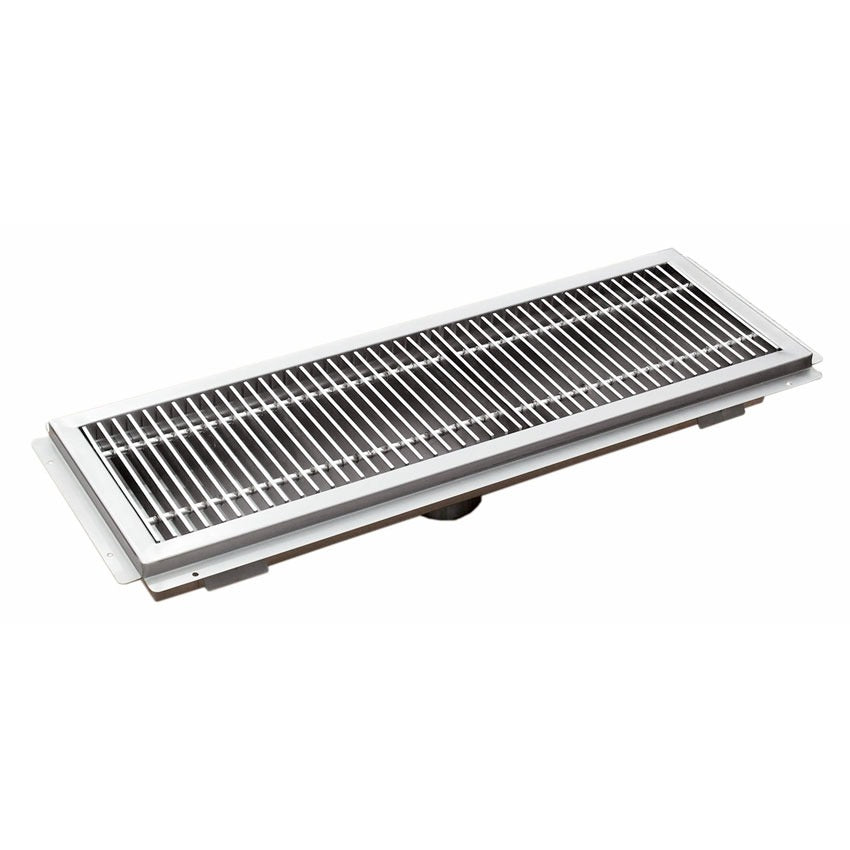

The Omcan 44611 Floor Drain Trough
This Omcan floor trough sets a 12 x 72 inch stainless steel catch basin into your kitchen floor so rinse and cleanup water runs to a drain instead of pooling under your equipment. It is built for commercial spaces that need to drain large amounts of water. The pan is formed from 14-gauge type 304 stainless steel, fits drain pipes up to 4 inches in diameter, and installs quickly. Measure before the floor crew cuts: the pan runs 74-1/8 x 13-13/16 inches over the flange, the pan itself is 4 inches deep, and the drain neck brings total depth to 7 inches.
14-Gauge Type 304 Stainless Steel Pan
The pan is formed from 14-gauge type 304 stainless steel with no secondary finish. Inside, the pan floor measures 70-1/8 x 8-1/2 inches, and the walls rise 4 inches to the flange. A basket strainer sits in the drain opening at the center of the pan floor.
Removable Grating in Two Sections
Grating covers the 68 x 7-5/8 inch opening and lifts out, so you can pull the grate at closing, scrub the pan, and flush debris toward the drain. The grating comes in two sections, each 9-1/2 inches wide and 1 inch high: one section is 36-3/16 inches long and the other is 33-1/8 inches long.
Drain Connections up to 4 Inches in Diameter
The drain neck at the bottom of the pan is 4 inches wide and drops 3 inches below the pan floor, which is what takes the trough to 7 inches deep at the connection point. The trough fits drain pipes up to 4 inches in diameter.
Perimeter Flange and Slotted Brackets
A flange runs the full perimeter around the top of the pan and extends 3/8 inch beyond the pan walls, with a 1/4 inch diameter hole at each corner. Two slotted brackets, each 3 inches wide, sit at the base of the pan 66 inches apart from outside edge to outside edge, 2-1/16 inches in from each end of the pan floor.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Floor trough for commercial spaces that need to drain large amounts of water
-
Collects rinse and cleanup water across a 12 x 72 inch trough and directs it to a single drain point
-
Fits drain pipes up to 4 inches in diameter
-
Removable grating in two sections lifts out for scrub-down and full pan access
-
Formed from 14-gauge type 304 stainless steel with no secondary finish
-
Full-perimeter flange around the top of the pan with a hole at each corner
-
Two slotted brackets at the base of the pan
-
Basket strainer in the drain opening
-
Installs quickly
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Floor trough for commercial spaces that need to drain large amounts of water
Collects rinse and cleanup water across a 12 x 72 inch trough and directs it to a single drain point
Fits drain pipes up to 4 inches in diameter
Removable grating in two sections lifts out for scrub-down and full pan access
Formed from 14-gauge type 304 stainless steel with no secondary finish
The Omcan 44611 Floor Drain Trough
This Omcan floor trough sets a 12 x 72 inch stainless steel catch basin into your kitchen floor so rinse and cleanup water runs to a drain instead of pooling under your equipment. It is built for commercial spaces that need to drain large amounts of water. The pan is formed from 14-gauge type 304 stainless steel, fits drain pipes up to 4 inches in diameter, and installs quickly. Measure before the floor crew cuts: the pan runs 74-1/8 x 13-13/16 inches over the flange, the pan itself is 4 inches deep, and the drain neck brings total depth to 7 inches.
14-Gauge Type 304 Stainless Steel Pan
The pan is formed from 14-gauge type 304 stainless steel with no secondary finish. Inside, the pan floor measures 70-1/8 x 8-1/2 inches, and the walls rise 4 inches to the flange. A basket strainer sits in the drain opening at the center of the pan floor.
Removable Grating in Two Sections
Grating covers the 68 x 7-5/8 inch opening and lifts out, so you can pull the grate at closing, scrub the pan, and flush debris toward the drain. The grating comes in two sections, each 9-1/2 inches wide and 1 inch high: one section is 36-3/16 inches long and the other is 33-1/8 inches long.
Drain Connections up to 4 Inches in Diameter
The drain neck at the bottom of the pan is 4 inches wide and drops 3 inches below the pan floor, which is what takes the trough to 7 inches deep at the connection point. The trough fits drain pipes up to 4 inches in diameter.
Perimeter Flange and Slotted Brackets
A flange runs the full perimeter around the top of the pan and extends 3/8 inch beyond the pan walls, with a 1/4 inch diameter hole at each corner. Two slotted brackets, each 3 inches wide, sit at the base of the pan 66 inches apart from outside edge to outside edge, 2-1/16 inches in from each end of the pan floor.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Floor trough for commercial spaces that need to drain large amounts of water
-
Collects rinse and cleanup water across a 12 x 72 inch trough and directs it to a single drain point
-
Fits drain pipes up to 4 inches in diameter
-
Removable grating in two sections lifts out for scrub-down and full pan access
-
Formed from 14-gauge type 304 stainless steel with no secondary finish
-
Full-perimeter flange around the top of the pan with a hole at each corner
-
Two slotted brackets at the base of the pan
-
Basket strainer in the drain opening
-
Installs quickly
Resources & Downloads
See all from Omcan
Specifications
| Nominal Size | 12 x 72 in |
| Overall Length | 74-1/8 in |
| Overall Width | 13-13/16 in |
| Pan Depth | 4 in |
| Depth with Drain Neck | 7 in |
| Grate Opening | 68 x 7-5/8 in |
| Pan Floor (inside) | 70-1/8 x 8-1/2 in |
| Grating | Removable, two sections |
| Grating Section Sizes | 36-3/16 x 9-1/2 in and 33-1/8 x 9-1/2 in |
| Grating Height | 1 in |
| Drain Strainer | Basket strainer |
| Drain Pipe Compatibility | Up to 4 in diameter |
| Drain Neck Width | 4 in |
| Drain Neck Projection Below Pan Floor | 3 in |
| Flange Overhang Beyond Pan Walls | 3/8 in |
| Flange Corner Holes | 1/4 in diameter, one per corner |
| Mounting Brackets | Two, slotted, 3 in wide |
| Bracket Spacing (outside to outside) | 66 in |
| Material | 14-gauge type 304 stainless steel |
| Finish | No secondary finish |
| Weight | 75 lb |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
