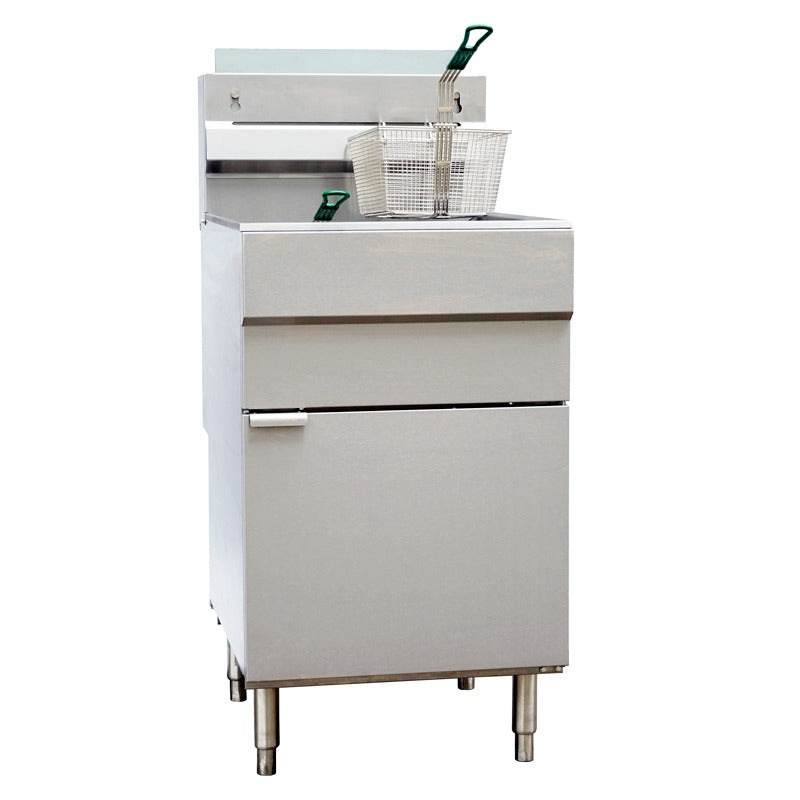

Omcan 46020 21 In. Propane Floor Fryer, 70 Lb Oil Capacity, 150,000 BTU, Two Baskets

SKU46020 BrandOmcan

The Omcan 46020 Commercial gas fryer

This Omcan propane floor fryer, model CE-CN-0032-FP, puts 150,000 BTU under a 70 pound oil tank in a 21 inch wide chassis, built for preparing large volumes of fried food in busy restaurants, fast food businesses, and cafeterias. Five cast iron vertical burners supply the heat, and the thermostat holds your set point anywhere from 200 to 400°F. It burns propane; the gas inlet is a 1/2 inch NPT fitting at the lower rear. Installation is a job for your gas fitter: set the fryer, level it on the 6 inch adjustable legs, make the gas connection, and light the standby pilot. A stainless steel tank cover, item 47453, and swivel and fixed casters, items 66198 and 66199, are available as optional accessories.

Five Cast Iron Vertical Burners, 30,000 BTU Each

The heat comes from five vertical cast iron burner tubes at 30,000 BTU per hour apiece, 150,000 BTU in total. Long lasting baffles mounted in the heat exchange tubes provide maximum heating and combustion efficiency.

Thermostatic Control from 200 to 400°F

The thermostat holds any set point between 200 and 400°F: once the oil reaches the set temperature the gas to the burners shuts off, and the burners cycle on and off to maintain it while the pilot stays lit. A stainless steel standing pilot provides a ready flame whenever heat is required. The integrated gas control valve blocks gas to the main burners until the pilot is established and shuts off all gas automatically if the pilot flame goes out, and a temperature limit shuts off all gas flow if the fryer exceeds 450°F.

70 Pounds of Oil with a Full-Port Drain

The welded 16 gauge stainless steel tank holds 70 pounds (31.8 liters) of oil and has a smooth machine finish for easy cleaning. When the oil is spent, a full-port 1-1/4 inch NPT drain valve at the front empties it quickly into your container.

Stainless Front, Galvanized Sides

The front panel and door are stainless steel, while the sides and back are galvanized steel. Two chromed baskets with plastic-coated handles are included, and a basket hanger at the rear of the tank holds a basket between loads.

Sized for the Fry Station

At 21 inches wide by 30.2 inches deep by 46.5 inches tall on 6 inch adjustable stainless steel legs, it can be installed in a battery of appliances or on its own and levels front-to-back and side-to-side on an uneven floor. Net weight is 172 pounds.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

  1. Propane floor fryer for preparing large volumes of fried food in busy restaurants, fast food businesses, and cafeterias
  2. Five cast iron vertical burner tubes with long lasting baffles for heating and combustion efficiency
  3. Thermostat holds any set point across the frying range and cycles the burners automatically
  4. Stainless steel standing pilot provides a ready flame whenever heat is called for
  5. Gas control valve shuts off all gas if the pilot goes out, and a temperature limit shuts off gas on overheating
  6. Welded 16 gauge stainless steel tank with a smooth machine finish for easy cleaning
  7. Full-port front drain valve empties spent oil quickly
  8. Stainless steel front and door with galvanized sides and back
  9. Two chromed baskets with plastic-coated handles included
  10. Adjustable stainless steel legs level the fryer on uneven kitchen floors
  11. Gas inlet at the lower rear of the fryer

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$2,005.87
  • Propane floor fryer for preparing large volumes of fried food in busy restaurants, fast food businesses, and cafeterias
  • Five cast iron vertical burner tubes with long lasting baffles for heating and combustion efficiency
  • Thermostat holds any set point across the frying range and cycles the burners automatically
  • Stainless steel standing pilot provides a ready flame whenever heat is called for
  • Gas control valve shuts off all gas if the pilot goes out, and a temperature limit shuts off gas on overheating
  • See full feature list

    The Omcan 46020 Commercial gas fryer

    This Omcan propane floor fryer, model CE-CN-0032-FP, puts 150,000 BTU under a 70 pound oil tank in a 21 inch wide chassis, built for preparing large volumes of fried food in busy restaurants, fast food businesses, and cafeterias. Five cast iron vertical burners supply the heat, and the thermostat holds your set point anywhere from 200 to 400°F. It burns propane; the gas inlet is a 1/2 inch NPT fitting at the lower rear. Installation is a job for your gas fitter: set the fryer, level it on the 6 inch adjustable legs, make the gas connection, and light the standby pilot. A stainless steel tank cover, item 47453, and swivel and fixed casters, items 66198 and 66199, are available as optional accessories.

    Five Cast Iron Vertical Burners, 30,000 BTU Each

    The heat comes from five vertical cast iron burner tubes at 30,000 BTU per hour apiece, 150,000 BTU in total. Long lasting baffles mounted in the heat exchange tubes provide maximum heating and combustion efficiency.

    Thermostatic Control from 200 to 400°F

    The thermostat holds any set point between 200 and 400°F: once the oil reaches the set temperature the gas to the burners shuts off, and the burners cycle on and off to maintain it while the pilot stays lit. A stainless steel standing pilot provides a ready flame whenever heat is required. The integrated gas control valve blocks gas to the main burners until the pilot is established and shuts off all gas automatically if the pilot flame goes out, and a temperature limit shuts off all gas flow if the fryer exceeds 450°F.

    70 Pounds of Oil with a Full-Port Drain

    The welded 16 gauge stainless steel tank holds 70 pounds (31.8 liters) of oil and has a smooth machine finish for easy cleaning. When the oil is spent, a full-port 1-1/4 inch NPT drain valve at the front empties it quickly into your container.

    Stainless Front, Galvanized Sides

    The front panel and door are stainless steel, while the sides and back are galvanized steel. Two chromed baskets with plastic-coated handles are included, and a basket hanger at the rear of the tank holds a basket between loads.

    Sized for the Fry Station

    At 21 inches wide by 30.2 inches deep by 46.5 inches tall on 6 inch adjustable stainless steel legs, it can be installed in a battery of appliances or on its own and levels front-to-back and side-to-side on an uneven floor. Net weight is 172 pounds.

    About Omcan

    For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

    Features & Benefits

    1. Propane floor fryer for preparing large volumes of fried food in busy restaurants, fast food businesses, and cafeterias
    2. Five cast iron vertical burner tubes with long lasting baffles for heating and combustion efficiency
    3. Thermostat holds any set point across the frying range and cycles the burners automatically
    4. Stainless steel standing pilot provides a ready flame whenever heat is called for
    5. Gas control valve shuts off all gas if the pilot goes out, and a temperature limit shuts off gas on overheating
    6. Welded 16 gauge stainless steel tank with a smooth machine finish for easy cleaning
    7. Full-port front drain valve empties spent oil quickly
    8. Stainless steel front and door with galvanized sides and back
    9. Two chromed baskets with plastic-coated handles included
    10. Adjustable stainless steel legs level the fryer on uneven kitchen floors
    11. Gas inlet at the lower rear of the fryer

    Resources & Downloads

    See all from Omcan

    Specifications

    ModelCE-CN-0032-FP
    Gas TypePropane
    Total Input150,000 BTU
    Burners5 cast iron vertical, 30,000 BTU each
    Oil Capacity70 lb (31.8 L)
    Temperature Range200 to 400°F (93 to 204°C)
    ControlThermostatic
    High Limit Shutoff450°F (232°C)
    PilotStainless steel standing pilot
    TankWelded 16 gauge stainless steel
    Baskets Included2, chromed with plastic-coated handles
    Gas Connection1/2 in NPT, lower rear
    Propane Supply Pressure10 in W.C.
    Drain ValveFull port, 1-1/4 in NPT, front
    Front Panel and DoorStainless steel
    Sides and BackGalvanized steel
    Legs6 in stainless steel, adjustable
    Overall Width21 in (534 mm)
    Overall Depth30.2 in (767 mm)
    Overall Height46.5 in (1182 mm)
    Net Weight172 lb (78 kg)
    Optional Tank CoverItem 47453
    Optional CastersItems 66198 (swivel), 66199 (fixed)

    Manufacturer's Warranty

    • 1 Year

      Labor

    • 1 Year

      Parts

    Certifications & Approvals

    • CETLUS
      ETL US & Canada
    • ETLSAN
      ETL Sanitation

    The Chef Store is your go-to online destination for commercial food service equipment. We are committed to making your shopping experience seamless and ensuring you have the resources needed to make informed purchasing decisions. We continuously invest in product information development so that you have the knowledge and tools to choose the right equipment for your business. Whether you need help understanding product specifications or recommendations for your specific use case, our experienced team is here to help. We receive ongoing product training from the manufacturers we represent to ensure you are always well-informed and up to date. We pride ourselves on our core expertise: providing answers to your questions, guiding you through the decision-making process, and ultimately helping you make the best equipment purchasing decisions for your business.

    We're here to help. To us, that means no job is too big or too small. Whether you’re a national food chain or a small mom-and-pop shop, our commitment remains the same: ensuring every project is completed to your satisfaction. From the moment you place your order to delivery, we are dedicated to ensuring a seamless, hassle-free process. We continually evaluate and refine our operations, incorporating innovative technology to enhance efficiency and streamline communication with both customers and vendors. Our goal is to minimize delays and ensure your order reaches you as quickly and smoothly as possible.

    We carry a wide range of trusted restaurant equipment brands, and our catalog is always growing. If there's a particular item or brand you don't see on our website, please reach out to us; we’d be happy to help you find it. Not to mention, we leverage manufacturer and buying group relationships to offer our customers great prices and savings. Through these partnerships, freight programs, rebate programs, and more, we are able to purchase equipment at significant discounts and pass along the savings to our customers.







    We're excited to serve you next!

    The Omcan 46020 Commercial gas fryer

    About Gas Fryers

    Commercial gas fryers are essential in most professional kitchens. They heat quickly, recover fast between batches, and usually cost less to run than electric models. Choose countertop or floor models based on your menu and volume. For a small cafe, a compact countertop fryer may be all you need. High-volume restaurants should stick with floor models or industrial gas fryers that can handle nonstop use. Check if your kitchen uses natural gas or propane before you order.

    Common Types and Configurations

    • Gas countertop fryers: Compact units that sit on a prep counter. Good for smaller operations or as a supplemental fryer station.
    • Gas floor fryers: Full size units with higher oil capacity and output. Standard in high-volume restaurant kitchens.
    • Commercial propane deep fryers: Run on propane instead of natural gas. Common in food trucks, outdoor catering, and locations without a natural gas line.
    • Small commercial gas fryers: Compact countertop units for lower volume operations or tight kitchen spaces.
    • Double vat fryers: Two separate vats allow you to fry different items simultaneously without flavor transfer.

    What to Look at Before You Buy

    • Oil capacity: Measured in pounds. Countertop fryers hold 15 to 30 pounds. Floor models range from 40 to 80 pounds or more. Choose a size that matches your volume.
    • BTU output: Higher BTU means faster heat recovery. This matters in high-volume kitchens where the fryer runs nonstop during service.
    • Gas type: Most fryers use natural gas. If you need a commercial gas deep fryer that runs on propane, check that LP conversion is available before you order.
    • Number of vats: Single vat fryers are fine for simple menus. Double vats let you fry different items at once without cross-contamination.
    • Filtration system: Some fryers have built-in oil filtration. This extends oil life and cuts operating costs.
    • Controls: Manual controls are simple and reliable. Digital controls let you program cook times for consistency across staff.
    • Installation: Gas fryers need a licensed installer, proper ventilation, and a commercial hood. Check your gas line size before you order.

    Frequently Asked Questions

    What size commercial gas fryer do I need for my restaurant?

    It depends on your menu and volume. Small gas fryers and countertop units work for low volume or as a backup. If frying is a main part of your menu, go with a floor model or industrial gas fryer. Plan for 1 to 1.5 pounds of oil capacity for every pound of food you fry per hour. If frying is central to your kitchen, size up to avoid bottlenecks.

    What is the difference between a countertop and floor gas fryer?

    Countertop fryers are compact, hold less oil, and fit in tight spaces or low-volume kitchens. Floor fryers are larger, hold more oil, and are built for nonstop, high-volume frying. If your fryer runs all service, choose a floor model for better output and faster recovery.

    How many pounds of oil does a commercial gas fryer hold?

    Countertop fryers hold 15 to 30 pounds of oil. Standard floor models hold 40 to 50 pounds. High-capacity floor fryers can hold 80 pounds or more. More oil keeps temperatures stable during heavy use and cuts recovery time.
