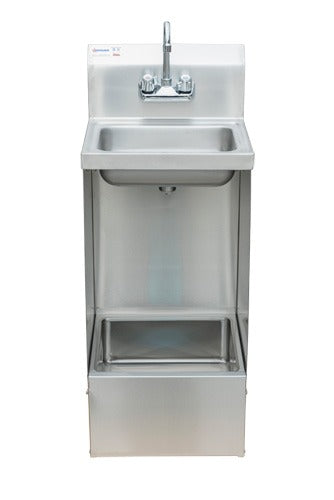

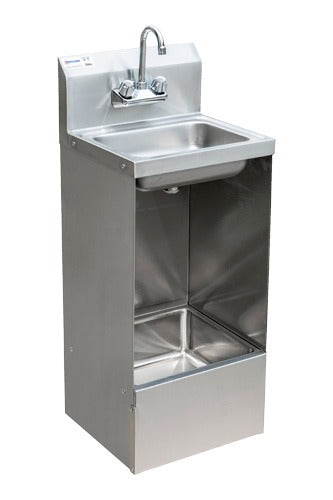

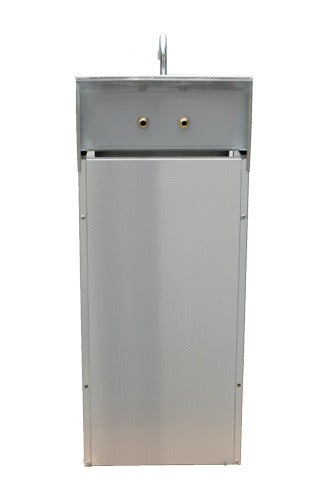

Omcan 47246 17 In. Hand Sink and Floor Mop Sink Combination, Gooseneck Faucet, 8 In. Backsplash

SKU47246 BrandOmcan

The Omcan 47246 Hand sink

This Omcan combination unit stacks a hand sink over a mop sink in one 17 inch wide stainless steel cabinet. Up top, a 14 x 10 inch hand sink bowl with a low lead gooseneck faucet and an 8 inch backsplash handles handwashing; down in the base of the cabinet, a 15 x 13 inch mop basin with its own 3-1/2 inch drain basket is there for mopping your floors and more. The cabinet stands on the floor and comes with wall mount clips. Assembly is required: the side, back and front panels, the mop basin and the hand sink screw together with the 20 screws supplied.

Hand Sink and Mop Sink in One 17 Inch Footprint

The mop basin tucks into the cabinet base under the hand sink, so the mop station and the handwash point share one 17 x 15-5/16 inch footprint against the wall. The rim of the hand sink stands 34 inches off the floor and the backsplash takes the overall height to 42 inches.

18-Gauge Type 304 Stainless Steel Throughout

Hand sink, cabinet body, mop sink, and wall mount clips are all 18-gauge type 304 stainless steel.

Gooseneck Faucet with 5-3/8 Inch Deep Hand Bowl

The included low lead gooseneck faucet mounts on the 8 inch backsplash on 4 inch centers through two 1 inch holes set 3 inches below the top edge, over a bowl that is 5-3/8 inches deep. A 1-1/2 inch drain basket for the hand bowl is included.

Mop Basin in the Cabinet Base

The 15 x 13 inch mop basin is 6 inches deep and sits in the 10 inch tall base section of the cabinet, with a 3-1/2 inch drain basket included.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Hand sink and mop sink combination in one 17 inch wide cabinet
Mop basin in the cabinet base for mopping your floors and more
Hand sink, cabinet body, mop basin and wall mount clips all 18-gauge type 304 stainless steel
Low lead gooseneck faucet included, mounted on 4 inch centers through the backsplash
8 inch backsplash behind the hand sink bowl
1-1/2 inch hand sink drain basket and 3-1/2 inch mop sink drain basket included
Wall mount clips included for the floor-standing cabinet
Assembly required: panels, basin and sink screw together with the supplied screws

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$957.19

Hand sink and mop sink combination in one 17 inch wide cabinet

Mop basin in the cabinet base for mopping your floors and more

Hand sink, cabinet body, mop basin and wall mount clips all 18-gauge type 304 stainless steel

Low lead gooseneck faucet included, mounted on 4 inch centers through the backsplash

8 inch backsplash behind the hand sink bowl

See full feature list

The Omcan 47246 Hand sink

This Omcan combination unit stacks a hand sink over a mop sink in one 17 inch wide stainless steel cabinet. Up top, a 14 x 10 inch hand sink bowl with a low lead gooseneck faucet and an 8 inch backsplash handles handwashing; down in the base of the cabinet, a 15 x 13 inch mop basin with its own 3-1/2 inch drain basket is there for mopping your floors and more. The cabinet stands on the floor and comes with wall mount clips. Assembly is required: the side, back and front panels, the mop basin and the hand sink screw together with the 20 screws supplied.

Hand Sink and Mop Sink in One 17 Inch Footprint

The mop basin tucks into the cabinet base under the hand sink, so the mop station and the handwash point share one 17 x 15-5/16 inch footprint against the wall. The rim of the hand sink stands 34 inches off the floor and the backsplash takes the overall height to 42 inches.

18-Gauge Type 304 Stainless Steel Throughout

Hand sink, cabinet body, mop sink, and wall mount clips are all 18-gauge type 304 stainless steel.

Gooseneck Faucet with 5-3/8 Inch Deep Hand Bowl

The included low lead gooseneck faucet mounts on the 8 inch backsplash on 4 inch centers through two 1 inch holes set 3 inches below the top edge, over a bowl that is 5-3/8 inches deep. A 1-1/2 inch drain basket for the hand bowl is included.

Mop Basin in the Cabinet Base

The 15 x 13 inch mop basin is 6 inches deep and sits in the 10 inch tall base section of the cabinet, with a 3-1/2 inch drain basket included.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Hand sink and mop sink combination in one 17 inch wide cabinet
Mop basin in the cabinet base for mopping your floors and more
Hand sink, cabinet body, mop basin and wall mount clips all 18-gauge type 304 stainless steel
Low lead gooseneck faucet included, mounted on 4 inch centers through the backsplash
8 inch backsplash behind the hand sink bowl
1-1/2 inch hand sink drain basket and 3-1/2 inch mop sink drain basket included
Wall mount clips included for the floor-standing cabinet
Assembly required: panels, basin and sink screw together with the supplied screws

Resources & Downloads

Omcan 47246 Specsheet

See all from Omcan

Specifications

Configuration	Hand sink over mop sink
Model	CHSMS-211734
Hand Sink Bowl	14 x 10 in
Hand Sink Bowl Depth	5-3/8 in
Mop Sink Basin	15 x 13 in
Mop Sink Basin Depth	6 in
Mop Basin Section Height	10 in
Backsplash Height	8 in
Faucet	Low lead gooseneck, included
Faucet Centers	4 in
Faucet Holes	2 x 1 in dia, 3 in below backsplash top
Inlet Size	1 in
Hand Sink Drain Basket	1-1/2 in
Mop Sink Drain Basket	3-1/2 in
Material	18-gauge type 304 stainless steel
Mounting	Floor standing, wall mount clips
Overall Width	17 in
Overall Depth	15-5/16 in
Height to Rim	34 in
Overall Height with Backsplash	42 in
Net Weight	41.4 lb
Assembly	Required, panels screw together

Manufacturer's Warranty

6 Month

Warranty

Certifications & Approvals

NSF Approved
