Omcan 47698 60 In. All Stainless Steel Equipment Stand, 430 Top and Undershelf, Adjustable Feet

SKU47698 BrandOmcan

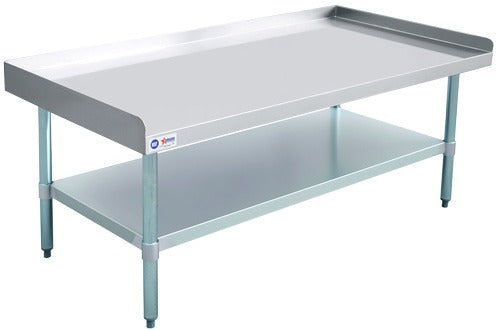

The Omcan 47698 Equipment Stand

This all stainless steel Omcan equipment stand gives a countertop fryer, griddle, or charbroiler a 60 by 30 inch platform at a 24 inch table height. Top and undershelf are both 18-gauge type 430 stainless steel, the four legs and their sockets are stainless as well, and the top is rated to 679 pounds with the undershelf rated to 396 pounds. The stand runs 60 inches wide by 30 deep and sits on adjustable plastic bullet feet with stainless steel cladding.

18-Gauge Type 430 Stainless Steel Top and Undershelf

Both shelves are formed from 18-gauge type 430 stainless steel, and the four legs and the sockets they seat in are stainless steel as well.

2-Inch Upturn on Three Sides

The top turns up 2 inches on the left, rear, and right edges, and the front edge has no upturn.

679-Pound Top and 396-Pound Undershelf Ratings

The top is rated to 679 pounds at a 24 inch table height, and the undershelf is rated separately to 396 pounds. The stand is built with two hat channels.

Knock-Down Assembly on Four Stainless Steel Legs

The stand comes as a top shelf, an undershelf, four stainless steel legs, and sixteen 5/16-24 screws. The legs screw to the undershelf first, then fit into the sockets under the top and are screwed in place.

Adjustable Stainless-Clad Bullet Feet and Optional Extras

The bullet feet are plastic with stainless steel cladding and are adjustable. Accessories for this stand include 5 inch casters, item 14395 with brake and item 47599 without, a 10 by 60 inch wooden adjustable cutting board, item 47568, and a 30 by 60 inch stainless steel undershelf, item 21618.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

  1. Puts a countertop fryer, griddle, or charbroiler on a 24 inch high stand
  2. 18-gauge type 430 stainless steel top and undershelf
  3. Top turns up 2 inches on the left, rear, and right edges, with a flat front edge
  4. Built with two hat channels
  5. Four stainless steel legs seat in stainless steel sockets
  6. Adjustable plastic bullet feet with stainless steel cladding
  7. Assembles from a top shelf, undershelf, four legs, and sixteen 5/16-24 screws
  8. Optional 5 inch casters, item 14395 with brake and item 47599 without
  9. Wooden adjustable cutting board item 47568 and stainless steel undershelf item 21618 listed as accessories

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$483.12
  • Puts a countertop fryer, griddle, or charbroiler on a 24 inch high stand
  • 18-gauge type 430 stainless steel top and undershelf
  • Top turns up 2 inches on the left, rear, and right edges, with a flat front edge
  • Built with two hat channels
  • Four stainless steel legs seat in stainless steel sockets
  • See full feature list

    The Omcan 47698 Equipment Stand

    This all stainless steel Omcan equipment stand gives a countertop fryer, griddle, or charbroiler a 60 by 30 inch platform at a 24 inch table height. Top and undershelf are both 18-gauge type 430 stainless steel, the four legs and their sockets are stainless as well, and the top is rated to 679 pounds with the undershelf rated to 396 pounds. The stand runs 60 inches wide by 30 deep and sits on adjustable plastic bullet feet with stainless steel cladding.

    18-Gauge Type 430 Stainless Steel Top and Undershelf

    Both shelves are formed from 18-gauge type 430 stainless steel, and the four legs and the sockets they seat in are stainless steel as well.

    2-Inch Upturn on Three Sides

    The top turns up 2 inches on the left, rear, and right edges, and the front edge has no upturn.

    679-Pound Top and 396-Pound Undershelf Ratings

    The top is rated to 679 pounds at a 24 inch table height, and the undershelf is rated separately to 396 pounds. The stand is built with two hat channels.

    Knock-Down Assembly on Four Stainless Steel Legs

    The stand comes as a top shelf, an undershelf, four stainless steel legs, and sixteen 5/16-24 screws. The legs screw to the undershelf first, then fit into the sockets under the top and are screwed in place.

    Adjustable Stainless-Clad Bullet Feet and Optional Extras

    The bullet feet are plastic with stainless steel cladding and are adjustable. Accessories for this stand include 5 inch casters, item 14395 with brake and item 47599 without, a 10 by 60 inch wooden adjustable cutting board, item 47568, and a 30 by 60 inch stainless steel undershelf, item 21618.

    About Omcan

    For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

    Features & Benefits

    1. Puts a countertop fryer, griddle, or charbroiler on a 24 inch high stand
    2. 18-gauge type 430 stainless steel top and undershelf
    3. Top turns up 2 inches on the left, rear, and right edges, with a flat front edge
    4. Built with two hat channels
    5. Four stainless steel legs seat in stainless steel sockets
    6. Adjustable plastic bullet feet with stainless steel cladding
    7. Assembles from a top shelf, undershelf, four legs, and sixteen 5/16-24 screws
    8. Optional 5 inch casters, item 14395 with brake and item 47599 without
    9. Wooden adjustable cutting board item 47568 and stainless steel undershelf item 21618 listed as accessories

    See all from Omcan

    Specifications

    Top Size30 x 60 in
    Overall Width60 in
    Overall Depth30 in
    Table Height24 in
    Top Material430 stainless steel
    Top Gauge18 gauge
    Top Upturn2 in on left, rear, right
    Undershelf Material430 stainless steel, 18 gauge
    Hat Channels2
    LegsStainless steel (4), stainless steel sockets
    FeetAdjustable plastic bullet feet, stainless steel clad
    Load Capacity679 lb
    Undershelf Capacity396 lb
    Weight51.5 lb
    Assembly Hardware16 screws, 5/16-24
    Optional CastersItems 14395 (with brake), 47599 (without brake)
    Optional Cutting BoardItem 47568, 10 x 60 in
    Stainless Steel Undershelf AccessoryItem 21618, 30 x 60 in

    Manufacturer's Warranty

    • 6 Month

      Warranty

    Certifications & Approvals

    • NFS
      NSF Approved

    The Chef Store is your go-to online destination for commercial food service equipment. We are committed to making your shopping experience seamless and ensuring you have the resources needed to make informed purchasing decisions. We continuously invest in product information development so that you have the knowledge and tools to choose the right equipment for your business. Whether you need help understanding product specifications or recommendations for your specific use case, our experienced team is here to help. We receive ongoing product training from the manufacturers we represent to ensure you are always well-informed and up to date. We pride ourselves on our core expertise: providing answers to your questions, guiding you through the decision-making process, and ultimately helping you make the best equipment purchasing decisions for your business.

    We're here to help. To us, that means no job is too big or too small. Whether you’re a national food chain or a small mom-and-pop shop, our commitment remains the same: ensuring every project is completed to your satisfaction. From the moment you place your order to delivery, we are dedicated to ensuring a seamless, hassle-free process. We continually evaluate and refine our operations, incorporating innovative technology to enhance efficiency and streamline communication with both customers and vendors. Our goal is to minimize delays and ensure your order reaches you as quickly and smoothly as possible.

    We carry a wide range of trusted restaurant equipment brands, and our catalog is always growing. If there's a particular item or brand you don't see on our website, please reach out to us; we’d be happy to help you find it. Not to mention, we leverage manufacturer and buying group relationships to offer our customers great prices and savings. Through these partnerships, freight programs, rebate programs, and more, we are able to purchase equipment at significant discounts and pass along the savings to our customers.







    We're excited to serve you next!

    The Omcan 47698 Equipment Stand

    About Omcan

    For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

    Product Features

    1. Puts a countertop fryer, griddle, or charbroiler on a 24 inch high stand
    2. 18-gauge type 430 stainless steel top and undershelf
    3. Top turns up 2 inches on the left, rear, and right edges, with a flat front edge
    4. Built with two hat channels
    5. Four stainless steel legs seat in stainless steel sockets
    6. Adjustable plastic bullet feet with stainless steel cladding
    7. Assembles from a top shelf, undershelf, four legs, and sixteen 5/16-24 screws
    8. Optional 5 inch casters, item 14395 with brake and item 47599 without
    9. Wooden adjustable cutting board item 47568 and stainless steel undershelf item 21618 listed as accessories

    See all from Omcan

    Specifications

    Top Size30 x 60 in
    Overall Width60 in
    Overall Depth30 in
    Table Height24 in
    Top Material430 stainless steel
    Top Gauge18 gauge
    Top Upturn2 in on left, rear, right
    Undershelf Material430 stainless steel, 18 gauge
    Hat Channels2
    LegsStainless steel (4), stainless steel sockets
    FeetAdjustable plastic bullet feet, stainless steel clad
    Load Capacity679 lb
    Undershelf Capacity396 lb
    Weight51.5 lb
    Assembly Hardware16 screws, 5/16-24
    Optional CastersItems 14395 (with brake), 47599 (without brake)
    Optional Cutting BoardItem 47568, 10 x 60 in
    Stainless Steel Undershelf AccessoryItem 21618, 30 x 60 in

    Manufacturer's Warranty

      1/2 year

      Warranty
